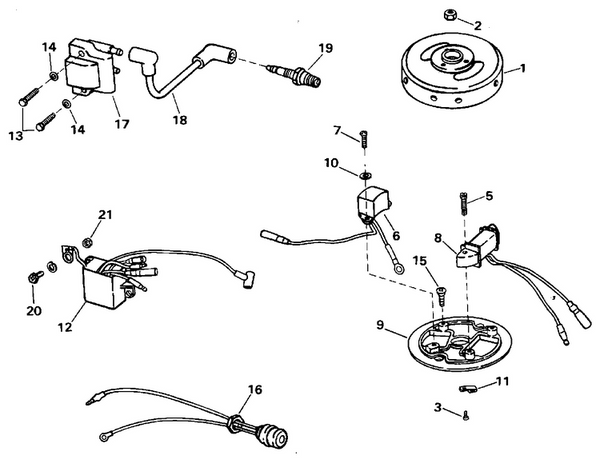

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 3
Product Description: Screw, Clamp
Category: JOHNSON / 1995 / 3.3 / J3ROEOB 1995 / ARMATURE PLATE & COIL ASSEMBLY - 2RE, 2RO, 3RO
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0115718 | Flywheel | |
2 | 0115492 | Nut, flywheel | |
0115022 | 0115022 | Armature plate assy., 2ro | |
0115024 | 0115024 | Armature plate assy., 2r | |
0115025 | 0115025 | Armature plate assy., 3r | |
3 | 0115021 | Screw, clamp | |
5 | 0115751 | Screw, charge coil | |
6 | 0115685 | Sensor, 2r | |
6 | 0115744 | Sensor, 2ro | |
6 | 0115746 | Sensor, 3r | |
7 | 0115555 | Screw, coil mounting | |
8 | 0115678 | Charge coil | |
9 | 0115019 | .armature plate | |
10 | 0115752 | Washer, sensor | |
11 | 0115020 | Clamp, lead assy. | |
12 | 0115742 | Power pack | |
13 | 0115494 | Screw, crankcase to cylinder, short | |
14 | 0115198 | Spring washer, fuel tank screw | |
15 | 0115493 | Screw, armature plate | |
16 | 0114796 | Stop switch nut assy | |
17 | 0582508 | Coil assy | |
18 | 0582365 | H.t. lead assembly, spark plugs to ignition coil | |
19 | 0115206 | Spark plug, l87yc | |
19 | 0437686 | Spark plug, ql87yc | |
20 | 0115226 | Screw, exhaust to cylinder block | |
21 | 0115227 | Nut, power pack |
