EVINRUDE-JOHNSON 121829 23' SPEEDO HOSE C=4

Write a Review
$14.99
SKU:
121829
Schematic Object Key:
115

EVINRUDE-JOHNSON 121829 23' SPEEDO HOSE C=4

$14.99

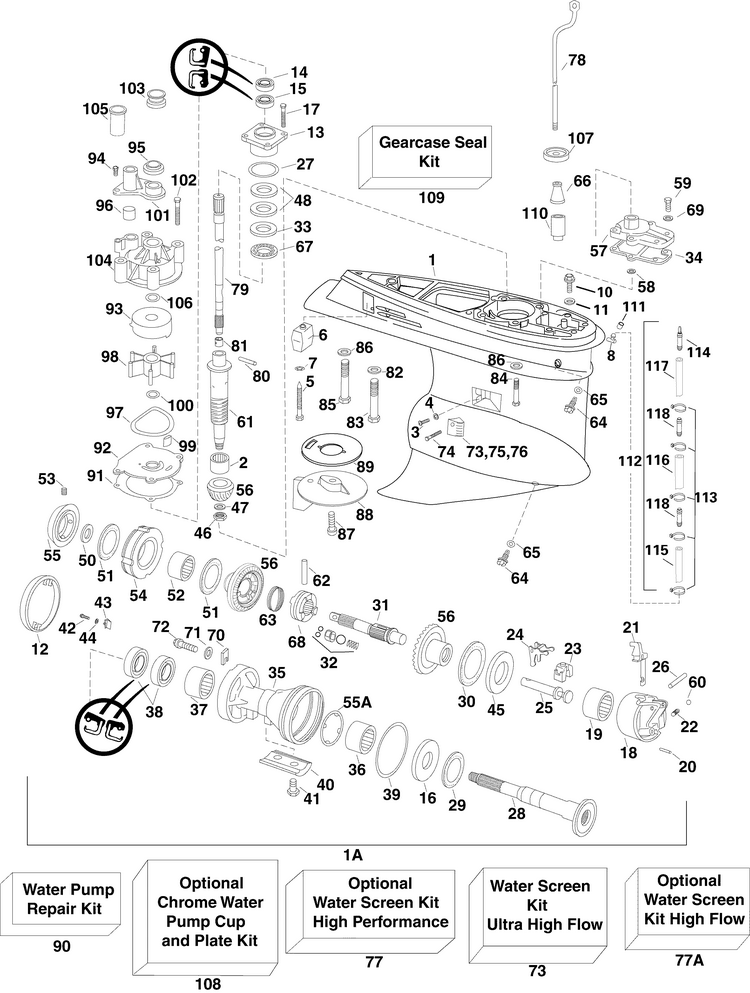

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 121829 Flexible | Cut To Length From P/N 121829

Schematic Object Key : 115

Product Description: Flexible | Cut To Length From P/N 121829

Category: EVINRUDE / 2005 / 225 / E225DCXSOC / GEARCASE CX, CZ MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5001589 Gearcase bearing assy
2 0387817 Bearing, pinion
3 0324852 Retaining screw seal
4 0332584 Washer, seal ring
5 0341219 Screw, anode
6 0436745 Anode
7 0307161 Lock washer, anode
8 0336535 Fitting, pitot tube
10 0341220 Screw, pitot seal
11 0437330 Rondelle joint, tube de pitot contents of gearcase seal kit
12 0346462 Ring, propeller seal
13 0439476 Bearing housing seal
14 0329922 Joint, supérieur contents of gearcase seal kit
15 0329923 Joint, inférieur contents of gearcase seal kit
16 0313447 Thrust washer
17 0317624 Screw, driveshaft hsg
18 5001602 Bearing hsg assy, rev gear
19 0389039 Bearing, forward gear
20 0331880 Pin, housing to gearcase
21 0347378 Detent, shift
22 0911962 Spring
23 0334163 Cradle, shifter
24 0322938 Lever, shift
25 0348484 Shaft, shift
26 0328825 Pin, shift lever
27 0354731 O ring contents of gearcase seal kit This part replaces 0314728.
28 5001578 Propeller shaft
29 0382408 Thrust bearing
30 0389042 Thrust bearing assembly, foward gear
31 5000249 Clutch shaft assy
32 5005096 Kit, clutch shaft retainer
33 0327656 Rondelle de butée, arbre d'entraînement
34 0352165 Gasket, shift rod cover contents of gearcase seal kit
35 5001588 Bearing hsg assy, propshaft
36 0431926 Needle bearing assembly, front
37 0436752 Bearing, propshaft
38 0334950 Seal contents of gearcase seal kit
39 0326849 O ring, propshaft housing contents of gearcase seal kit
40 0431708 Anode, bearing housing
41 0908158 Screw, anode
42 0916070 Screw, wedge
43 0349001 Wedge
44 0345998 Spring washer
45 0327669 Thrust washer, forward gear
46 0314730 Nut, pinion to driveshaft
47 0350038 Washer, pinion nut
48 0323362 Cale, 0,003" 0,07 mm
48 0323361 Cale, 0,004" 0,10 mm
48 0314745 Cale, 0,005" 0,12 mm
50 0338717 Shim, 0.003 in. 0,07mm
50 0338718 Shim, 0.004 in. 0,10mm
50 0338719 Shim, 0.005 in. 0,12mm
51 0385043 Thrust bearing assy.
52 0389039 Bearing, forward gear
53 0338716 Set screw
54 0333885 Housing, bearing
55 0337796 Thrust flange
55A 0350228 Retainer, ring
56 5001585 Gear set, fwd, rev, pinion
57 5006241 Couvercle joint, tige de commande de sens de marche
58 0318372 "o" ring, shift rod contents of gearcase seal kit
59 0302325 Screw, impeller housing
60 0160084 Ball
61 0356900 Driveshaft, lower This part replaces 0347371.
62 0313448 Pin, clutch dog
63 0324369 Spring, clutch dog pin
64 0318544 Screw, fill drain contents of gearcase seal kit
65 0311598 Seal
66 0321122 Spacer, shift rod
67 0387656 Butée, arbre d'entraînement
68 0337774 Shifter, clutch dog
69 0328702 Washer
70 0333957 Languette, de retenue
71 0328743 Rondelle
72 0350271 Screw
73 5006337 Water screen kit, ultra high flow
74 0337061 Screw, water intake screens not shown
75 0350946 Screen, wtr intake port not shown
76 0350945 Screen, wtr intake stbd not shown
77 5005124 Water screen kit, high perf. optional
77A 5005063 Water screen kit, high flow optional
78 0347301 Shift rod 25 in. models
78 0347391 Shift rod 30 in. models
79 5007672 Driveshaft assembly, upper 25 in. models This part replaces 5000623.
79 5007673 Driveshaft assembly, upper 30 in. models This part replaces 5000628.
80 0311538 Roll pin, driveshaft
81 0338504 Retainer, driveshaft
82 0330265 Washer
83 0331998 Screw, gearcase to housing
84 0331999 Screw, gearcase housing
85 0330263 Screw, upper mount retention
86 0330266 Washer, trail lock lever
87 0313715 Screw, cap, hex hd, 7 16 14 x 1
88 0338743 Trim tab
89 0331409 Seal, trim tab
90 5001595 Water pump repair kit
91 0338484 Gasket, imp. hsg. plate contents of gearcase seal kit
92 0338485 Plate, impeller
93 0338486 Coupelle, turbine inox
94 0306643 Screw
95 0320943 Bague, pompe vers carter d'échap.
96 0314008 Bague, tube à eau vers capot
97 0331353 Seal, impeller housing plate.
98 5001593 Impeller assembly
99 0331107 Clavette, turbine
100 0302035 "o" ring, spacer to imp. hsg.
101 0338893 Capot, carter de turbine
102 0302325 Screw, impeller housing
103 0338601 Grommet, sleeve to exh hsg
106 0331188 O ring
107 0321008 Grommet, exh hsg to shift rod
108 0435526 Chrome cup plate kit optional
110 0339346 Extension, shift rod spacer 30 in. models
111 0305749 Cap, nipple optional
112 5006317 Speedometer hose kit
113 0317893 Tie strap
114 0351956 Plug connector
115 0121829 Flexible cut to length from p n 121829
117 0121829 Flexible cut to length from p n 121829
118 0352332 Fitting, hose
