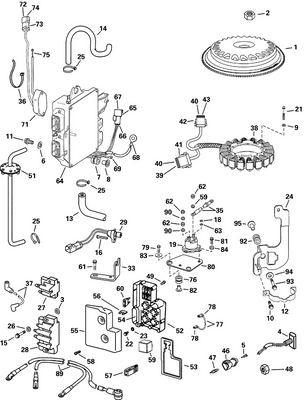

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 57
Product Description: Lock,Wedge - 4 Socket
Category: EVINRUDE / 2006 / 115 / E115FPLSDS / ENGINE ELECTRICAL HARNESS ASSEMBLY
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0127287 | Cale verrouillage | |
2 | 0176295 | Connecteur, 2 broches includes p n 514788 seal. | |
3 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre | |
4 | 0327283 | Lockwasher | |
5 | 0332067 | Screw | |
6 | 0204363 | Terminal, ring | |
7 | 0176529 | Connector, 4 socket includes p n 514769 seal. | |
8 | 0510818 | Terminal, ring | |
9 | 0511829 | Ring terminal | |
10 | 0583898 | Diode | |
11 | 0586224 | Relay assy. | |
12 | 0586397 | 70a relay | |
13 | 0320107 | Tie strap | |
14 | 0512550 | Terminal | |
15 | 0513356 | Connector, 1 socket plug | |
16 | 0513664 | Connector includes p n 911729 o ring. | |
17 | 0513665 | Plug | |
18 | 0513667 | Terminal | |
19 | 0511866 | Connector | |
20 | 0513439 | Terminal | |
21 | 0513773 | Terminal, pin | |
22 | 0514485 | Seal | |
23 | 0503956 | Split convoluted tubing max dia. in. 1 2 cut to length from bulk roll. | This part replaces 3010608. |
24 | 0514768 | Fuse, 20 amp | |
25 | 0514591 | Connector 3 pin includes p n 3010398 seal. | |
26 | 0514679 | Borne, broche | |
27 | 0514680 | Socket | |
28 | 0514681 | Lock wedge, 3 socket | |
29 | 0514682 | Lock wedge, 3 pin | |
30 | 0514683 | Cale verrouillage, fiche 6 broches | |
31 | 0514684 | Lock wedge, 6 pin | |
32 | 0514685 | Connector, 3 socket includes p n 514789 seal. | |
33 | 0514686 | Connecteur, 3 broches | |
34 | 0514687 | Connecteur, fiche 6 broches includes p n 514790 seal. | |
35 | 0514688 | Connector, 6 pin | |
36 | 0514690 | Bouchon, mâle | |
37 | 0514696 | Connector, 2 pin receptacle | |
38 | 0514697 | Lock wedge, 2 pin | |
39 | 0514740 | Connector 24 pin | |
40 | 0514823 | Terminal | |
41 | 0514824 | Connector 4 socket | |
42 | 0514856 | Terminal | |
43 | 0514858 | Bouchon, mâle | |
44 | 0514889 | Cover, capacitor | |
45 | 0581656 | Terminal, socket | |
46 | 3010206 | Capacitor | |
47 | 0600138 | Ring terminal | |
48 | 0513166 | Terminal, receptacle | |
49 | 3010023 | Seal, wire | |
50 | 3010124 | Connector seal, 2 pin plug | |
51 | 3010125 | Terminal, socket | |
52 | 3010126 | Connector, main power relay | |
53 | 3010128 | Terminal, 1 4 in. | |
54 | 3010129 | Terminal, 3 8 in. | |
55 | 0914672 | Plug | |
56 | 0513167 | Terminal, receptacle | |
57 | 0127484 | Lock,wedge 4 socket |
