EVINRUDE-JOHNSON 127592 Key #76

Write a Review
$12.99
SKU:
127592
Schematic Object Key:
80

EVINRUDE-JOHNSON 127592 Key #76

$12.99

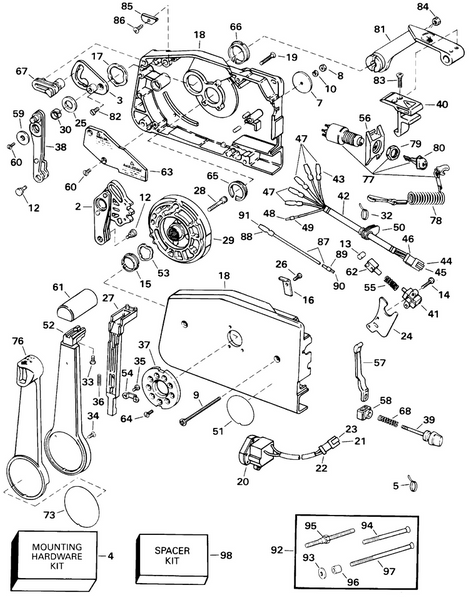

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 127592 Key #76

Schematic Object Key : 80

Product Description: Key #76

Category: JOHNSON / 2001 / 65 / J65WELSIR Commercial, elec start, 20 in shaft 2001 / REMOTE CONTROL - SIDE MOUNT - KEY SWITCH

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5006180 Remote control, surface side mount This part replaces 0176380.
2 0390610 Shift lever assy.
3 0393219 Cam, shift lockout
4 0434059 Mounting hardware kit
5 0320107 Tie strap
7 0318321 Washer, remote control to boat
8 0318349 Nut, mounting screw
9 0336245 Screw, single control, portside
10 0306396 Lock washer, control to boat
12 0323776 Clevis pin, shift throttle lever
13 0321888 Roller, detent, shift thr. plate
14 0324524 Screw, mounting bracket switch
15 0323764 Bushing, cam, hub cover
16 0323769 Retainer plate
17 0325780 Spring washer, cam to housing
18 0176250 Housing cover assy.
19 0336244 Screw, access cover to housing
20 0176360 Horn
21 0514679 Borne, broche
22 0514696 Connector, 2 pin receptacle
23 0514697 Lock wedge, 2 pin
24 0323766 Mounting plate, neutral start switch
25 0321966 Spacer
26 0306643 Screw This part replaces 0324064.
27 0332428 Slide, neutral lock
28 0323775 Screw, handle
29 0397272 Shift throttle plate assy.
30 0323757 Bushing, throttle lever
31 0318277 Screw
32 0318322 Attache câble
33 0318324 Screw, cover mounting
34 0126896 Screw, clamp
35 0323772 Screw, plate
36 0323773 Spring, slide return
37 0127152 Index plate, neutral lock
38 0394032 Throttle lever assy.
39 0391036 Knob friction adj. screw assy.
40 0331050 Latch, fast idle lever
41 0389265 Switch assy., neutral
42 0176395 Cable assy.
43 0126908 Sleeve, socket
44 0514679 Borne, broche
45 0514684 Lock wedge, 6 pin
46 0514688 Connector, 6 pin
47 0910446 Terminal, socket
48 0336846 Borne
49 0512136 Tubing
50 0126943 Grommet
51 0127188 Applique
52 0127055 Handle, remote control
53 0323765 Wave washer, shift thr. hub
54 0323771 Plate, slide control lever
55 0318625 Spring, detent
56 0127227 Latch, remote control box
57 0389267 Friction adjustment lever
58 0325191 Nut, friction lever
59 0318228 Washer, fast idle lever
60 0318277 Screw
61 0336241 Knob, handle
62 0321889 Shoe, detent, shift throttle plate
63 0322012 Separator, levers
64 0318277 Screw
65 0323749 Bushing, shift throttle plate
66 0325779 Bushing, fast idle lever
67 0325781 Lever, shift lockout
68 0325790 Spring, friction adjusting screw
73 0350143 Applique This part replaces 0336247.
76 0336243 Cover, handle
77 5005801 Switch, key lanyard This part replaces 0175974.
78 0176288 Lanyard assy.
79 0127274 Nut
80 0176287 Key set
80 0127279 Key 70
80 0127280 Key 71
80 0127281 Key 72
80 0127591 Key 75
80 0127592 Key 76
80 0127593 Key 77
80 0127595 Key 79
81 0127078 Lever, fast idle
82 0331428 Screw, fast idle lever
83 0331430 Screw, latch
84 0331429 Nut, fast idle lever
85 0330868 Keeper plate
86 0306643 Screw This part replaces 0324064.
87 0176097 Lead assy., neutral start
88 0126908 Sleeve, socket
89 0316198 Heat shrink tubing
90 0336846 Borne
91 0910446 Terminal, socket
92 0390143 Dual remote control installation
93 0318321 Washer, remote control to boat
94 0318631 Screw
95 0318837 Stud
96 0321868 Spacer
97 0325963 Screw
98 0390795 Space kit, remote control mounting
