EVINRUDE-JOHNSON 128257 Pin, Latch

Write a Review
$1.25
SKU:
128257
Schematic Object Key:
21

EVINRUDE-JOHNSON 128257 Pin, Latch

$1.25

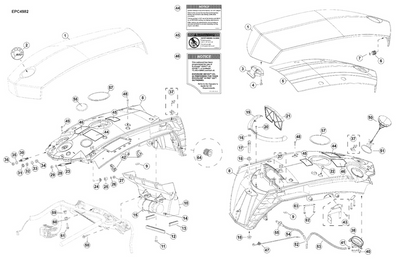

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 128257 Pin, Latch

Schematic Object Key : 21

Product Description: Pin, Latch

Category: EVINRUDE / 2000 / 12 VOLT / P/N 773169 Intruder 36F 2000 / EFC 42 F

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0128236 Motor assembly
2 0128029 Brush spring kit
3 0127916 Brush plate assy.
4 0128031 Motor seal kit
5 0128091 Screw, set This part replaces 0128240.
6 0127928 Motor tube, 48 in.
7 0772775 Propeller
8 0772777 Prop nut kit
9 0127938 Lockwasher
10 0127939 Prop nut
11 0127950 Drive pin
12 0128244 Rf filter
13 0128164 Tie strap
14 0127995 Decal, motor rest This part replaces 0127910.
15 0127980 Base
16 0128020 Drive housing
17 0128021 Sleeve bushing kit
18 0128255 Decal, base assy.
19 0128025 Pivot pad kit
20 0128256 Nut, speed
21 0128257 Pin, latch
22 0128258 Pin, pivot
23 0128259 Rod, release
24 0128260 Spring, release
25 0128261 Lever, release
26 0128262 Spacer, release
27 0128263 Screw
28 0128277 Release knob
29 0127912 Collar, depth
30 0127921 Screw
31 0128111 Mounting hardware
32 0127988 Clamp ring
33 0128045 Cover, control box, upper
34 0128008 Screw
35 0128114 Decal, side
36 0128037 Compass assy.
37 0128166 Screw
38 0128290 Grommet,compass
39 0127994 Shrink tube
40 0128293 Washer, insulator
41 0128294 Strain relief, drive housing
42 0128295 Screw
43 0128296 Screw
44 0128042 Bezel, switch
45 0128041 Switch, auto pilot
46 0128297 Control board
47 0127993 Insulating pad
48 0128036 Cover, port
49 0128032 Cover, starboard
50 0128353 Rest pad
51 0128068 Screw
52 0128069 Nut
53 0127978 Coil cord
54 0128306 Grommet, wire
55 0128016 Cover
56 0128308 Decal, on off
57 0127996 Decal, battery
58 0128311 Rubber bumper kit
59 0127948 Battery cable
60 0128161 Terminal ring
61 0128161 Terminal ring This part replaces 0128279.
62 0128015 Foot pedal assy.
63 0128326 Base, foot pedal
64 0128327 Wear plate
65 0128328 Foot pedal, upper
66 0128329 Foot pedal, lower
67 0128330 Lever, momentary
68 0128331 Spring, long upper
69 0128332 Spring, short upper
70 0128333 Spring, lower pedal
71 0127990 Control board
72 0128299 Knob, speed selector
73 0128334 Housing, speed select
74 0128335 Actuator board
75 0128336 Actuator, momentary
76 0128337 Actuator, steering
77 0127981 Screw
78 0128008 Screw
79 0128338 Decal
80 0128339 Bumper, actuator
81 0127991 Battery meter
82 0127982 Control box, lower
