EVINRUDE-JOHNSON 172308 Helm Assembly

Write a Review
$99.00
SKU:
172308
Schematic Object Key:
172308

EVINRUDE-JOHNSON 172308 Helm Assembly

$99.00

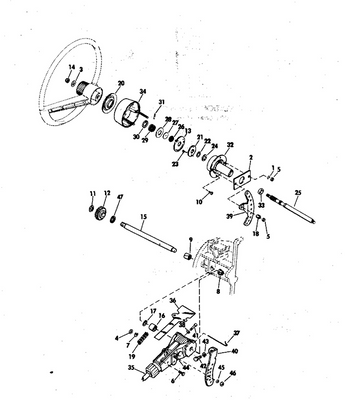

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 172308 Helm Assembly

Schematic Object Key : 172308

Product Description: Helm Assembly

Category: STERN DRIVE / 1975 / 140 / 990226A1 1975 / MECHANICAL RACK & PINION STEERING KIT OPTNL ITEM-ALL MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0172308 0172308 Helm assembly
0172422 0172422 Helm assy, black
1 0171872 Shaft pinion assembly
2 0172307 Bezel assembly
2 0172406 Bezel assembly, black
3 0121581 Lens
4 0121589 Washer, end play
5 0121731 Nut, hook, front
6 0121603 U bolt
7 0120052 . . lockwasher, solenoid screw
8 0309485 Ecrou, vis, rotule
9 0121607 Bumper
10 0121583 Plate, mounting
11 0306422 Nut
12 0309192 Rondelle This part replaces 0120196.
13 0904880 Locknut, steering shaft
15 0172109 Guide bar assembly
16 0121604 Stop
17 0121605 Screw
18 0121598 Gear, drive
19 0121594 Gear, cluster
20 0121597 Gear, output
21 0121586 Spring, coil
22 0121642 Axe, levier pivot
23 0121577 Helm
24 0121582 Pad, wear
25 0121579 Rack
26 0121641 Washer, coupled
27 0121588 Washer, thrust
28 0121592 Bearing, front
29 0121590 Bearing, front
30 0171871 Support plate assembly
31 0121599 Bowed "e" ring
32 0121580 Cover, dust, snap on
33 0121591 Ring, retaining
0121702 0121702 Clip, canoe
34 0122018 Bearing
35 0121732 Spacer
36 0121701 Shoe, brake
37 0121699 Screw, jack
38 0121700 Pulley, brake
39 0172325 Adapter kit, 20 chrome
39 0172403 Adapter kit, 20 black
40 0171909 Terminal kit transom plate assembly
41 0121673 Transom plate, inner
42 0328740 Nut, throttle friction This part replaces 0301472.
43 0328703 Washer, screw hook This part replaces 0304051.
44 0121675 Bolt,hex head
45 0121674 Locknut
46 0121671 Front plate
47 0121670 Back plate
48 0908363 Screw, terminal to plates
49 0121672 Transom plate, outer
50 0171951 Cable terminal assembly
51 0363253 Nut,lock This part replaces 0310702.
52 0306427 Bolt
53 0121669 Seal
54 0171910 Cable assembly, 10' to
0171950 0171950 Cable assembly, 50'
55 0172002 Cable assembly, dual station 22'
55 0172003 Cable assembly, dual station, 10'
55 0172004 Cable assembly, dual station, 12'
55 0172005 Cable assembly, dual station, 14'
55 0172006 Cable assembly, dual station, 16'
55 0172007 Cable assembly, dual station, 18'
55 0172008 Cable assembly, dual station, 20'
56 0172337 Ships wheel kit, 20inch wood
57 0172067 Captain's wheel
58 0172287 Destroyer wheel
59 0980340 Steering wheel, black
60 0121609 Medallion
61 0172424 Helm panel assembly
