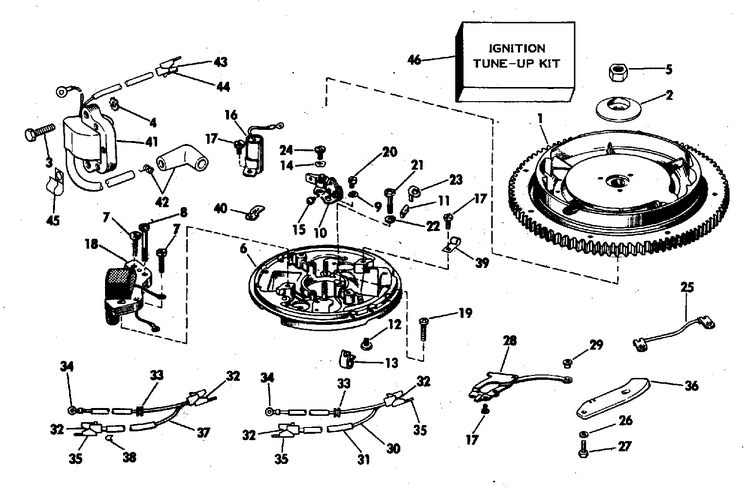

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 46
Product Description: Ignition Tune-Up Kit
Category: JOHNSON / 1976 / 25 / 25RL76E 1976 / MAGNETO
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0581565 | Flywheel assy | |
| 2 | 0311232 | Cover | |
| 3 | 0909533 | Screw, adapter | This part replaces 0309646. |
| 4 | 0306488 | Lock washer, solenoid ground | |
| 5 | 0301988 | Nut | |
| 0581443 | 0581443 | Armature plate assy | |
| 6 | 0581131 | Armature plate | |
| 7 | 0313031 | Screw, lamination | |
| 8 | 0511111 | Screw, anchor block | |
| 9 | 0510391 | Bow wahser,eccentric scr. | |
| 10 | 0580148 | Beaker,assy | |
| 11 | 0581011 | . wick, oiler | |
| 12 | 0510278 | Screw | |
| 13 | 0510371 | Cable clamp | |
| 14 | 0510208 | Bow washer | |
| 15 | 0510194 | Screw | |
| 16 | 0581419 | Condenser | |
| 17 | 0510193 | . screw, clamp cover | |
| 18 | 0581130 | Coil lamination | |
| 19 | 0511110 | Screw, armature plae | |
| 20 | 0510185 | Eccentric screw | |
| 21 | 0310350 | Screw, armature plate | |
| 22 | 0360252 | Washer | This part replaces 0306311. |
| 23 | 0510188 | Clip, oiler | |
| 24 | 0510278 | Screw | |
| 25 | 0580733 | Lead, solenoid ground | |
| 26 | 0300154 | Washer | |
| 27 | 0332226 | Screw, air temperature sensor | This part replaces 0302750. |
| 28 | 0581441 | Link, stop bushing | |
| 29 | 0307841 | Bushing, control lever | |
| 30 | 0581125 | Lead, lower | |
| 31 | 0510998 | Sleeve | |
| 32 | 0310680 | . terminal | |
| 33 | 0303364 | Grommet | |
| 34 | 0510426 | Ring terminal | |
| 35 | 0310572 | ,housing, connector | |
| 36 | 0314842 | Cam, throttle control | |
| 37 | 0581126 | Lead, upper incl items 34 thru 39 | |
| 38 | 0511071 | Clip | |
| 39 | 0314200 | Clamp | |
| 40 | 0510190 | Clamp | |
| 41 | 0581370 | Ignition coil assembly | |
| 42 | 0581027 | Cover terminal assy, spark plug | |
| 43 | 0310680 | . terminal | |
| 44 | 0310572 | ,housing, connector | |
| 45 | 0330151 | Cable clamp, filter | This part replaces 0309322. |
| 46 | 0172523 | Ignition tune up kit |
