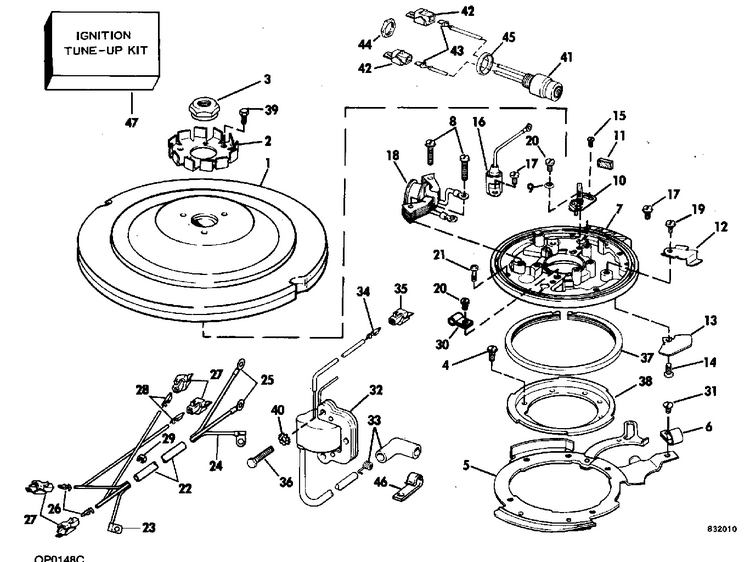

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 47
Product Description: Ignition Tune-Up Kit
Category: JOHNSON / 1983 / 40 / J40RWLCTR 1983 / MAGNETO-RS AND RW MODELS ONLY
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0582615 | Flywheel assy. | |
| 2 | 0202111 | Ratchet | |
| 3 | 0326111 | Nut | This part replaces 0308457. |
| 4 | 0305230 | Screw | |
| 5 | 0392290 | Retainer,cam link assy | |
| 6 | 0316669 | Clamp | This part replaces 0319473. |
| 0581840 | 0581840 | Armature plate assy. | |
| 7 | 0582067 | Armature plate | |
| 8 | 0510397 | Screw | |
| 9 | 0510208 | Bow washer | |
| 10 | 0581207 | Breaker assy | |
| 11 | 0581010 | . oiler wick | |
| 12 | 0318954 | Clamp, ignition coil | |
| 13 | 0318909 | Cover | |
| 14 | 0302812 | Screw, ground terminal | |
| 15 | 0510194 | Screw | |
| 16 | 0581419 | Condenser | |
| 17 | 0307019 | Screw, clamp | |
| 18 | 0581202 | Coil lamination | |
| 19 | 0510193 | . screw, clamp cover | |
| 20 | 0302812 | Screw, ground terminal | |
| 21 | 0511195 | Screw | |
| 0582488 | 0582488 | Lead assy. | |
| 22 | 0320288 | Tubing leads | |
| 23 | 0511286 | Terminal, ground lead | |
| 24 | 0581320 | Lead assy.,ground | |
| 25 | 0510426 | Ring terminal | |
| 26 | 0310680 | . terminal | |
| 27 | 0310572 | ,housing, connector | |
| 28 | 0310523 | ,terminal | |
| 29 | 0511071 | Clip | |
| 30 | 0314200 | Clamp | |
| 31 | 0314492 | . screw, screen to valve hsg. | |
| 32 | 0581786 | Ignition coil assy. | |
| 33 | 0581027 | Cover terminal assy, spark plug | |
| 34 | 0310680 | . terminal | |
| 35 | 0310572 | ,housing, connector | |
| 36 | 0909533 | Screw, adapter | This part replaces 0309646. |
| 37 | 0322435 | Bearing, timer base plate to | |
| 38 | 0322102 | Plate, support | |
| 39 | 0308072 | Screw | |
| 40 | 0328701 | Lockwasher, double ended bolt | This part replaces 0303480. |
| 41 | 0379638 | Shortening switch assy | |
| 42 | 0310572 | ,housing, connector | |
| 43 | 0310680 | . terminal | |
| 44 | 0313779 | Nut, shorting switch | |
| 45 | 0326048 | Moutning ring | |
| 46 | 0310441 | Clamp, small | This part replaces 0310493. |
| 47 | 0172806 | Ignition tune up kit |
