EVINRUDE-JOHNSON 177203 13 7/8 X 13

Write a Review
$215.99
SKU:
177203
Schematic Object Key:
85

EVINRUDE-JOHNSON 177203 13 7/8 X 13

$215.99

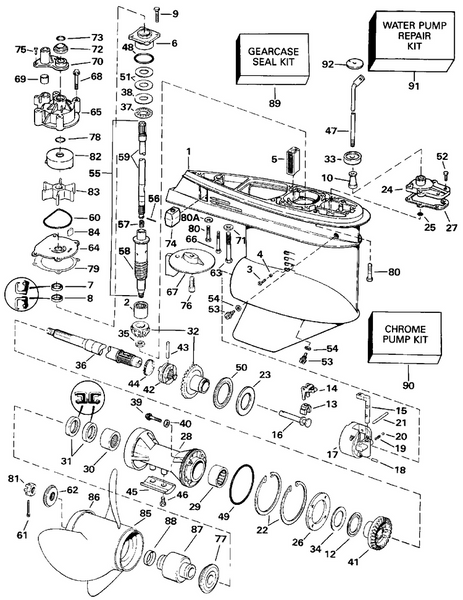

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 177203 13 7/8 X 13

Schematic Object Key : 85

Replacement: This part (177203) replaces 0175013.

Product Description: 13 7/8 X 13

Category: JOHNSON / 1991 / 100 / VJ100SLEIE 1991 / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0398182 0398182 Gearcase assy., complete
0398183 0398183 Gearcase assy., complete
1 0431642 Gearcase bearing assy.
2 0384195 Bearing, pinion
3 0324852 Retaining screw seal
4 0332584 Washer, seal ring
5 0323466 . screen, water intake
6 0439476 Bearing housing seal This part replaces 0397493.
7 0329922 Joint, supérieur
8 0329923 Joint, inférieur
9 0317624 Screw, driveshaft hsg
10 0321122 Spacer, shift rod
11 0431708 Anode, bearing housing
12 0382408 Thrust bearing
13 0334163 Cradle, shifter
14 0324037 Lever, shift
15 0915954 Detent, shifter This part replaces 0323946.
16 0322941 Arbre, commande de sens de marche
17 0391365 Bearing housing assembly.
18 0331880 Pin, housing to gearcase
19 0911962 Spring
20 0327345 Ball, detent
21 0320145 Pin, lever to housing
22 0313445 Retaining ring
23 0324766 Thrust washer, forward gear
24 5006241 Couvercle joint, tige de commande de sens de marche This part replaces 0388618.
25 0318372 "o" ring, shift rod
26 0314732 ,retainer plate, brg hsg
27 0352165 Gasket, shift rod cover This part replaces 0324670.
28 0397087 Bearing housing seal assy.
29 0382407 Bearing assy, forward gear
30 0379504 Propshaft bearing assembly
31 0330137 Seal
32 0436746 Gear pinion assy. This part replaces 0434063.
33 0321008 Grommet, exh hsg to shift rod
34 0314731 Rondelle de butée, engrenage de marche arrière
35 0314730 Nut, pinion to driveshaft
36 0436888 Propeller shaft assy. This part replaces 0387818.
37 0387656 Butée, arbre d'entraînement
38 0327656 Rondelle de butée, arbre d'entraînement
39 0316563 Screw
40 0332583 Screw seal assy.
41 0345992 Engrenage, marche arrière This part replaces 0333077.
42 0323664 Commande de sens de marche, crabot d'embrayage
43 0313448 Pin, clutch dog
44 0324369 Spring, clutch dog pin
46 0908158 Screw, anode
47 0332120 Shift rod
47 0332121 Shift rod
48 0354731 O ring This part replaces 0314728.
49 0313446 "o" riing, brg. hsg
50 0385043 Thrust bearing assy.
51 0323362 Cale, 0,003" 0,07 mm
51 0323361 Cale, 0,004" 0,10 mm
51 0314745 Cale, 0,005" 0,12 mm
52 0302325 Screw, impeller housing
53 0318544 Screw, fill drain
54 0333572 O ring
55 0434010 Driveshaft assy.
55 0434011 Driveshaft assy.
56 0311538 Roll pin, driveshaft
57 0335684 Driveshaft spring
58 0335722 Driveshaft, lower
59 0335900 Driveshaft, upper
59 0335722 Driveshaft, lower
60 0331353 Seal, impeller housing plate.
61 0314502 Cotter pin
62 0315810 Spacer, impeller nut
63 0331998 Screw, gearcase to housing
64 0435027 Cup plate This part replaces 0330380.
64 0435526 Chrome cup plate kit This part replaces 0330383.
65 0435485 Impeller housing assy. This part replaces 0395040.
66 0328096 Screw
66 0322000 Screw, starter motor
67 0338742 Compensateur de dérive This part replaces 0327640.
68 0335221 Screw, cylinder to bracket This part replaces 0328715.
69 0314008 Bague, tube à eau vers capot
70 0338893 Capot, carter de turbine This part replaces 0321159.
71 0330265 Washer
72 0320943 Bague, pompe vers carter d'échap.
73 0310585 "o" ring, driveshaft to crankcase
74 0327482 Block, gearcase
74 0436745 Anode This part replaces 0393023.
75 0306643 Screw
76 0313715 Screw, cap, hex hd, 7 16 14 x 1
77 0127084 Thrust bushing This part replaces 0318841.
78 0332000 Seal ring
79 0338484 Gasket, imp. hsg. plate This part replaces 0324701.
80 0331999 Screw, gearcase housing
80A 0303886 Lockwasher
81 0314503 Nut, impeller
82 0435027 Cup plate This part replaces 0330379.
82 0435526 Chrome cup plate kit This part replaces 0330384.
83 5001593 Impeller assembly This part replaces 0395864.
84 0331107 Clavette, turbine
85 0383160 Propeller 14 x 19
85 0382761 Propeller ,14 x 11
85 0765181 Propeller This part replaces 0391668.
85 0765182 Propeller w models This part replaces 0391198.
85 0765183 Propeller, wdel models This part replaces 0391199.
85 0390896 Propeller, 13 19 al.
85 0389788 Propeller, 12 3 4 x 21
85 0390895 12 3 4 x 23
85 0389792 Propeller 14 x 11 sst
85 0392261 Propeller 13 3 4 x 13 sst
85 0177203 13 7 8 x 13 This part replaces 0175013.
85 0389949 Propeller, 12 3 4 x 15 sst
85 0389948 Propeller, 12 3 4 x 17 sst
85 0389510 Propeller, 13 19 sst
85 0389512 Pro, 12 3 4 x 21 sst cupped
85 0177202 13 7 8 x 11 This part replaces 0175294.
85 0394758 Propeller 13 1 2 x 21 sst ii
85 0394759 Propeller, 13 1 2 x 20 omc raker
85 0394760 Propeller, 13 1 2 x 22 omc raker
85 0394755 Propeller, 13 1 2 x 24 omc raker
86 0332393 Converging ring
87 0384977 Bushing assy, prop, 3 blade
88 0313926 Propeller hub sleeve
89 0435526 Chrome cup plate kit This part replaces 0395059.
90 5006373 Gearcase seal kit This part replaces 0396354.
91 5001594 Water pump repair kit This part replaces 0395060.
91 5001594 Water pump repair kit This part replaces 0395062.
92 0322302 Seal, adapter to frame
