EVINRUDE-JOHNSON 202026 Washer, Rod

Write a Review
$9.46
SKU:
202026
Schematic Object Key:
16

EVINRUDE-JOHNSON 202026 Washer, Rod

$9.46

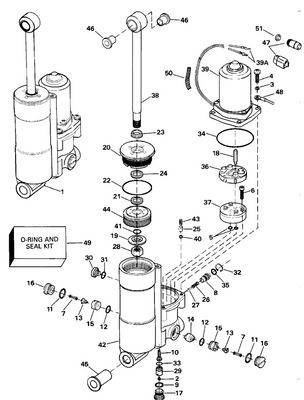

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 202026 Washer, Rod

Schematic Object Key : 16

Product Description: Washer, Rod

Category: EVINRUDE / 1986 / 90 / E90TLCDC 1986 / CYLINDER & CRANKCASE - 110TLCDF MODELS ONLY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0431658 Cyl c'case assy., 115 models This part replaces 0397208.
2 0304178 Pin, dowel
3 0318562 Washer, stud
4 0321640 Stud
5 0310507 Plug
6 0314616 Stud
7 0308752 Screw, main brg. upper lower
8 0318907 Screw, c'case to cyl top
9 0305070 Axe, carter moteur vers bloc
10 0322986 Stud, throttle lever
11 0319592 Scerw,cyl.to c'case,center
12 0322411 Deflector, water pass
13 0300646 Screw, clamp, fuel filter
14 0306778 Ecrew,exhaust cover,1 3 8"long
15 0328722 Screw, spark adjust
16 0202026 Washer, rod
17 0552906 Cotter pin, upper pivot
18 0307133 Gasket
19 0323045 Cover, by pass
20 0310532 Cover by pass
21 0328741 Nut, input stud
22 0321886 Elbow
23 0328701 Lockwasher, double ended bolt
24 0376349 Lead, ground
25 0306049 Screw
26 0511514 Clamp, cable This part replaces 0317883.
27 0318358 Gasket, cyl. head
28 0329539 Cylinder head, star.
29 0318335 Cover, cylinder head
30 0318333 Cover, cylinder head
31 0330151 Cable clamp, filter This part replaces 0309322.
32 0306409 Screw, anchor block lower
33 0307267 Screw
34 0387239 Spark plug, ch 1ul 77v, 140
35 0386686 Switch temp
36 0303806 Tubing
37 0340975 Hose, cylinder head, stbd. This part replaces 0321724.
38 0340976 Hose, cylinder head, port This part replaces 0321723.
39 0324825 Clamp, cylinder head hose
40 0329538 Cylinder head, port
41 0330151 Cable clamp, filter
42 0322858 Gasket
43 0326365 Clip, spring
44 0310379 Screw
45 0326642 Lever, shift rod
46 0317955 Gasket, exh. cover
47 0908159 Screw, bearing clamp This part replaces 0328728.
48 0331025 Screw This part replaces 0308751.
49 0323468 Exhaust manifold
50 0327721 Hose, elbow to tee
51 0390015 Cover, exh. manifold
52 0323469 Gasket, exh. manifold to cyl. 140 hp
53 0308728 Screw
53 0309905 Scew,cylinder head
54 0315077 Locknut, 3 8 24 ss This part replaces 0320396.
55 0312708 Bushing
56 0330145 Cotter pin
57 0302290 Washer This part replaces 0328736.
58 0323089 Shift lever
59 0329241 Washer This part replaces 0305981.
60 0315101 Bushing, link to lever
61 0323264 Pin
62 0328064 Nut
63 0395475 Link pin assy
64 0316602 Screw, letdown plate
65 0314125 Bushing, shift handle linkage rod
66 0327506 Pin, lever to rod
67 0317972 Acrew,exh manf to cyl.,4 1 4" long
68 0315104 Retainer, 3 ing. lead
69 0323626 Screw
70 0328735 Washer, screw, ball joint
71 0303459 Ecrew,exhaust cover,1 1 2"long
72 0330179 Washer
73 0308993 Ressort, friction d'accélération
74 0203688 Nut This part replaces 0328710.
75 0328699 Lever, spark control
76 0318561 Lever, spark adjust
77 0302290 Washer
78 0395310 Throttle cam assy.
79 0310928 Clamp, steering bracket
80 0305650 Cotter pin
81 0310524 Yoke
82 0391936 Lever, throttle
83 0318660 Bumper, screw, throttle stop
84 0315081 Bushing, shoulder screw
85 0310439 Clamp, battery cable
86 0318560 Bushing, spark lever
87 0322987 Washer, throttle lever
88 0314094 Link, throttle lever to cam
89 0330159 Rod, throttle lever to cam
90 0314136 Screw, shift lever to bracket
91 0314137 Nylon bushing
92 0328733 Rondelle, ressort
93 0328734 Bow washer
94 0328702 Washer
95 0319217 Pin,clevis to shift lock
96 0319218 Support bnrace,stbd.
97 0313581 Bumber, mount screw
98 0328740 Nut, throttle friction
99 0395448 Ball socket assy
100 0328737 Washer
101 0330160 Rod, spark advance
103 0320397 Washer in tiller kit .390 i.d. x .750 o.d. x 0.120 in
104 0330143 Stud, ground
105 0314416 Bumber, advance screw
106 0327227 Cap, nipple
107 0392000 Exhaust filler block replacement kit
