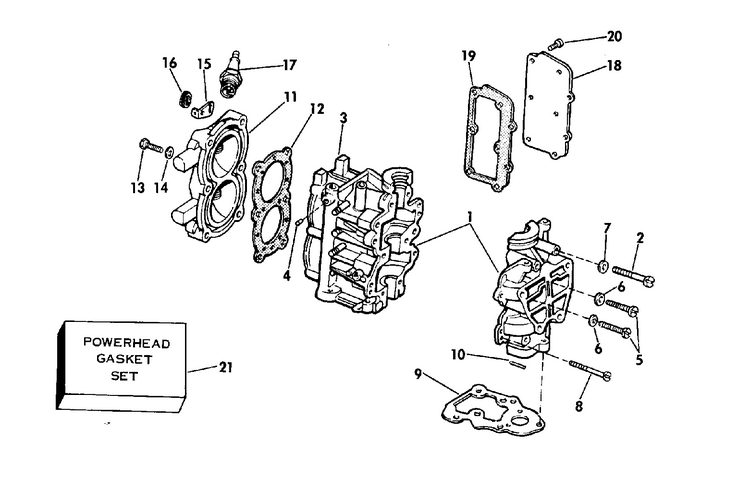

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 19
Product Description: Gasket, Cover Plate
Category: JOHNSON / 1975 / 4 / 4R75A 1975 / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0385150 | Cylinder c'case assy | |
2 | 0328699 | Lever, spark control | This part replaces 0132942. |
3 | 0304067 | Plug, large | |
4 | 0307588 | Plug, small | |
5 | 0302431 | Screw, center | |
6 | 0300399 | Washer | |
7 | 0316676 | Lockwasher, ground | |
8 | 0306408 | Screw | |
9 | 0314850 | Gasket | |
10 | 0300402 | Taper pin | |
11 | 0319336 | Cylinder head | |
12 | 0203130 | Gasket, cylinder head | |
13 | 0303398 | Screw, lower | This part replaces 0302030. |
14 | 0329241 | Washer | This part replaces 0306482. |
15 | 0300455 | Anchor, ign lead | |
16 | 0300454 | Grommer, ignition lead | |
17 | 0593871 | Spark plub, champion j6j | |
17 | 0384734 | Spark plug, ac m44c | |
18 | 0323263 | Plate, exh cover | This part replaces 0203172. |
19 | 0203171 | Gasket, cover plate | |
20 | 0332226 | Screw, air temperature sensor | This part replaces 0302750. |
21 | 0384172 | Gasket set, less cylinder head gasket |
