EVINRUDE-JOHNSON 206409 Pivot Screw

Write a Review
$48.49
SKU:
206409
Schematic Object Key:
72

EVINRUDE-JOHNSON 206409 Pivot Screw

$48.49

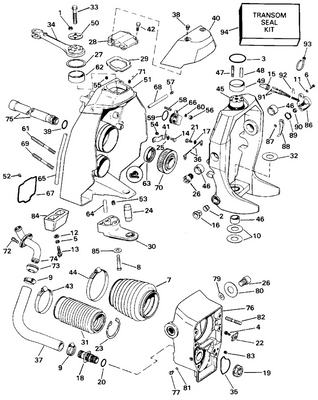

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 206409 Pivot Screw

Schematic Object Key : 72

Product Description: Pivot Screw

Category: JOHNSON / 1984 / 55 / J55RWLCRD 1984 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0392634 0392634 Cylinder c'case assy.
1 0304178 Pin, dowel
2 0314616 Stud
3 0305070 Axe, carter moteur vers bloc
4 0308747 Screw, crankcase to cylinder
5 0308752 Screw, main brg. upper lower
6 0308742 Screw, crankcase to cylinder
7 0326952 Nipple, primer
8 0303630 Washer
9 0306470 Lock washer
10 0328694 Screw, bracket This part replaces 0321527.
11 0307267 Screw
12 5005440 Thermostat This part replaces 0378065.
13 0310058 Gasket, thermostat
14 0316132 Gormmet, valve
15 0335493 Valve, pressure relief This part replaces 0317653.
16 0315626 Spring, valve
17 0315538 Gasket, cover to head
18 0322898 Cover, cylinder head
19 0323359 Screw, head cover
20 0386941 Spark plub,champion l77j4
20 0502180 Spark plug, champion ql77jc4 This part replaces 0387633.
21 0376349 Lead, ground
22 0310439 Clamp, battery cable
23 0310525 Pin, clevis
24 0308753 Screw, fram to c'case
25 0310439 Clamp, battery cable
26 0325211 Gasket
27 0437506 Cover plug assy, water passage This part replaces 0325308.
28 0335020 Screw, bracket to block This part replaces 0318139.
29 0330151 Cable clamp, filter This part replaces 0309322.
30 0317714 Frame, crank case
31 0316045 Connector, shift rod
32 0316037 Screw, cover to gearcase This part replaces 0328721.
33 0328708 Washer, injector screw
34 0330234 Bow washer
35 0310439 Clamp, battery cable
36 0311015 Bushing, pawl
37 0328703 Washer, screw hook
38 0328702 Washer
39 0316355 But, carburetor mounting This part replaces 0315204.
40 0908398 Washer
41 0329673 Lever, spark advance
42 0308532 Bague, levier de verrouillage
43 0329679 Sleeve, advance lever
44 0439834 Lever, throttle control This part replaces 0329674.
45 0130524 Screw, frame to c case
46 0302290 Washer
47 0511421 Washer, air silencer
48 0329702 Throttle cam This part replaces 0319835.
49 0326023 Lift bracket
50 0319253 Fitting, c c lubrication
51 0395544 Shift lever This part replaces 0391284.
52 0307920 Screw
53 0317893 Tie strap
54 0329677 Screw, roller
55 0328702 Washer
56 0305650 Cotter pin
57 0314125 Bushing, shift handle linkage rod
58 0328737 Washer
59 0324812 Screw, exh. hsg. to powerhead
60 0326644 Lever, shift rod
61 0395448 Ball socket assy This part replaces 0313700.
62 0395448 Ball socket assy This part replaces 0313703.
63 0335359 Gasket, cylinder head This part replaces 0327795.
64 0325603 Cylinder head
65 0312708 Bushing
66 0329682 Rod, lever to cam
67 0321886 Elbow
68 0306488 Lock washer, solenoid ground
69 0432572 Roller sleeve assy This part replaces 0329676.
70 0324814 Ecrew,exhaust cover,1 1 2"long
71 0552421 Screw, rectifier mounting
72 0206409 Pivot screw
73 0329680 Rod, lever to cam
74 0327589 Pin, shift lever to shift rod
75 0127386 Rondelle This part replaces 0303913.
76 0308532 Bague, levier de verrouillage
77 0327721 Hose, elbow to tee
78 0121470 Locknut, hook bolt to cross bar
79 0328702 Washer
80 0303887 Washeer, pin to swivel bracket
81 0127386 Rondelle This part replaces 0303913.
82 0305650 Cotter pin
83 0328739 Rondelle entre ancrage et support This part replaces 0313396.
84 0309247 Ressort
85 0313607 Lube fitting
86 0314125 Bushing, shift handle linkage rod
87 0315081 Bushing, shoulder screw
88 0318197 Pin, link
89 0318205 Shoulder screw, shift lever
90 0318626 Ball
91 0320302 Bushing, laink to lever
92 0325471 Shift rod
93 0330202 Shift lever
94 0330337 Yoke, shift rod
95 0327178 Guide
96 0327400 Rondelle, poignée de commande de sens de marche
97 0330234 Bow washer
98 0439083 Powerhead gasket set This part replaces 0393433.
