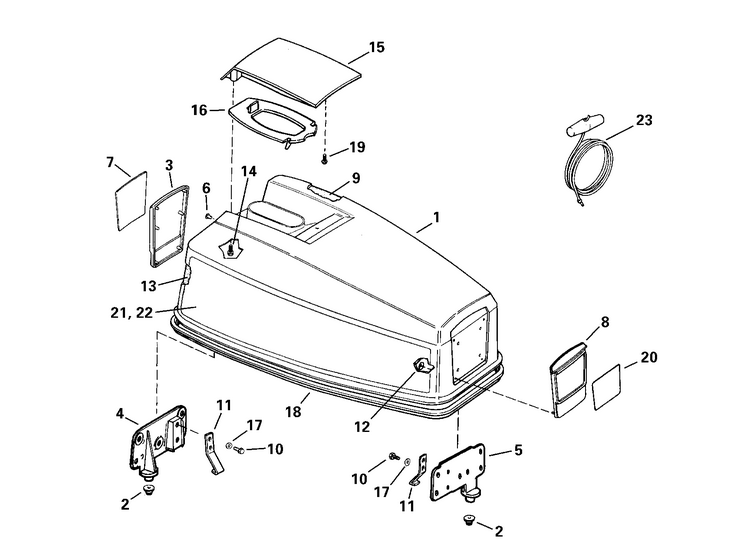

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 15
Product Description: Handle, Tilt
Category: JOHNSON / 2000 / 50 / BJ50ELSSA Elec. Start, 20 IN. shaft, N/A USA 2000 / ENGINE COVER - ELECTRIC START ONLY
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5001186 | Engine cover assy. | |
2 | 0334432 | Bumper | |
3 | 0335042 | Frame, rear | |
4 | 0333939 | Locating bracket, rear | |
5 | 0333938 | Locating bracket, front | |
6 | 0326948 | Rivet, locating brackets | |
7 | 0346681 | Plate, rear | |
7 | 0346685 | Plate, rear | |
8 | 0335033 | Frame, front | |
9 | 0341531 | Sound blanket, top | |
10 | 0908158 | Screw, anode | |
11 | 0323176 | Hook, bracket | |
12 | 0317223 | Fasteners, push on | |
13 | 0341532 | Sound blanket, side | |
14 | 0323228 | Screw | |
15 | 0208181 | Handle, tilt | |
16 | 0210296 | Baffle, tilt handle | |
17 | 0313079 | Washer, hook to bracket | |
18 | 0211111 | Seal, cover, upper | |
19 | 0323229 | Screw, tilt handle, front | |
20 | 0346684 | Plate, front | |
21 | 0346683 | Decal, starboard | |
22 | 0346682 | Decal, port | |
23 | 0378347 | Rope ay, starter |
