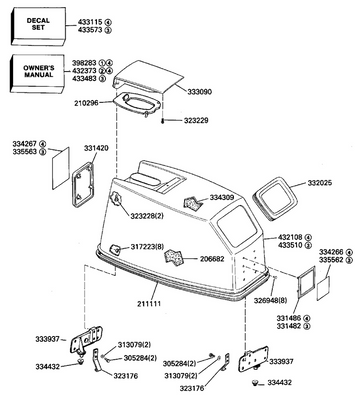

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 19
Product Description: Applique, Engine Cover, Rear, 90 Only
Category: JOHNSON / 1985 / 115 / J115TLCOS 1985 / ENGINE COVER - EVINRUDE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 0282349 | 0282349 | Engine cover assy., 90 only | |
| 0282900 | 0282900 | Engine cover assy., 115 only | |
| 1 | 0306407 | Locckwasher,cover latch | |
| 2 | 0206520 | Air inlet baffle | |
| 3 | 0208208 | Tilt handle | |
| 4 | 0329548 | Seal | This part replaces 0209504. |
| 5 | 0389971 | Locating barcket, front | |
| 6 | 0394976 | Locating bracket, rear | This part replaces 0389972. |
| 7 | 0324898 | Bumper | |
| 8 | 0341534 | Sound blanket, side | This part replaces 0208509. |
| 9 | 0208510 | Sound blanket, top | |
| 10 | 0323937 | Screw | |
| 11 | 0323175 | Hook , motor cover, front | |
| 12 | 0204476 | .fastener | |
| 13 | 0209520 | Applique, front | |
| 14 | 0319137 | ,screw, hoop | |
| 15 | 0323229 | Screw, tilt handle, front | |
| 15 | 0323228 | Screw | |
| 16 | 0317223 | Fasteners, push on | |
| 17 | 0326948 | Rivet, locating brackets | |
| 18 | 0315984 | Seal , baffle to motor cover | This part replaces 0209507. |
| 19 | 0210214 | Applique, engine cover, rear, 90 only | |
| 19 | 0210541 | Applique, engine cover, rear, 115 only | |
| 20 | 0323176 | Hook, bracket | |
| 21 | 0210086 | Plate, applique front | |
| 22 | 0330157 | Clamp | |
| 23 | 0323170 | Hook front and stbd., rear | |
| 24 | 0323428 | Grommet | |
| 25 | 0394313 | Connector ay,fuel | |
| 26 | 0302325 | Screw, impeller housing | |
| 27 | 0318849 | Clamp, instrument cable | |
| 28 | 0908159 | Screw, bearing clamp | This part replaces 0328728. |
| 29 | 0312241 | Screw, electrical bracket | |
| 30 | 0328703 | Washer, screw hook | |
| 31 | 0383685 | Latch handel assy., rear | |
| 32 | 0333739 | Retainer, fuel hose to cover | This part replaces 0329610. |
| 33 | 0303398 | Screw, lower | |
| 34 | 0328700 | Washer | |
| 35 | 0328695 | Clamp, engine cable | |
| 36 | 0316354 | Engine cover support grommet | |
| 37 | 0302406 | Sleeve | |
| 38 | 0303398 | Screw, lower | |
| 39 | 0310539 | Screw, clamp choke solenoid | |
| 40 | 0315391 | Cover | |
| 41 | 0323169 | Hook, lower rear port | |
| 42 | 0321885 | Nipple | |
| 43 | 0328358 | Cover assy. air entrance | |
| 44 | 0308532 | Bague, levier de verrouillage | |
| 45 | 0383641 | Latch handel assy., front | |
| 46 | 0313219 | Washer | |
| 47 | 0328695 | Clamp, engine cable | |
| 48 | 0328694 | Screw, bracket | |
| 49 | 0378347 | Rope ay, starter | |
| 50 | 0434289 | Cover, lower | This part replaces 0394336. |
| 51 | 0318258 | Seal cover | |
| 52 | 0331533 | Seal | |
| 0282444 | 0282444 | Decal set | |
| 0210540 | 0210540 | Owner's manual |
