EVINRUDE-JOHNSON 216186 Decal, Evinrude

Write a Review
$5.00
SKU:
216186
Schematic Object Key:
NS

EVINRUDE-JOHNSON 216186 Decal, Evinrude

$5.00

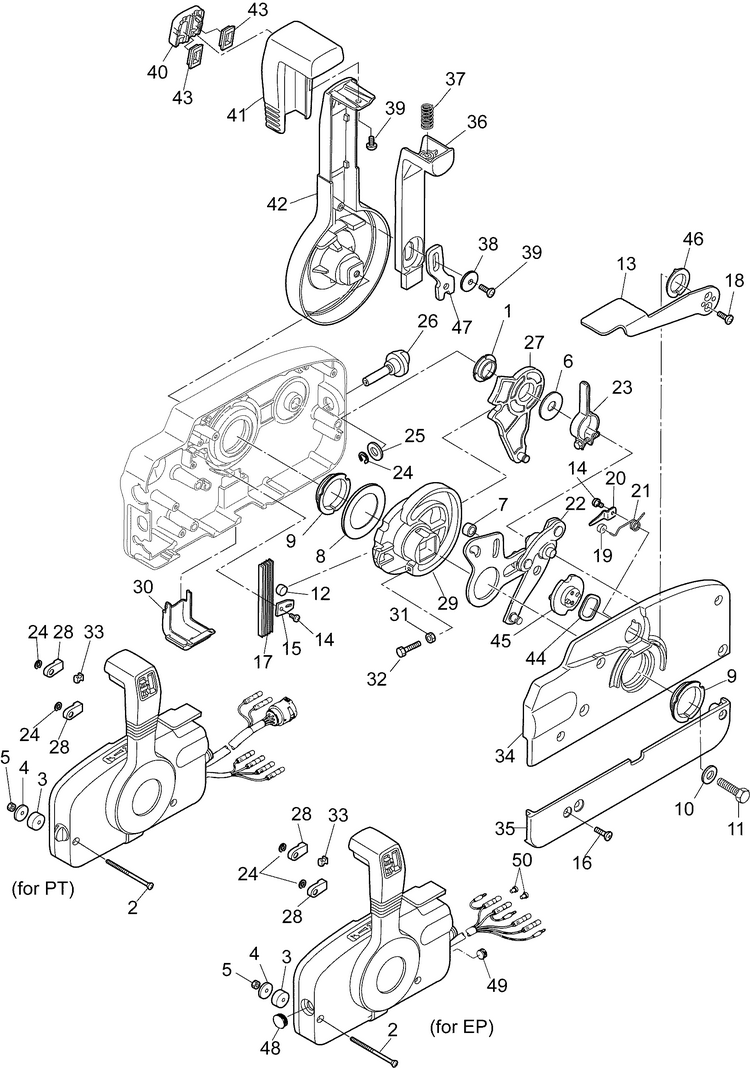

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 216186 Decal, Evinrude

Schematic Object Key : NS

Product Description: Decal, Evinrude

Category: EVINRUDE / 2012 / 9.8 PORTABLE / B10PX4INS / 19-2_SIDE MOUNT REMOTE CONTROL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
- 5041134 Remote control with tilt use universal 3300 type control cables
- 5041135 Remote control assembly use universal 3300 type control cables
1 5040287 Bushing b
2 5040266 Screw
3 5040265 Spacer
4 5040116 Washer remote control box
5 5041647 Nut
6 5040269 Washer
7 5040277 Roller
8 5040278 Thrust plate
9 5040286 Bushing a
10 5041662 Washer
11 5040289 Bolt
12 5040117 Detent roller
13 5040560 Free throttle lever
14 5041602 Screw
15 5040279 Detent retainer
16 5041635 Screw
17 5040261 Detent spring
18 5041634 Screw control without trim
18 5041634 Screw control with trim
19 5040280 Free throttle roller
20 5040282 Roller retainer
21 5040281 Free throttle spring
22 5040263 Throttle arm
23 5040284 Throttle friction arm control with trim
24 5041682 E ring d 6 control without trim
24 5041682 E ring d 6 control with trim
25 5040118 Washer control with trim
26 5040283 Adjust screw control with trim
27 5040268 Shift gear assembly
28 5040260 Cable terminal
29 5040262 Drive gear
30 5040285 Wire cover
31 5041646 Nut
32 5041522 Bolt
33 5040267 Grommet
34 5040563 Rear housing
35 5040562 Rear panel
36 5040272 Neutral lock arm
37 5040273 Neutral lock spring
38 5040276 Washer lock arm
39 5041608 Screw
40 5040290 Tilt switch cover
41 5040274 Grip
42 5040561 Control lever
43 5040291 Tilt switch plug control without trim
43 5040291 Tilt switch plug control with trim
44 5040264 Wave washer
45 5040270 Free throttle drum
46 5040288 Bushing d
47 5040275 Plate lock arm
48 5040125 Grommet a control without trim
49 5040126 Grommet b control without trim
50 5040256 Cable terminal plug control without trim
NS 0216186 Decal, evinrude
NS 0777040 Cable assembly, 8 ft. 2.4m universal 3300 type
NS 0777041 Cable assembly, 9 ft. 2.7m universal 3300 type
NS 0776816 Cable assembly,10 ft. 3m universal 3300 type
NS 0776817 Cable assembly, 11 ft. 3.4m universal 3300 type
NS 0776818 Cable assembly, 12 ft. 3.6m universal 3300 type
NS 0776819 Cable assembly, 13 ft. 4m universal 3300 type
NS 0776820 Cable assembly, 14 ft. 4.3m universal 3300 type
NS 0776821 Cable assembly, 15 ft. 4.6m universal 3300 type
NS 0776822 Cable assembly, 16 ft. 4.9m universal 3300 type
NS 0776823 Cable assembly, 17 ft. 5.2m universal 3300 type
NS 0776824 Cable assembly, 18 ft. 5.5m universal 3300 type
NS 0776825 Cable assembly, 19 ft. 5.8m universal 3300 type
NS 0776826 Cable assembly, 20 ft. 6.m universal 3300 type
NS 0776828 Cable assembly, 22 ft. 6.7m universal 3300 type
NS 0776829 Cable assembly, 24 ft. 7.3m universal 3300 type
