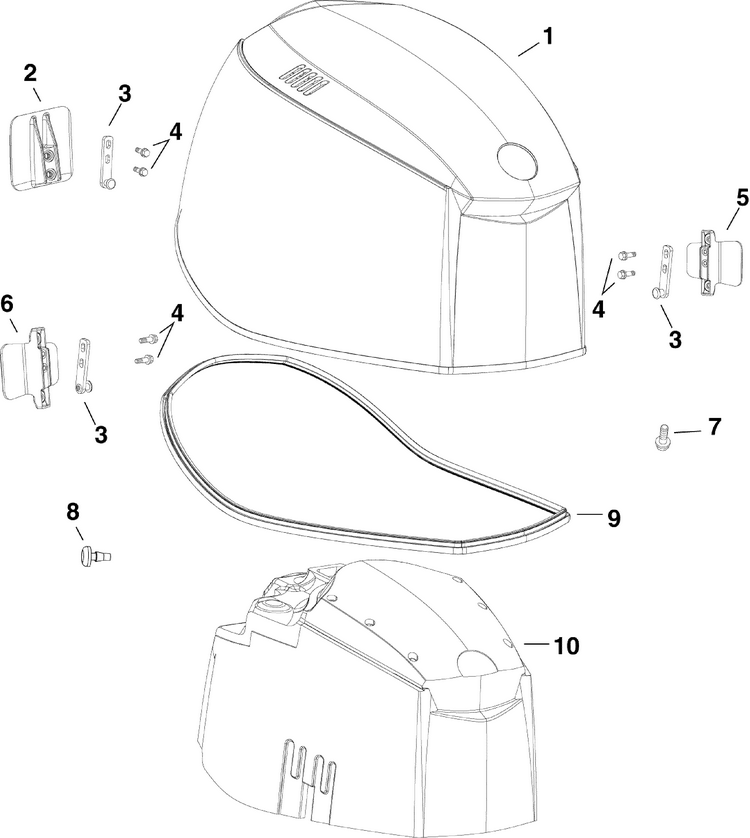

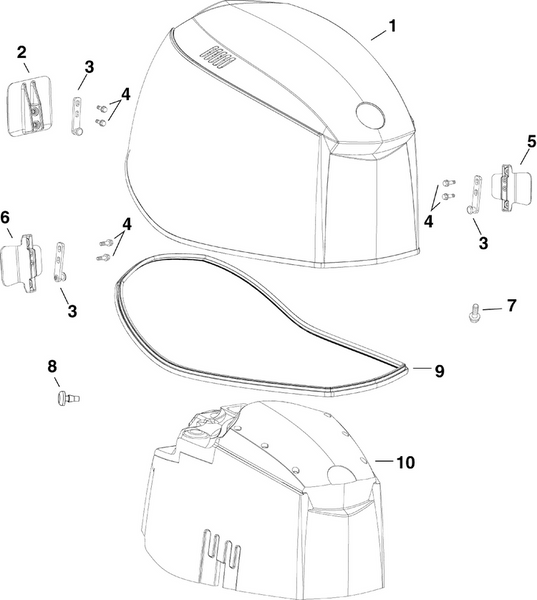

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : -
Product Description: Engine Cover Assembly, Blue H.O.
Category: EVINRUDE / AB Models / 250 - (90° V6, 3.3 L) / DE250PXABA - (90° V6, 3.3 L) / 01-2_ENGINE COVER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
- | 285807 | Engine cover assembly, blue h.o. | |
- | 285808 | Engine cover assembly, white standard | |
- | 285809 | Engine cover assembly, white h.o. | |
- | 285851 | Engine cover assembly, graphite standard | |
- | 285850 | Engine cover assembly, graphite h.o. | |
- | 285829 | Engine cover assembly, graphite silver cap 250 h.o. only | |
1 | 350873 | Cap, blue | |
1 | 356860 | Cap, silver 250 h.o. only | |
1 | 354747 | Cap, graphite | |
1 | 351556 | Cap, white | |
2 | 351495 | Bracket, latch | |
3 | 5005886 | Hook assembly | |
4 | 328744 | Screw, hook to latch bracket | |
5 | 351496 | Bracket, latch | |
6 | 351497 | Bracket, latch | |
7 | 336165 | Screw, cap to engine cover | |
8 | 351731 | Bumper | |
9 | 350871 | Seal, upper to lower cover | |
10 | 350872 | Blanket sound |
