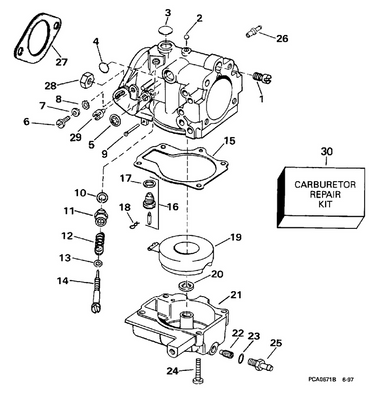

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 10
Product Description: Pkg. Nut, Adj. Needle Valves
Category: EVINRUDE / 1982 / 4.5 / E5RHLCNR 1982 / CARBURETOR - 4.5
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
0389579 | 0389579 | Carburetor assy. | |
1 | 0330190 | Washer | This part replaces 0310925. |
2 | 0330346 | Screw, adjustment | This part replaces 0324393. |
3 | 0323328 | Roller | |
4 | 0320015 | . orifice, idle rstr 33 | |
5 | 0306442 | . core plug | |
6 | 0304201 | Lead shot | |
7 | 0325050 | Adapter, choke plate to carb | |
8 | 0307583 | Packing, valve | |
9 | 0431634 | Needle valve assy., slow speed adjustment | This part replaces 0388981. |
10 | 0300179 | Pkg. nut, adj. needle valves | |
11 | 0302661 | Hinge pin, float | |
12 | 0396522 | Ensemble soupape à flotteur | This part replaces 0382889. |
13 | 0301996 | Gasket | |
14 | 0336842 | Clip, spring | This part replaces 0603145. |
15 | 0338877 | Gasket | This part replaces 0325051. |
15 | 0338878 | Gasket | This part replaces 0319011. |
16 | 0312831 | Shoulder screw | |
17 | 0323327 | Cam follower | |
18 | 0330192 | Link, cam follower | This part replaces 0312830. |
19 | 0323410 | Nozzle, high speed | |
20 | 0326821 | Screw, float chamber | |
20 | 0319008 | Grommet, cable, lower motor cover | |
21 | 0306027 | Washer, packing | |
22 | 0396514 | Float assy | This part replaces 0375919. |
23 | 0203949 | E ring link | This part replaces 0202755. |
24 | 0330191 | Washer, throttle shaft | This part replaces 0303048. |
25 | 0320469 | Spring, throttle return | |
26 | 0322285 | Plate sleeve assy. | |
27 | 0391959 | Float chamber assy. | |
27 | 0330881 | Float chamber | This part replaces 0319010. |
28 | 0324661 | Bladder | |
29 | 0324667 | Nipple, float chamber | |
30 | 0325762 | Roll pin, shut off valve | |
31 | 0324659 | . shut off valve | |
32 | 0324660 | O ring | |
33 | 0318194 | Bushing | |
34 | 0324658 | Lever, choke shaft | |
35 | 0324695 | Lever, choke knob | |
36 | 0324696 | Link, lever to valve | |
37 | 0328742 | Nut | This part replaces 0306338. |
38 | 0323452 | Gasket | |
39 | 0439070 | Carburetor repair kit | This part replaces 0390990. |
39 | 0391937 | Carburetor repair kit |
