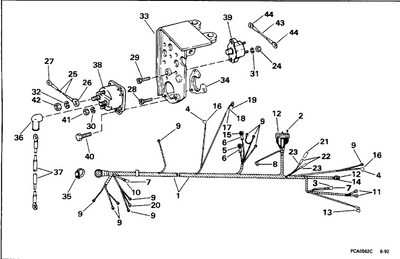

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 29
Product Description: Terminal
Category: EVINRUDE / 2006 / 200 / E200DHXSDS - (90° V6 3,3 L) / ELECTRICAL BRACKET & COMPONENTS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5008027 | Cover, electrical bracket | This part replaces 5006179. |
2 | 0351815 | Decal, wiring diagram standard | |
3 | 0354797 | Bracket, electrical | This part replaces 0350829. |
4 | 0514005 | Bracket | |
5 | 0352051 | Bracket, connector | |
6 | 0351756 | Åillet | |
7 | 0342265 | Cover, bracket | |
8 | 0330838 | Screw, baffle | |
9 | 0333710 | Screw, anchor bracket | |
10 | 0328703 | Washer, screw hook | |
11 | 0333040 | Isolator | |
12 | 0338558 | Entretoise, Ã collerette | |
13 | 3011358 | Stud, ground double end | |
14 | 0335687 | Screw, clamp 1 4 20 x .75 | |
15 | 0328701 | Lockwasher, double ended bolt | |
16 | 0328740 | Nut, throttle friction | |
17 | 0586774 | Solenoid assy | |
18 | 0328703 | Washer, screw hook | |
19 | 0333710 | Screw, anchor bracket | |
20 | 0586832 | Cable, starter to solenoid | |
21 | 0331259 | Lock washer | |
22 | 0321472 | Ecrou, câble solénoïde | |
23 | 0584348 | Câble, batterie 10' 3,0m | |
24 | 0586767 | Cable relay assembly | |
25 | 0600138 | Ring terminal | |
26 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre | |
27 | 3010023 | Seal, wire | |
28 | 3010484 | Connector, 2 pin recpticle | |
29 | 3010485 | Terminal | |
30 | 3011148 | Contact, tab | |
31 | 3011149 | Seal, wire | |
32 | 3011154 | Connector, 2 position plug | |
33 | 3011292 | Clip, mounting | |
34 | 3011290 | Grommet | |
35 | 3011291 | Bumper |
