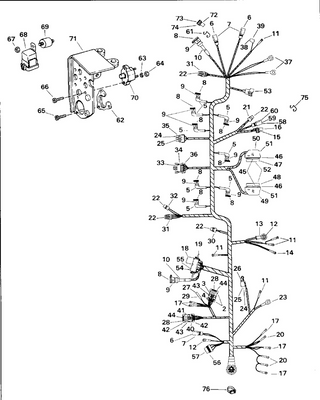

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 26
Product Description: Terminal,Socket
Category: EVINRUDE / AG Models / 300 - (G2, 74° V6, 3.4 L) / E300ZCUAGB - (G2 74° V6, 3.4 L) / 02-0_ELECTRICAL HARNESS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
â | 0587299 | Engine harness assembly when replacing an engine harness, review the installation to ensure you also order any needed hose clamps or other consumable supplies. | |
10 | 3011420 | Connector dps module connector | |
12 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre 0.312 in. 7.9mm diameter | |
13 | 0204363 | Terminal, ring 0.250 in. 6.3mm diameter | |
14 | 0320107 | Tie strap | |
15 | 0327283 | Lockwasher | |
16 | 0332067 | Screw | |
17 | 3011958 | Terminal | |
19 | 0512550 | Terminal 10 | |
20 | 5008843 | Plug tie strap | |
23 | 3011993 | Connector, 2 position cap engine temperature sensor | |
25 | 0514583 | Terminal | |
26 | 3011955 | Terminal,socket | |
27 | 0514681 | Lock wedge, 3 socket | |
28 | 0514683 | Cale verrouillage, fiche 6 broches | |
29 | 0514690 | Bouchon, mâle | |
30 | 0514764 | Minifuse, 5 amp | |
31 | 0514889 | Cover, capacitor | |
32 | 3011916 | Plug, cavity | |
33 | CABLE ASSEMBLY, Remote control CANbus | Not sold separately | ||
34 | CABLE ASSEMBLY, NMEA 2000 CANbus | Not sold separately | ||
37 | 3010050 | Secondary lock | |
38 | 3011918 | Connector, 3 posiiton plug battery isolator | |
39 | 3011956 | Terminal, socket | |
42 | 0503956 | Split convoluted tubing max dia. in. 1 2 | This part replaces 3010591. |
44 | 3011147 | Contact, female receptacle | |
45 | 3011864 | Contact, tab | |
46 | 3011149 | Seal, wire | |
47 | 3011150 | Plug, sealing | |
48 | 3011153 | Connecteur, fiche 2 positions | |
49 | 3011154 | Connector, 2 position plug | |
50 | 3011155 | Connecteur, fiche 3 positions | |
51 | 3011156 | Connector, 3 position water pressure | |
52 | 3011161 | Connector seal, 16 position plug emm j4 | |
53 | 3011166 | Terminal 14 gauge 14 gauge | |
54 | 3011167 | Seal, wire 14 gauge 14 gauge | |
55 | 3011168 | Plug, cavity | |
56 | 3011169 | Connector seal, 26 position plug emm j1b | |
57 | 3011170 | Connector seal, 34 position plug emm j1a | |
58 | 3011171 | Terminal | |
59 | 3011173 | Plug, cavity | |
60 | 3011174 | Terminal 18 gauge 18 gauge | |
61 | 3011175 | Seal, wire 18 gauge 18 gauge | |
64 | 3011701 | Connecteur, 6 broches shift actuator | |
65 | 3011984 | Plug serial comm | |
66 | 3011461 | Connector, 6 socket plug key switch | |
67 | 3011350 | Seal, wire 12 gauge | |
68 | 3011372 | Connector, 29 position plug emm j2 | |
69 | 3011402 | Connector, 6 pin receptacle stator | |
70 | 3011409 | Capacitor | |
NS | 0907833 | Attache câble, câbles vers commande de sens de marche capacitor to baffle | |
71 | 3011157 | Connecteur, fiche 6 positions fuel pump | |
72 | 3011666 | Tubing, convoluted | |
74 | 3011523 | Connector seal, 2 pin plug air temperature | |
75 | 3011663 | Connector, 2 way knock sensor | |
76 | 3011729 | Fuse, atm 30 | |
77 | 3011770 | Connector, 2 position cap oil pump | |
78 | 3011781 | Connector, 6 position plug electronic throttle body | |
79 | 3011782 | Terminal, receptacle | |
80 | 3011783 | Seal, terminal | |
81 | 3011784 | Connector, 26 position emm j3 | |
82 | 3011421 | Connecteur, emm trim sender connector | |
83 | 3011788 | Terminal 12 gauge | |
84 | 3011789 | Terminal 18 gauge | |
85 | 3011790 | Relay, 12v 35a spdt b to 55v relay start relay | |
86 | 3011805 | Fuse, 3 amp | |
87 | FUSE BLOCK, 60 Position | ||
88 | 3011787 | Cover, fuse block | |
89 | 3010123 | Connector seal, 2 socket plug low oil switch | |
90 | 3011919 | Secondary lock | |
92 | 0503956 | Split convoluted tubing max dia. in. 1 2 | This part replaces 3010608. |
93 | 3011957 | Contact, receptacle | |
94 | 0514766 | Fuse, 10 amp, spare | |
95 | 3011702 | Cale verrouillage, 6 broches | |
96 | 3011703 | Borne, broche | |
98 | 0357114 | Clip, retainer | |
99 | 0317893 | Tie strap | |
100 | 0356843 | Clip, mounting | |
102 | 3011920 | Connector, 3 position cap battery isolator | |
103 | 0514823 | Terminal | |
114 | 5009078 | Fuse relay bracket | |
115 | 0353590 | Screw m6 x 25 | |
116 | 0338558 | Entretoise, Ã collerette | |
117 | 0333040 | Isolator fuse relay bracket mounting | |
118 | 3011450 | Clip water pressure sensor connector, tnt connector, cps connector | |
119 | 0587269 | Connector seal assembly non dps models |
