EVINRUDE-JOHNSON 3012060 Connector, 3 Position Cap

Write a Review
$6.12
SKU:
3012060
Schematic Object Key:
53

EVINRUDE-JOHNSON 3012060 Connector, 3 Position Cap

$6.12

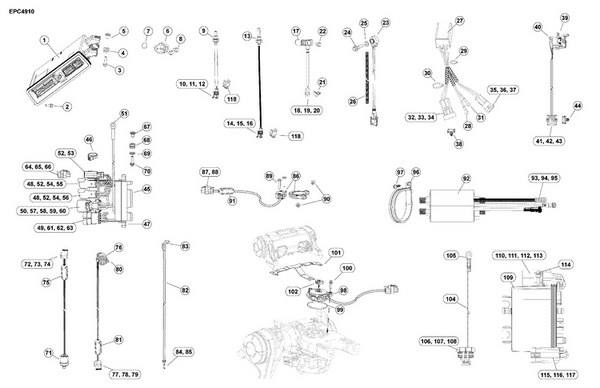

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 3012060 Connector, 3 Position Cap

Schematic Object Key : 53

Product Description: Connector, 3 Position Cap

Category: EVINRUDE / AA Models / 175 - (G2, 66° V6, 2.7 L) / C175PXAAF - (G2 66° V6, 2.7 L) / 02-4_MODULES & SENSORS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0587334 Emm
NS 0356614 Hose, back pressure
NS 0353038 Restrictor, 0.013 back pressure hose
NS 0346786 Clamp back pressure hose to emm
NS 0320107 Tie strap back pressure hose to fitting
2 0356844 Screw, emm mounting emm to baffle
3 0356845 Screw m6 x 25 emm to center frame
4 0333040 Isolator emm mounting
5 0338558 Entretoise, à collerette
6 3010673 Sensor, air temperature intake air
7 0304174 "o" ring, tube adapter
8 0353753 Screw, bracket to cyl c c m5 x 12
9 3011989 Sensor, engine temperature
10 3011147 Contact, female receptacle
11 3011149 Seal, wire
12 3011957 Contact, receptacle
13 0587376 Sensor, exhaust temperature This part replaces 3012065.
14 3011153 Connecteur, fiche 2 positions
15 3011149 Seal, wire
16 3011147 Contact, female receptacle
NS 0317893 Tie strap
17 0587402 Sensor, crankshaft position cps This part replaces 0587014.
18 3011148 Contact, tab
19 3011149 Seal, wire
20 3011156 Connector, 3 position
21 3011292 Clip, mounting cps connector
22 0353589 Screw, trim tab
23 0587042 Sensor, knock
24 0359272 Screw, crankcase cover m8 x 35 This part replaces 0353572.
25 0301250 Rondelle
26 3011666 Tubing, convoluted
27 0586767 Cable relay assembly trim tilt
28 0204053 Borne, anneau 0,312" 7,9 mm diamètre 0.312 in. 7.9mm diameter
29 0317893 Tie strap
30 0320107 Tie strap
31 0600138 Ring terminal 0.250 in. 6.3mm diameter
32 3010484 Connector, 2 pin recpticle to trim motor
33 3010023 Seal, wire
34 3010485 Terminal
35 3011154 Connector, 2 position plug to trim switch
36 3011149 Seal, wire
37 3011148 Contact, tab
38 0358999 Clip,connector mounting trim motor relay
39 0587333 Sending unit assembly trac models only
39 0587196 Sending unit assembly all dps ihs models
40 0513323 Ring terminal, 10 10
41 3011147 Contact, female receptacle
42 3011149 Seal, wire
43 3011420 Connector
44 0358999 Clip,connector mounting
45 0587430 Dps control module
46 0317893 Tie strap
47 0330272 Fitting
48 0357114 Clip, retainer steering position connectors
49 3011292 Clip, mounting can connector
50 5009587 Plug tie strap assembly dps power connector
51 0600138 Ring terminal 0.250 in. 6.3mm diameter
52 0514679 Borne, broche
53 3012060 Connector, 3 position cap
54 3011967 Connector, 3 pin receptacle
55 3011961 Lockwedge, 3 pin receptacle
56 0514682 Lock wedge, 3 pin
57 3011920 Connector, 3 position cap
58 3010485 Terminal
59 3010023 Seal, wire
60 3011919 Secondary lock
61 3011421 Connecteur, emm
62 3011148 Contact, tab
63 3011225 Seal, wire
64 0587328 Connector seal
65 0514690 Bouchon, mâle
66 3012061 Connector, 3 position
67 0338558 Entretoise, à collerette
68 0333040 Isolator dps module mounting
69 0353761 Rondelle, levier de sens de marche
70 0353553 Screw m6 x 30
71 0587478 Sensor, pressure starboard This part replaces 0587329.
72 3011984 Plug
73 3012083 Lockwedge, blue
74 0514680 Socket
75 0587342 Clamp, ferrite
76 0587479 Sensor, pressure port This part replaces 0587317.
77 3011984 Plug
78 0514681 Lock wedge, 3 socket
79 0514680 Socket
80 0320107 Tie strap
81 0587342 Clamp, ferrite
82 0587312 Lead assembly center frame, positive post to dps module
83 0204053 Borne, anneau 0,312" 7,9 mm diamètre 0.312 in. 7.9mm diameter
84 3010023 Seal, wire
85 0514823 Terminal
86 5009680 Steering sensor assembly dps models only
87 3012061 Connector, 3 position
88 0514680 Socket
89 0358350 Screw, m5 x 25
90 0358340 Screw, m5x14
NS 0320107 Tie strap steering sensor lead
91 0587342 Clamp, ferrite
92 0587451 Pressure sensor module idock models only
93 3011469 Connector, 2 pin receptacle
94 0514697 Lock wedge, 2 pin
95 0514679 Borne, broche
96 0361102 Clamp, pressure sensor
97 0361148 Screws
98 5010559 Steering position sensor kit incl 43 45 idock models only
99 0341620 O ring
100 0353590 Screw
102 0360838 Grommet
104 0587422 Cable assembly connects idock control module to power ground
105 0600138 Ring terminal
106 3010048 Connector, 2 pin
107 0514823 Terminal
108 3010023 Seal, wire
109 5010557 Control module kit idock models only
– 0587399 Control module, idock not serviced
110 3011920 Connector, 3 position cap to idock motor
111 3010485 Terminal
112 3010023 Seal, wire
113 3011919 Secondary lock
114 5009587 Plug tie strap assembly
NS 0320107 Tie strap
115 3010484 Connector, 2 pin recpticle power ground
116 3010023 Seal, wire
117 3010485 Terminal
NS 0346786 Clamp
118 3011450 Clip
