EVINRUDE-JOHNSON 301814 WASHER C=4

Write a Review
$7.23
SKU:
301814-OMC
Schematic Object Key:
18

EVINRUDE-JOHNSON 301814 WASHER C=4

$7.23

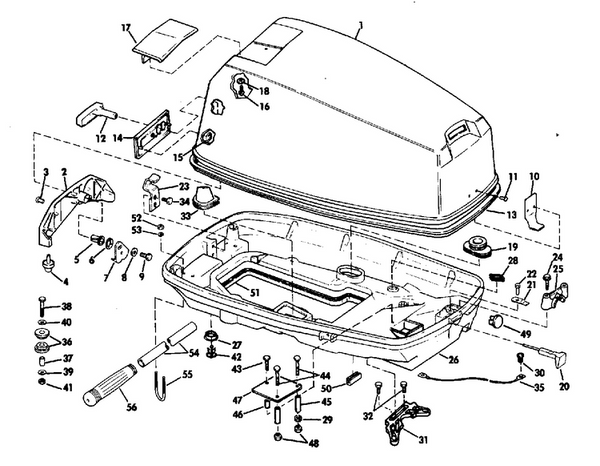

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 301814 Washe,Tilt Handle

Schematic Object Key : 18

Product Description: Washe,Tilt Handle

Category: EVINRUDE / 1983 / 40 / E40RWLTR 1983 / ENGINE COVER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0281616 Engine cover assy.,evinrude
1 0391272 Engine cover assy.,johnson
2 0396704 Locating bracket, rear This part replaces 0391641.
3 0326948 Rivet, locating brackets
4 0315159 Bumper, locating brackets
5 0308532 Bague, levier de verrouillage
6 0553766 Bow washer
7 0330252 Hook, front and rear cover This part replaces 0323236.
8 0328703 Washer, screw hook This part replaces 0304051.
9 0122147 Screw, adapter to steering bracket
10 0320732 Hook
11 0554355 Rivet
12 0330647 Handle assy. This part replaces 0325357.
13 0317173 Seal, cover
14 0325675 Applique, front
15 0317223 Fasteners, push on
16 0312299 Screw, cable clamp
17 0315151 Applique, rear
18 0301814 Washe,tilt handle
19 0304019 Crommet, control shaft
20 0388574 Choke knob assy.
21 0315135 Detent, choke knob
22 0307029 Screw, hook mounting
23 0323474 Hook, cover to housing
24 0319126 Screw, muffler, upper This part replaces 0324474.
25 0325972 Cable clamp
26 0392862 Cover plug
27 0322086 Plug
28 0318262 Grommet
29 0302290 Washer
30 0311020 Screw, clamp
31 0321356 Bracket, lower cover
32 0317581 Screw, actuator cam
33 0319389 Grommet, shifter lock
34 0304027 Screw
35 0376349 Lead, ground
36 0316354 Engine cover support grommet This part replaces 0302405.
37 0302406 Sleeve
38 0324814 Ecrew,exhaust cover,1 1 2"long
39 0321376 Washer
40 0328703 Washer, screw hook This part replaces 0304051.
41 0311375 Nut
42 0321885 Nipple
43 0303398 Screw, lower
44 0312495 Screw, adapter to inner hsg.
45 0322822 Spacer
46 0322823 Spacer
47 0322824 Baffle
48 0328740 Nut, throttle friction This part replaces 0301472.
49 0317491 Cap plug, lower cover
50 0553770 Seal, lower cover, small
51 SEAL,Cover,large
0392855 0392855 Carrying handle assy
52 0328740 Nut, throttle friction This part replaces 0301472.
53 0306396 Lock washer, control to boat
54 0327984 Tube handle
55 0327986 U clamp
56 0604139 Grip
0282067 0282067 Decal set,evinrude
0393830 0393830 Decal set,johnson
0210003 0210003 Owners manual,evinrude
0394268 0394268 Owners manual,johnson
