EVINRUDE-JOHNSON 302497 GROMMET C=2 PKG=5

Write a Review
$5.00
SKU:
302497-OMC
Schematic Object Key:
117

EVINRUDE-JOHNSON 302497 GROMMET C=2 PKG=5

$5.00

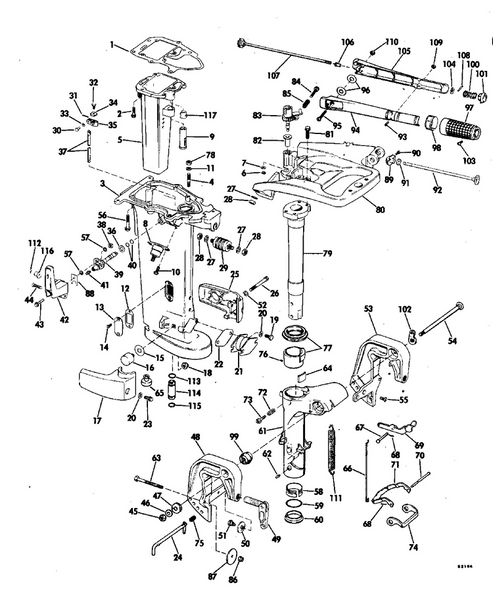

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 302497 Grommet, Lower Water Tube

Schematic Object Key : 117

Product Description: Grommet, Lower Water Tube

Category: JOHNSON / 1978 / 35 / 35R78R 1978 / EXHAUST HOUSING - 25

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0319710 Gasket, baffle
2 0308743 Screw, injector to manifold This part replaces 0320179.
3 0390453 Exhaust housing assy. This part replaces 0388546.
4 0324815 Stud
5 0322682 Exhaust tube, inner
6 0314408 . .ring, tru arc
7 0303887 Washeer, pin to swivel bracket
8 0303879 Mount rubber, upper side, std. only
9 0321513 Guide, water tube
10 0329217 Screw, retainer This part replaces 0310259.
11 0306439 Washer This part replaces 0200158.
12 0304023 Gasket, cover plate
13 0303862 Cover plate, extension long shaft models
14 0303587 Scres,cover plate
15 0304168 Gasket, mount, lower side
16 0321470 Mount, rubber, lower side
17 0323109 Houising,lower mount,stbd.
18 0303890 Acorn nut, lower side mount
19 0330437 Screw This part replaces 0303888.
20 0303886 Lockwasher
21 0321469 Mount, rubber, lower front
22 0304169 Gasket, lower front mount
23 0309942 Screw, anchor bracket
24 0387524 Rod, thrust and retainer
25 0323108 Housing, lower mount port
26 0342540 Screw, exhaust housing to ext. This part replaces 0316440.
27 0303884 Washer
28 0303889 .nut
29 0304800 Mount, rubber, upper front
30 0319541 Pin, bellcrank to shift rod
31 0306376 Cotter pin
32 0321532 Screw
33 0304380 , bow
34 0319537 Clip
35 0322177 Lever, shift rod
36 0303775 Wahser, lever to hsg
37 0304859 Rod, shaft, upper
38 0203688 Nut
39 0388655 Adj lever and shaft assy
40 0303191 "o" ring, lever shaft
41 0313607 Lube fitting
42 0384477 Shift lever pin
43 0323836 Screw, cyl to c'case
44 0323099 Screw, bumper This part replaces 0301989.
45 0552938 Locking nut, 3 8 x 24
46 0306433 Washer
47 0302051 Spring tilting bolt
48 0388037 Stern brkt., assy, stbd.
49 0433675 Clamp scr. hand. assy. This part replaces 0388347.
50 0337017 Plate, swivel This part replaces 0307561.
51 0321922 Screw, shoulder
52 0304144 Lock washer
53 0388036 Stern brkt., assy., port incl. items 49, 50, 51
54 0319756 Bolt, tilting shaft
55 0901889 Screw This part replaces 0303396.
56 0324871 Screw, housing to cylinder
57 0328701 Lockwasher, double ended bolt This part replaces 0303480.
58 0309967 Bushing, pilot shaft, lower
59 0305270 O ring
60 0309966 Thrust washer, lower swivel bracket
61 0329183 Bracket, swivel This part replaces 0323066.
62 0313607 Lube fitting
63 0432294 Screw nut assembly This part replaces 0313966.
64 0397736 Block assy., friction This part replaces 0319086.
65 0326071 Bumper, mount housing This part replaces 0323107.
66 0303978 Link, reverse lock arm to shaft
67 0303930 Pin, cotter, pivot shaft
68 0306376 Cotter pin
69 0303980 Arm, manual locking lever
70 0303949 Rod, reverse lock
71 0329962 Lever, reverse lock This part replaces 0303948.
72 0551113 Ressort de friction de direction
73 0321531 Screw, friction adjust. swivel brkt.
74 0303950 Link, reverse lock
75 0323471 Spring, thrust rod
76 0303696 Pin
77 0397736 Block assy., friction This part replaces 0388748.
78 0327969 Écrou de blocage This part replaces 0316854.
79 0323098 Piklot shaft, steering brkt for models with steering handles use 394343 models without steering handles use 394342
80 0322883 Bracket, steering
80 0322884 Bracket, steering
81 0317624 Screw, driveshaft hsg
82 0303854 Bushi ng, throttle control
83 0393943 Gear, throttle control This part replaces 0387634.
84 0304573 Scr., idle adj.
85 0309247 Ressort
86 0327969 Écrou de blocage This part replaces 0316854.
87 0315776 Rondelle
88 0322878 Spacer, shift lever
89 0303142 Pinion, control throttle
90 0303951 Screw, pin to shaft
91 0305347 Bushing, throttle shaft
92 0387057 Gear shaft, short
93 0133452 Screw
94 0322933 Handle ,sterring,inner half
95 0330976 Screw, handle halves This part replaces 0303078.
96 0303079 Washer
97 0393556 Grip sleeve assy. This part replaces 0386239.
98 0320842 Plate
99 0301983 Conicak washer,stern brkt
100 0301656 Spring
101 0303282 Block
102 0300364 Link, conical, tilt shaft
103 0310303 1
104 0303252 Wahser, grip spring
105 0322932 Handle, outer half
107 0388657 Gear shaft, long
109 0133079 Nut
111 0303979 Spring, reverse lock
112 0308776 O ring
113 0301967 O ring
115 0302035 "o" ring, spacer to imp. hsg.
116 0323493 Bushing
117 0302497 Grommet, lower water tube
