EVINRUDE-JOHNSON 302500 Cradle

Write a Review
$142.49
SKU:
302500
Schematic Object Key:
23

EVINRUDE-JOHNSON 302500 Cradle

$142.49

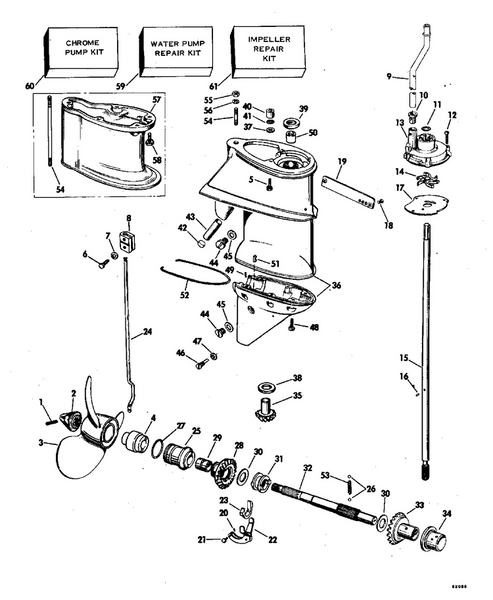

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 302500 Cradle

Schematic Object Key : 23

Product Description: Cradle

Category: JOHNSON / 1978 / 35 / 35RL78R 1978 / GEARCASE - 25

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0306394 Cotter pin
2 0390294 Nut, propeller This part replaces 0388881.
3 0388883 Propeller, 9 1 4 x 11 al
3 0389067 Propeller 9 1 4 x 7
3 0389068 Propeller, 9 x 10
3 0389069 Propeller, 9 1 4 x 10 al
3 0389070 Propeller, 9 x 10 weedless
4 0389281 Prop bushing assy.
5 0308743 Screw, injector to manifold
6 0304024 Screw This part replaces 0323636.
7 0301551 Washer, lock
8 0303794 Connector
9 0322077 Water tube, standard
10 0302497 Grommet, lower water tube
11 0339543 O ring This part replaces 0303059.
12 0302508 Screw, impeller housing
13 0313543 Housing, impeller
14 0375638 Iimpeller, water pump
15 0323533 Driveshaft, standard
16 0300771 Pin, impeller
17 0303069 Plate, impeller housing
0389692 0389692 Gearcase assy., less drive shaft pump
18 0303587 Scres,cover plate This part replaces 0302509.
19 0302505 Cover, water by pass
20 0306376 Cotter pin
21 0302504 Pin, connector, shift rod
22 0375755 Lever pin assy.
23 0302500 Cradle
24 0303098 Rod, lower shfit, standard
25 0389045 Gearcase head assy
26 0316506 Ball, detent
27 0321921 "o"ring,gearcase head
28 0316504 Gear, reverse
29 0303997 Bushing, reaverse gear
30 0301884 Washer, thrust
31 0316501 Shift, clutch dog
32 0323294 Shaft, propeller
33 0389236 Gear and bushing, forward
34 0323808 Bearing, front
35 0308617 Pinion, draft shaft
36 0389691 Gearcase brg. assy.
37 0304764 . gasket, bushing
38 0303996 . thrust washer, pinion
39 0321788 Seal, lower
40 0304765 Bushing, shift rod
41 0301877 O ring shift rod
42 0300314 . plug, intake screen
43 0302757 . screen, water intake
44 0307551 Screw
45 0311598 Seal
46 0308376 Pivot pin, shift lever
47 0307853 O ring
48 0330562 Screw, gearcase This part replaces 0304070.
49 0300611 . dowel, bearing
50 0383829 . bearing, drive shaft
51 0317728 . magnet, gearcase
52 SEAL, Gearcase
53 0316505 Spring, detent
54 0330060 Stud This part replaces 0321926.
55 0552938 Locking nut, 3 8 x 24
56 0307708 Lock washer, mounting This part replaces 0302865.
24 0303257 Rod, shift, lower, long
0389111 0389111 Extension kit assy
0301967 0301967 O ring
0302035 0302035 "o" ring, spacer to imp. hsg.
6 0304024 Screw This part replaces 0323636.
7 0301551 Washer, lock
8 0304081 Connector 5 " extension kit
9 0322078 Water tube, long
15 0323534 Driveshaft, long
54 0330558 Stud, housing to gearcase This part replaces 0321925.
57 0327563 Extension. gearcase 5 inch longer parts This part replaces 0322750.
58 0308743 Screw, injector to manifold
59 0382468 Water pump repair kit
60 0382474 Chrome pump kit
61 0379766 Impeller repair kit
