EVINRUDE-JOHNSON 302564 . Oil Retainer, Prop, Shaft

Write a Review
$19.49
SKU:
302564
Schematic Object Key:
24

EVINRUDE-JOHNSON 302564 . Oil Retainer, Prop, Shaft

$19.49

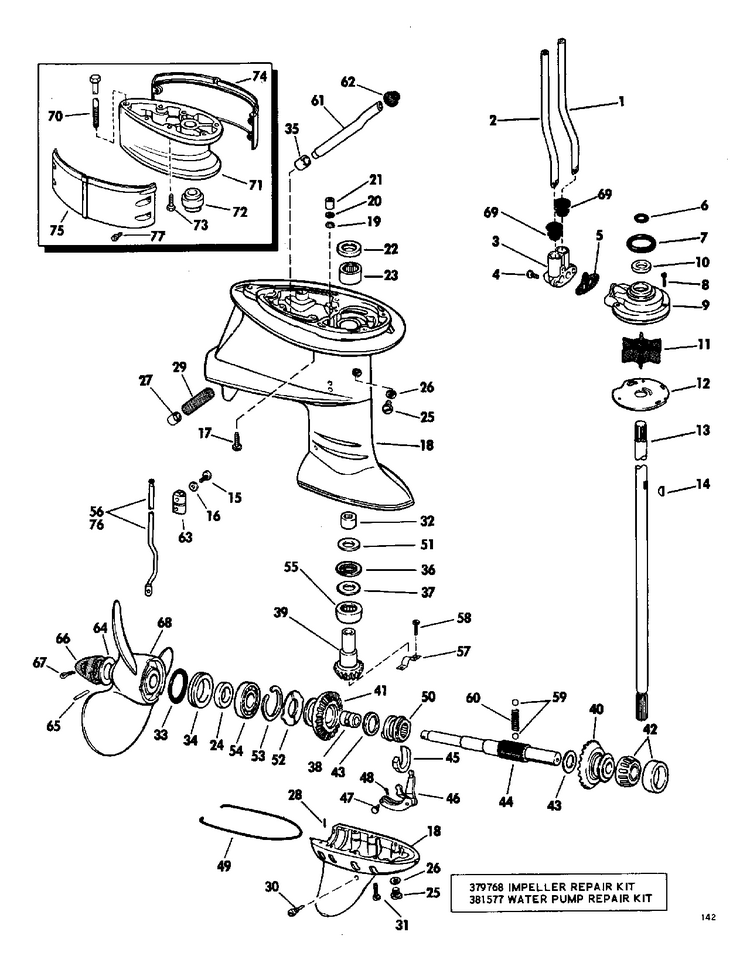

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 302564 . Oil Retainer, Prop, Shaft

Schematic Object Key : 24

Replacement: This part (302564) replaces 0313285.

Product Description: . Oil Retainer, Prop, Shaft

Category: EVINRUDE / 1968 / 40 / 40853C 1968 / GEARCASE GROUP ELECTRIC START

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0305492 Tube, water, in
2 0305492 Tube, water, in
2 0314332 Tube, water, out
3 0312615 Cap, impeller housing
3 0314335 Cap, impeller housing
4 0302319 Screw, impeller cap
5 0312614 Gasket, impeller cap
6 0339543 O ring This part replaces 0303059.
7 0202591 O ring
8 0303714 Screw
9 0381576 Impeller housing assy
10 0321459 Oil retainer, housing This part replaces 0305306.
11 0377230 Impeeler assembly
12 0312613 Plate, impeller housing
13 0379875 Drive shaft assembly standard
14 0308928 .key, impeller 5 inch longer parts
15 0304024 Screw
16 0301551 Washer, lock
17 0309244 Screw
0382919 0382919 Gearcase assy., less drive shaft and pump
18 0382918 Gearcase bearing assembly
19 0304764 . gasket, bushing
20 0301877 O ring shift rod
21 0304765 Bushing, shift rod
22 0313284 .retainer, oil, drive shaft
23 0378578 . .bearing, drivehsaft
24 0302564 . oil retainer, prop, shaft This part replaces 0313285.
25 0307551 Screw
26 0311598 Seal
27 0313029 .plug, intake screen
27 0314329 .plug, water intake
28 0300611 . dowel, bearing
29 0313030 .screen, water intake
29 0314330 .screen, water intake
30 0308376 Pivot pin, shift lever
31 0330562 Screw, gearcase This part replaces 0304070.
32 0376856 Bearing assembly, pinion
33 0302588 "o" ring, bearng hsg.
34 0397186 Housing, oil retainer This part replaces 0303050.
35 0312610 .ring, seal, gearcase
36 0376857 Bearing, thrust
37 0304796 Pinion washer , lower
0378726 0378726 Set of gears
38 0303690 .bushing, reverse gear
39 0322605 Pinion This part replaces 0308692.
40 0381810 .gear bushing, fwd.
41 0312869 .gear, reverse
42 0375761 Bearing, roller
43 0302565 Washer, thrust
44 0312867 Shaft, propeller
45 0305286 Cradle, clutch dog
46 0305288 Lever ,shifter
47 0302504 Pin, connector, shift rod
48 0306376 Cotter pin
49 SEAL, Gearcase
50 0312866 Dog, shifter clutch
51 0304795 Pinion washer, upper
52 0302743 Washer, thrust
53 0302528 Ring, retaining, gearcase
54 0307545 Bearing, ball, prop. shaft
55 0376858 Bearin, pinion
56 0305287 Rod, shif, lower, standard
57 0302552 Support, drive shaft
58 0329594 Screw, cam follower This part replaces 0303737.
59 0160084 Ball
60 0312870 ,spring, detent ball
61 0312611 Tube, water, gearcase
62 0304026 Grommet
63 0303794 Connector
64 0304576 Thrust washer
65 0304575 Drive pin, propeller
66 0305294 Nut, propeller
67 0306394 Cotter pin
68 0380637 Propeller 10 1 2 x 12
68 0385955 Propeller, 10 3 4 x 11 This part replaces 0378581.
68 0384460 Propeller, 10 1 2 x 13 This part replaces 0378579.
68 0378571 Propeller, 10 3 8 x 14
69 0304026 Grommet
0383063 0383063 Extensin kit 5 inch longer parts
0378990 0378990 Extension kit 5 inch longer parts
0305642 0305642 Spirng, reverse lock 5 inch longer parts
1 0305493 Tube water, long, out 5 inch longer parts
2 0305493 Tube water, long, out 5 inch longer parts
2 0314333 Tube, water long out 5 inch longer parts
7 0202519 O ring 5 inch longer parts
13 0379876 Drive shaft assy 5 inch longer parts
14 0308928 .key, impeller 5 inch longer parts
15 0304024 Screw
16 0301551 Washer, lock
61 0314334 Tube, water, intake gearcase, upper
63 0304081 Connector 5 " extension kit
69 0308429 Screw
70 0305283 . screw, extension 5" longer parts
71 0308334 Extension 5 inch longer parts
72 0305571 Adapater 5 inch longer parts
73 0305745 Scr., lwr. mtr. cover frt. and rear
74 0309038 Extension, exh cover port 5 inch longer parts
75 0309039 Extension, eshaust cover, starboard 5 inch longer parts
76 0305519 Rod, shift, lower, long
