EVINRUDE-JOHNSON 304724 Gasket, Cover

Write a Review
$6.41
SKU:
304724
Schematic Object Key:
26

EVINRUDE-JOHNSON 304724 Gasket, Cover

$6.41

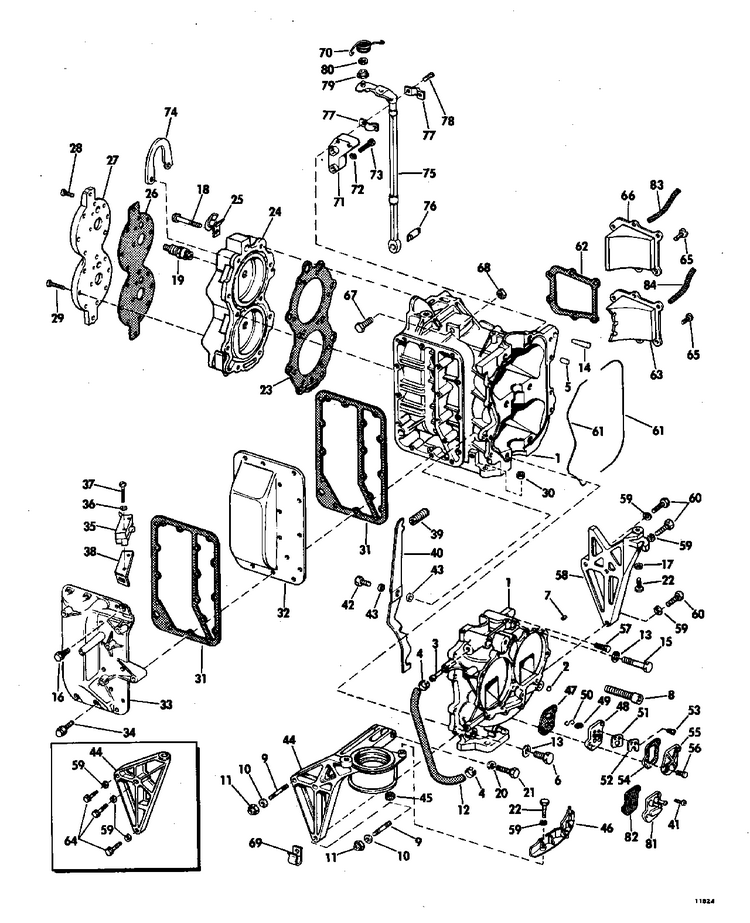

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 304724 Gasket, Cover

Schematic Object Key : 26

Product Description: Gasket, Cover

Category: JOHNSON / 1971 / 40 / 40RL71G 1971 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0384594 Cylinder c'case assy
2 0300788 Plug expansion
3 0303423 ,nipple,oil hose
4 0302647 Clamp
5 0304178 Pin, dowel
6 0302600 Screw
7 0307587 Plug, crankcase
8 0302579 Screw, allen
9 0308354 Stud, starter bracket
10 0329241 Washer This part replaces 0306482.
11 0121731 Nut, hook, front This part replaces 0308355.
12 0203909 Hose, oil return
13 0300343 Washer, crankcase to cylinder
14 0300402 Taper pin
15 0301431 Screw
16 0307608 Screw
17 0306407 Locckwasher,cover latch
18 0305027 Screw
19 0378101 Spark plub, champion j4j
19 0378320 Spark plug, ac m42k
20 0306325 . . lockwasher, solenoid screw
21 0305006 Screw
22 0306409 Screw, anchor block lower
23 0307069 Gasket, cylinder head
24 0316243 Cylinder head
25 0310466 Clamp, high tension leads
26 0304724 Gasket, cover
27 0554339 Cover, cylinder head
28 0306409 Screw, anchor block lower
29 0306418 Screw, anchor block lower
30 0306422 Nut
31 0304762 Gakset, exhaust cover
32 0304761 Cover, exhaust, inner
33 0312654 Exhause cover, outer
34 0306418 Screw, anchor block lower
35 0386056 Safety switch assy This part replaces 0379542.
36 0310498 Washer
37 0307922 Screw
38 0307881 Bracker, safety switch
39 0302587 Spring, shifter lock
40 0316716 Shifter lock
41 0307466 Scres, bowl to body
42 0322781 Screw, lockout lever boss This part replaces 0316605.
43 0325542 Bushing This part replaces 0316603.
44 0305078 Bracket, starboard
44 0305084 Backet, starboard
45 0304847 Seal, starter motor
46 0307475 Guard, ring gear
47 0309427 Gakset, drain valve
48 0379094 Leaf valve plate screen assy
49 0310628 Screeen
50 0310629 Spring
51 0302031 Leaf plate
52 0304655 Plate
53 0303761 Screw
54 0302032 , drain valve cover
55 0302033 Cover
56 0305346 Screw
57 0300646 Screw, clamp, fuel filter
58 0305077 Bracket, port
59 0306396 Lock washer, control to boat
60 0307471 Screw
61 SEAL, Cyl>to c'case
62 0304784 Gasket, by oass cover
63 0385108 By pass cover, lower
63 0308183 By pass cover, lower
64 0308077 Screw
65 0306487 Screw
66 0385107 By pass cover upper
66 0313871 By pass cover, upper
67 0316369 Screw, armature plate stop
68 0313022 Locknut, double ended bolt This part replaces 0900178.
69 0310441 Clamp, small This part replaces 0310493.
70 0316368 Spring
71 0304941 Bracket
72 0302376 Lockwasher
73 0306049 Screw
74 0312050 Bracket, lift
75 0378308 Control lever
76 0329197 Pin, control lever This part replaces 0304155.
77 0305609 Bearing clamp
78 0302948 Screw
79 0307841 Bushing, control lever
80 0305831 Shim
81 0385109 Hsg. nipple valve assy
82 0317254 Gasket, c'case to hsg
83 0772568 Flexible, solénoïde d'amorçage vers raccord amorçage tribord, 14" 356 mm This part replaces 0317251.
84 0772568 Flexible, solénoïde d'amorçage vers raccord amorçage tribord, 14" 356 mm This part replaces 0317252.
0379945 0379945 Gasket set, power head, less cylinder head gasket
