EVINRUDE-JOHNSON 305169 Gasket, By-Pass Cover

Write a Review
$3.99
SKU:
305169
Schematic Object Key:
22

EVINRUDE-JOHNSON 305169 Gasket, By-Pass Cover

$3.99

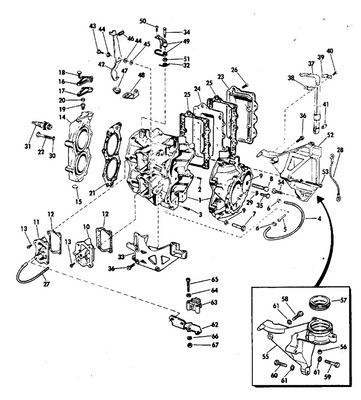

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 305169 Gasket, By-Pass Cover

Schematic Object Key : 22

Product Description: Gasket, By-Pass Cover

Category: EVINRUDE / 1968 / 65 / 65853B 1968 / POWERHEAD GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0305650 Cotter pin
2 0120590 Washer lever arm, pulley
3 0313737 Rod, throttle control
4 0204757 Bow washer
5 0313739 Spring, control shaft
6 0308532 Bague, levier de verrouillage
7 0554516 Ret. ring, shaft to lever
8 0307947 Bumper, lever
9 0395448 Ball socket assy This part replaces 0313700.
10 0395448 Ball socket assy This part replaces 0313703.
11 0313684 Screw, bearing clamp
12 0313686 Clamp, bearing
13 0329197 Pin, control lever This part replaces 0304155.
14 0313717 Shaft, control throttle
15 0303398 Screw, lower This part replaces 0302030.
16 0313735 Bracket, control shaft
17 0310441 Clamp, small This part replaces 0310493.
18 0300646 Screw, clamp, fuel filter
19 0328701 Lockwasher, double ended bolt This part replaces 0303480.
20 0330151 Cable clamp, filter This part replaces 0310440.
21 0305059 Cover, by pass
22 0305169 Gasket, by pass cover
23 0908158 Screw, anode This part replaces 0305284.
24 0376349 Lead, ground
25 0381992 Spark plug, ac v4 off
25 0383181 Spark plug, a c v4 off
26 0300646 Screw, clamp, fuel filter
27 0310947 Clamp
28 0307710 Cover
29 0318334 Gasket, cover port This part replaces 0307257.
30 0312663 Cover, by pass
31 0310441 Clamp, small
32 0586180 Ensemble solénoïde This part replaces 0380095.
33 0306325 . . lockwasher, solenoid screw
34 0132823 Screw, lever clamp
35 0302376 Lockwasher
36 0305602 Clamp, shift lock lever
37 0313894 Lever, shift lock
38 0309263 Bolt, handle This part replaces 0307342.
39 0381835 Exh.cover screw assy.
40 0306049 Screw
41 0305176 Gasket
42 0305746 Cover, exh.inner
43 0308742 Screw, crankcase to cylinder
44 0313964 Cover, water passage
45 0305435 Gasket
46 0324825 Clamp, cylinder head hose This part replaces 0305646.
47 0305644 Hose, cylinder head port
48 0305645 Hose, cylinder head starboard
49 0305027 Screw
50 0311349 Nut, solenoid
51 0313756 Cylinder head, port
52 0313757 Cyl.head, stbd.
53 0553753 Gasket, cyl.head
54 0300646 Screw, clamp, fuel filter
55 0382684 Cyl. c case assy.
56 0552199 Clamp
57 0303617 Hose This part replaces 0307402.
58 0303492 Fitting, crankcase
59 0304178 Pin, dowel
60 0305070 Axe, carter moteur vers bloc
61 0305124 Plug
62 0306392 .plug, core
63 0306044 Plug
64 0305069 Screw, center
65 0308752 Screw, main brg. upper lower
66 0306442 . core plug
67 0305068 Bushing
68 0310872 Stud
69 0305121 Plug, cylinder
70 SEAL, Cyl.to crankcase
71 0309330 Screw, vacuum switch
72 0312265 Pin, control shaft to rod
73 0328731 Screw, battery cable clamp This part replaces 0307055.
74 0120052 . . lockwasher, solenoid screw
75 0306556 Nut, leaf screw
76 0380096 Cable, starter to solenoid
77 0311217 Sleeve
78 0330112 Clamp, solenoid This part replaces 0311218.
79 0303311 Scr,clamp,eng cable
80 0311321 Clamp, cable
81 0330143 Stud, ground This part replaces 0311328.
82 0306488 Lock washer, solenoid ground
83 0311375 Nut
84 0330151 Cable clamp, filter This part replaces 0309322.
85 0312374 Screw, idle adj.
86 0308993 Ressort, friction d'accélération
87 0203688 Nut
88 0331025 Screw This part replaces 0308751.
89 0321164 Plug This part replaces 0307544.
90 3852420 Locknut, throttle lever This part replaces 0314442.
91 0314183 Lever, shift interlock
92 0314184 Sleeve, interlock lever
93 0314185 Spring, interlock lever
94 0314186 Screw, cover and lever to cyl.
95 0308532 Bague, levier de verrouillage
96 0203622 Washer
97 0328701 Lockwasher, double ended bolt This part replaces 0303480.
98 0330151 Cable clamp, filter This part replaces 0309041.
99 0309040 Clamp, exhaust cover
100 0313773 Retainer 1 coil cylinder head, starboard
101 0313774 Retainer cyl. head cover
102 0552062 Screw, clamp
103 0314407 Screw, cylinder
104 0313771 Ret.,leads
105 0306419 Screw
106 0314125 Bushing, shift handle linkage rod
107 0313719 Lever, spark advance
108 0314409 Washer, ret. to control shaft
109 0313718 Lift bracket, cylinder
110 0314515 Screw
112 0306488 Lock washer, solenoid ground
114 0306358 Flat washer, helm mounting
0381038 0381038 Powerhead gasket set less cyl.head gasket
