EVINRUDE-JOHNSON 305198 Gasket, Thermostat

Write a Review
$6.23
SKU:
305198
Schematic Object Key:
27

EVINRUDE-JOHNSON 305198 Gasket, Thermostat

$6.23

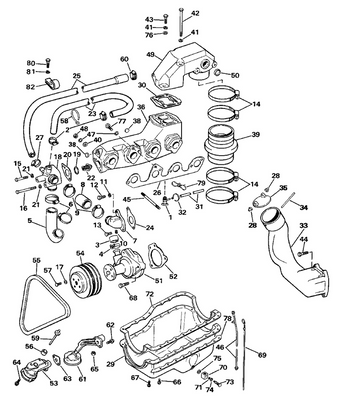

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 305198 Gasket, Thermostat

Schematic Object Key : 27

Product Description: Gasket, Thermostat

Category: EVINRUDE / 1970 / 40 / 40073A 1970 / POWERHEAD GROUP ELECTRIC SHIFT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0384445 Cyl crankcase assy
2 0300402 Taper pin
3 0304178 Pin, dowel
4 0307256 Fitting, lubrication
5 0300343 Washer, crankcase to cylinder
6 0301431 Screw
7 0302579 Screw, allen
8 0302600 Screw
9 0300788 Plug expansion
10 0307587 Plug, crankcase
11 0308354 Stud, starter bracket
12 0329241 Washer This part replaces 0306482.
13 0121731 Nut, hook, front This part replaces 0308355.
14 0303423 ,nipple,oil hose
15 0308506 Hose, oil line
16 0303473 Clamp, hose
17 0316369 Screw, armature plate stop
18 0313022 Locknut, double ended bolt This part replaces 0900178.
19 0316368 Spring
20 0384444 Thermostat
21 0378176 Switch tem p
22 0309040 Clamp, exhaust cover
23 0382816 Cylender head assy
24 0306392 .plug, core
25 0305199 Spring, control valve
26 0305197 Valve, pressure control
27 0305198 Gasket, thermostat
28 0305266 Housing, thermostat
29 0310466 Clamp, high tension leads
30 0305196 Gakset, thermostat cover
31 0305085 Cover, thermostat
32 0308742 Screw, crankcase to cylinder
33 0306408 Screw
34 0307759 Cover, cylinder head
35 0307762 Gasket, cover
36 0307069 Gasket, cylinder head
37 0304762 Gakset, exhaust cover
38 0379518 Exchanger, heat
39 0204175 Gasket, heat exchange
40 0310447 Spacer, heat exchange
41 0310177 Cover, exhaust cover
42 0312653 Exhaust cover, outer
43 0306418 Screw, anchor block lower
44 0330151 Cable clamp, filter This part replaces 0309041.
45 0308706 Nut
46 0306445 Elbow, heat exchanger
47 0310450 Shield heat
48 0302812 Screw, ground terminal
49 0307608 Screw
50 0386056 Safety switch assy This part replaces 0379542.
51 0310498 Washer
52 0307922 Screw
53 0307881 Bracker, safety switch
54 0378101 Spark plub, champion j4j
54 0378320 Spark plug, ac m42k
55 0381542 Guard pin, ring gear
56 0306396 Lock washer, control to boat
57 0306409 Screw, anchor block lower
58 0305084 Backet, starboard
59 0304847 Seal, starter motor
60 0306325 . . lockwasher, solenoid screw
61 0305006 Screw
62 0309427 Gakset, drain valve
63 0379093 Drain plate screen assembly
64 0310628 Screeen
65 0310629 Spring
66 0302031 Leaf plate
67 0304655 Plate
68 0303761 Screw
69 0302032 , drain valve cover
70 0302033 Cover
71 0305340 Screw, drain valve cover
72 0300646 Screw, clamp, fuel filter
73 0305679 Bracket, generator mounting
74 SEAL, Cylinder to crankcase
75 0304784 Gasket, by oass cover
76 0313871 By pass cover, upper
77 0308183 By pass cover, lower
78 0310441 Clamp, small This part replaces 0310493.
79 0312812 Screw, idle adjust
80 0300487 Screw, by pass cover
81 0315950 Retaining ring
82 0315949 Suport, armature plate
83 0332070 Screw, retaining plate This part replaces 0304442.
84 0303615 Gasket
85 0438556 Fuel pump assy. This part replaces 0382354.
86 0310302 Screw pump assy
87 0312675 Screen
88 0330061 Screw, cap This part replaces 0312677.
89 0312678 ,cap filter
90 0338879 Gasket, cap to pump, upper This part replaces 0312679.
91 0312597 Lever, idle adjusting
92 0314417 Screw, pump to base
93 0303617 Hose This part replaces 0552646.
94 0203688 Nut
95 0303617 Hose This part replaces 0303601.
96 0552199 Clamp
97 0329197 Pin, control lever This part replaces 0304155.
98 0378308 Control lever
99 0304941 Bracket
100 0302376 Lockwasher
101 0306049 Screw
102 0308993 Ressort, friction d'accélération
103 0305609 Bearing clamp
104 0302948 Screw
105 0307841 Bushing, control lever
106 0305831 Shim
107 0315951 Retainer washer
108 0312050 Bracket, lift
109 0305027 Screw
0379381 0379381 Power head gasket set
