EVINRUDE-JOHNSON 305265 Bushing, Pivot Shaft, Lower

Write a Review
$8.00
SKU:
305265
Schematic Object Key:
71

EVINRUDE-JOHNSON 305265 Bushing, Pivot Shaft, Lower

$8.00

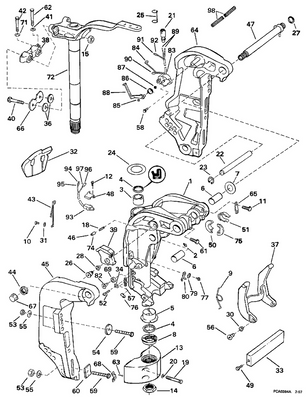

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 305265 Bushing, Pivot Shaft, Lower

Schematic Object Key : 71

Product Description: Bushing, Pivot Shaft, Lower

Category: EVINRUDE / 1968 / 40 / 40802A 1968 / LOWER UNIT GROP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0310135 Bushing, pilot
2 0305094 Housing, exhaust inner
3 0305496 Locknut, alternator to bracket
4 0305281 Seal, inner exh tube, lower
5 0310137 Gasket, exhaust housing
6 0303890 Acorn nut, lower side mount
7 0379385 Exhaust housing assy
8 0307256 Fitting, lubrication
9 0307541 Plug, expansiion
10 0304517 Stud, cylinder
11 0306242 Gasket, inner housing
12 0307463 Plug, choke boss
13 0309023 Screw, inner housing
14 0309325 Stabilizer
15 0329531 Pin, tilt arm This part replaces 0305878.
16 0305877 Bow washer, clevis pin
17 0306376 Cotter pin
18 0305583 Clevis ,shift lever shaft
19 0328740 Nut, throttle friction This part replaces 0301472.
20 0308776 O ring
21 0311489 Bushing
22 0127386 Rondelle This part replaces 0303913.
23 0363254 Nut, stern bracket screw This part replaces 0303912.
24 0377963 Mount, rubber, upper front
25 0377321 Clamp, exh. relief boot
26 0305349 Retainer , exhaust relief spring
27 0305384 Boot, exhaust relief
28 0305385 Spring, exh. relief boot
29 0302479 Screw, starter mounting This part replaces 0306416.
30 0305581 Bearing, thrust
0378054 0378054 Shift lever shaft assy
31 0307449 Shaft, shift lever
32 0303191 "o" ring, lever shaft
33 0307450 "o" ring, large
34 0307451 Bearing, sleeve
35 0307452 Spacer, shift lever shaft
36 0328701 Lockwasher, double ended bolt This part replaces 0303480.
37 0380329 Lever, lock out
38 0306277 Drive pin, connector
39 0377576 Housing, shaft universal
40 0304027 Screw
41 0305573 Spring, shift universal
42 0305572 Seat, shift universal spg
43 0329241 Washer This part replaces 0305981.
44 0379022 Mount, rubber side
45 0307027 Screw, lever to shaft
46 0305282 Bolt, bowl suction piece
47 0305263 Gasket, cover plate
48 0305200 Plate, cover
49 0309337 Cotter pin, stabilizer
50 0307057 Screw, lever to carburetor
51 0304168 Gasket, mount, lower side
52 0306320 Nut
53 0377964 Mount, rubber, lower front
54 0303886 Lockwasher
55 0330437 Screw This part replaces 0303888.
56 0305672 Ring, seal, exhaust housing
57 0304026 Grommet
58 0202591 O ring
59 0377124 Pivot shaft assy
60 0200737 Plug, expansion
61 0202103 Plug, expansion
62 0302540 "o" ring, carbon
63 0551113 Ressort de friction de direction
64 0377864 Friction band assy
65 0307071 Nut, friction band screw
66 0307072 Screw, friction band
67 0553575 Ring , retaining
68 0305374 Pin, friction brake
69 0309326 Cover, exhaust, front
70 0305264 Bushing, pivot shaft, lower
71 0305265 Bushing, pivot shaft, lower
72 0303397 Screw, cover plate
73 0305740 Plate, cover
74 0307056 Screw, mount to cover
75 0305307 Retainer, pivot shaft
76 0377398 Rod, shift, upper
77 0305495 Bolt, tilting
78 0300364 Link, conical, tilt shaft
79 0383458 Stern bracket assembly
80 0388052 Clamp screw, handle ay, al This part replaces 0379799.
81 0310938 . plate, swivel
82 0302420 . retainer
83 0160084 Ball
84 0307455 Spring
85 0307456 Pin
86 0307457 Fitting, lube
87 0302051 Spring tilting bolt
88 0305202 Ring, thrust upper
89 0305270 O ring
90 0303863 Arm, manual locking elver
91 0306265 Spring, bolt to arm
92 0305365 Bumber, tilting, swivel bracket
93 0303956 Clamp, hose, small
94 0305204 Link, reverse lock
95 0306376 Cotter pin
96 0303955 Rod, reverse lock
97 0303957 Link, reverse lock arm
98 0305201 Ring, thrust , lower
99 0305271 "o" ring, lower
100 0306486 Washer, screw, negative
101 0313268 Screw, bracket to shaft
102 0379485 Rod, thrust
103 0310377 Spring, thrust rid
104 0310378 Plate, stern bracket
105 0310379 Screw
106 0306433 Washer
107 0302637 Washer, conical tilt bolt
108 0305269 Lever, locking, reverse
109 0305353 Spring, reverse lock
110 0379506 Swivel bracket assembly
111 0313607 Lube fitting
