EVINRUDE-JOHNSON 305513 Screw

Write a Review
$5.29
SKU:
305513

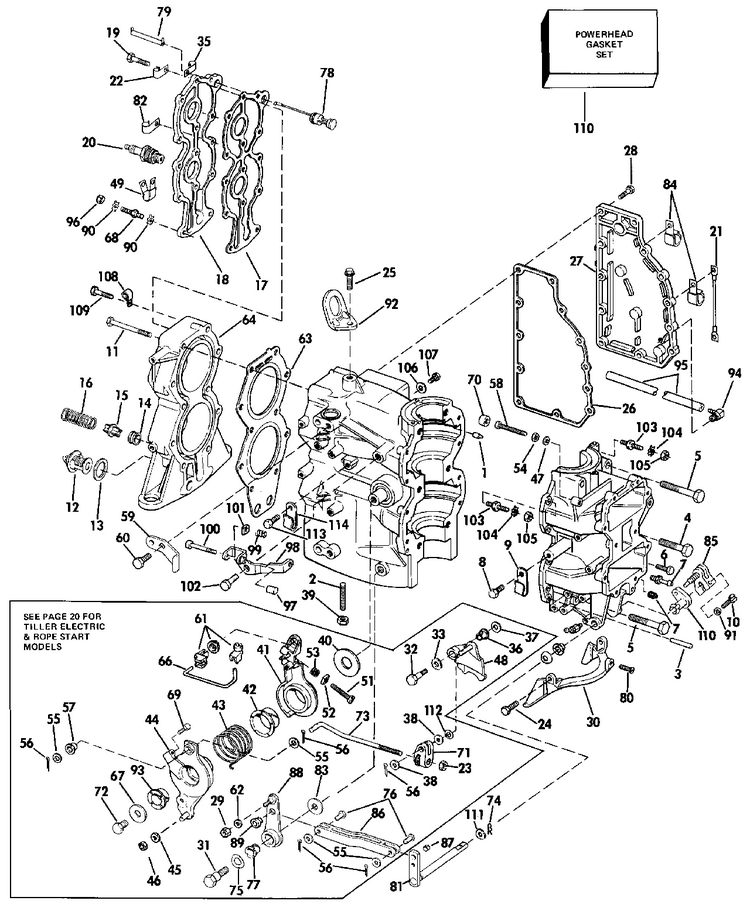

Schematic Object Key:
72

EVINRUDE-JOHNSON 305513 Screw

$5.29

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 305513 Screw

Schematic Object Key : 72

Product Description: Screw

Category: EVINRUDE / 1986 / 50 / E50BECDE 1986 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0396913 0396913 Cylinder c'case assy.
1 0304178 Pin, dowel
2 0314616 Stud
3 0305070 Axe, carter moteur vers bloc
4 0308747 Screw, crankcase to cylinder
5 0308752 Screw, main brg. upper lower
6 0308742 Screw, crankcase to cylinder
7 0397017 Flame arrester fitting
7 0321164 Plug
8 0328731 Screw, battery cable clamp This part replaces 0329265.
9 0310441 Clamp, small
10 0328695 Clamp, engine cable This part replaces 0323480.
11 0307267 Screw
12 5005440 Thermostat This part replaces 0378065.
13 0310058 Gasket, thermostat
14 0316132 Gormmet, valve
15 0335493 Valve, pressure relief This part replaces 0317653.
16 0315626 Spring, valve
17 0315538 Gasket, cover to head
18 0322898 Cover, cylinder head
19 0323359 Screw, head cover
20 0386941 Spark plub,champion l77j4
20 0502180 Spark plug, champion ql77jc4 This part replaces 0387633.
20 0390659 Spark plug, champion ql 78v
21 0376349 Lead, ground
22 0330151 Cable clamp, filter This part replaces 0309322.
23 0328741 Nut, input stud
24 0551793 Screw
25 0314515 Screw
26 0325211 Gasket
27 0437506 Cover plug assy, water passage This part replaces 0325308.
28 0302288 Bolt
29 0328064 Nut
30 0317714 Frame, crank case
31 0318205 Shoulder screw, shift lever
32 0316037 Screw, cover to gearcase
33 0328708 Washer, injector screw
34 0306012 Bow washer
35 0309040 Clamp, exhaust cover
36 0311015 Bushing, pawl
37 0328703 Washer, screw hook
38 0328702 Washer
39 0316355 But, carburetor mounting This part replaces 0315204.
40 0314098 Washer, throttle lever
41 0320971 Lever, spark advance
42 0314003 Bshing, spark lever
43 0314094 Link, throttle lever to cam
44 0389123 Lever throttle control
45 0328737 Washer This part replaces 0306015.
46 0328064 Nut
47 0302290 Washer
48 0398134 Throttle cam
49 0330151 Cable clamp, filter This part replaces 0310440.
50 0319253 Fitting, c c lubrication
51 0306337 Screw, adjustment
52 0203688 Nut
53 0308993 Ressort, friction d'accélération
54 0328741 Nut, input stud This part replaces 0304753.
55 0328702 Washer
56 0305650 Cotter pin
57 0314125 Bushing, shift handle linkage rod
58 0316101 Screw, advance
59 0320536 Stop, idle adjsutment
60 0312316 Capscrew, mounting brkt
61 0395448 Ball socket assy
62 0328737 Washer This part replaces 0306015.
63 0335359 Gasket, cylinder head This part replaces 0327795.
64 0325602 Cylinder head
64 0325603 Cylinder head
65 0312708 Bushing
66 0329890 Clip,throttle shaft
67 0314099 Rondelle, vis, pignon de distribution
68 0330143 Stud, ground
69 0308825 Screw roller
70 0314416 Bumber, advance screw
71 0397018 Yoke thumbwheel
72 0305513 Screw
73 0332142 Link, lever to cam
74 0330941 Pin, retainer
75 0553766 Bow washer
76 0318197 Pin, link
77 0315081 Bushing, shoulder screw
78 0386686 Switch temp
79 0303806 Tubing
80 0130524 Screw, frame to c case
81 0396832 Shift lever
82 0310439 Clamp, battery cable
83 0318384 Washer, shoulder screw
84 0330151 Cable clamp, filter This part replaces 0310440.
85 0396831 Lever shift rod
86 0327832 Link, shift lever
87 0320302 Bushing, laink to lever
88 0393697 Shift lever bushing pkg.
89 0321281 Bushing, shift lever
90 0328701 Lockwasher, double ended bolt
91 0303701 Lock washer, adjustment screw
92 0326023 Lift bracket
93 0314002 Bushing
94 0321886 Elbow
95 0327721 Hose, elbow to tee
96 0311375 Nut This part replaces 0316659.
97 0318660 Bumper, screw, throttle stop
98 0331329 Bracket, idle speed
99 0308993 Ressort, friction d'accélération
100 0328699 Lever, spark control
101 0328740 Nut, throttle friction
102 0319590 Screw, plate 3 8 16 x .75
103 0330143 Stud, ground
104 0328701 Lockwasher, double ended bolt
105 0328740 Nut, throttle friction
106 0303630 Washer
107 0330057 Screw plug
109 0306831 Battery cable assy.
110 0331765 Bushing rod keeper
111 0202026 Washer, rod
112 0328734 Bow washer
114 0310442 Clamp, tps lead
