EVINRUDE-JOHNSON 305738 Spring, Lock | PalmerPower
close
close
click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Boat Repair Service

    Diagnostics, Repairs, and Maintenance

  • Fast Delivery

EVINRUDE-JOHNSON 305738 SPRING C=6

Write a Review
$9.99
SKU:
305738-OMC
Schematic Object Key:
80

EVINRUDE-JOHNSON 305738 SPRING C=6

$9.99

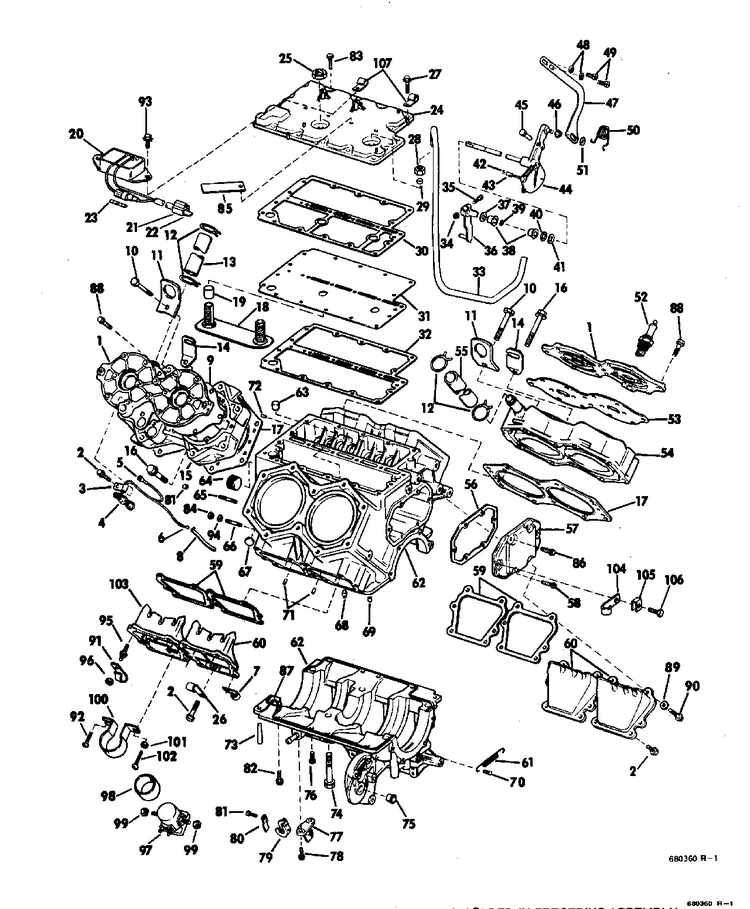

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 305738 Spring, Lock

Schematic Object Key : 80

Product Description: Spring, Lock

Category: STERN DRIVE / 1968 / 90 / DUE-15S 1968 / POWERHEAD GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0307710 Cover
2 0300646 Screw, clamp, fuel filter
3 0310441 Clamp, small
4 0378176 Switch tem p
5 0510818 Terminal, ring This part replaces 0308175.
6 0308808 Cosse, plate
7 0310441 Clamp, small This part replaces 0310493.
8 0303806 Tubing
9 0318335 Cover, cylinder head This part replaces 0307709.
10 0308817 Screw
11 0308823 Lift bracket
12 0324825 Clamp, cylinder head hose This part replaces 0305646.
13 0310651 Hose,starboard
14 0308992 Anchor
15 0309995 Cylinder head,starboard
16 0307267 Screw
17 0306048 Gasket
18 0378727 Heat exchanger
19 0308701 Spacer
20 0581580 Voltage regulator This part replaces 0580651.
21 0510684 .housing, connector
22 0310680 . terminal
23 0510714 Fuse 3ab 30 amp
24 0312666 Exhaust cover,outer
25 0308706 Nut
26 0330151 Cable clamp, filter This part replaces 0309041.
27 0306049 Screw
28 0306383 Nut
29 0306327 Ball sleeve
30 0308671 Gasket
31 0308669 Exhaust cover,inner
32 0305176 Gasket
33 0308884 Tubing
34 0308824 Nut
35 0308754 Screw
36 0378771 Arm and insert assy
37 0308987 Washer
38 0308985 Bushing
39 0308986 Retaining ring
40 0303886 Lockwasher
41 0305234 Bow washer
42 0307529 "o" ring, cam follower
43 0305232 Roller, cam foller
44 0378752 Throttle control
45 0308825 Screw roller
46 0307841 Bushing, control lever
47 0308796 Link
48 0328737 Washer This part replaces 0306015.
49 0306014 Screw, throttle adjustment
50 0316368 Spring This part replaces 0307354.
51 0305831 Shim
52 0378101 Spark plub, champion j4j
52 0378320 Spark plug, ac m42k
52 0378368 Spark plug, auto lite a21x
53 0318334 Gasket, cover port This part replaces 0307257.
54 0309994 Cylinder head,port
55 0310650 Hose,port
56 0305435 Gasket
57 0307757 Cover
58 0306408 Screw
59 0307133 Gasket
60 0310532 Cover by pass
61 0307408 Spring
62 0379647 Cylinder crankcase assembly
63 0306044 Plug
64 0305124 Plug
65 0310663 Stud,long
66 0310662 Stud,short
67 0310221 Core plug
68 0304178 Pin, dowel
69 0310506 Plug
70 0305820 Drivescrew
71 0310507 Plug
72 0310508 Plug
73 0305070 Axe, carter moteur vers bloc
74 0308752 Screw, main brg. upper lower
75 0305068 Bushing
76 0300646 Screw, clamp, fuel filter
77 0308833 Bracket,lock
78 0308755 Screw
79 0305737 Lock, shift
80 0305738 Spring, lock
81 0303551 Screw
82 0309263 Bolt, handle This part replaces 0307342.
83 0331025 Screw This part replaces 0308751.
84 0306320 Nut
85 0312326 Cover,heat exchanger inlet
86 0308742 Screw, crankcase to cylinder
87 SEAL
77 0300646 Screw, clamp, fuel filter
89 0306358 Flat washer, helm mounting
90 0306409 Screw, anchor block lower
91 0330151 Cable clamp, filter This part replaces 0309846.
92 0303311 Scr,clamp,eng cable
93 0304607 Pulse pack screw assy
94 0306453 Lockwasher, fuel pump
95 0330143 Stud, ground This part replaces 0311328.
96 0311375 Nut
97 0586180 Ensemble solénoïde This part replaces 0380095.
98 0311217 Sleeve
99 0303783 Nut
100 0312490 Bracket
101 0308335 Clamp, coil
102 0306519 Scr,coil clamp
104 0312266 Clamp,tube to water cover
105 0312267 Nut,clamp
106 0510388 Screw,clamp nut
0382118 0382118 Powerhead gasket set less cylinder head gask et
