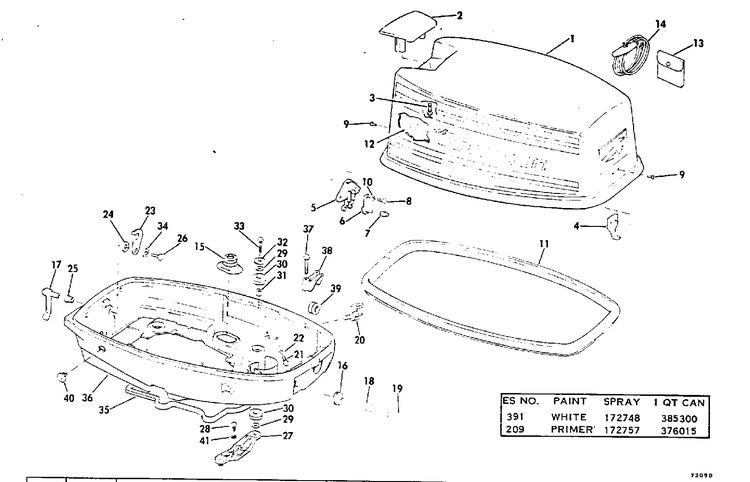

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 34
Product Description: Lockwasher,Cover Latch
Category: JOHNSON / 1977 / 35 / 35E77C 1977 / MOTOR COVER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0387946 | Motor cover assy.25 hp | |
| 1 | 0387947 | Motor cover assy.25 hp | |
| 1 | 0387948 | Motor cover assy.35 hp | |
| 1 | 0387949 | Motor cover assy.35 hp | |
| 2 | 0381165 | Tilt hand screw assy | |
| 3 | 0312299 | Screw, cable clamp | |
| 4 | 0320400 | Hook, engine cover | |
| 5 | 0316172 | Anchor block | |
| 6 | 0384332 | Lide pin | |
| 7 | 0308199 | . roller, cam follower | |
| 8 | 0908158 | Screw, anode | This part replaces 0305937. |
| 9 | 0554355 | Rivet | |
| 10 | 0328701 | Lockwasher, double ended bolt | This part replaces 0303480. |
| 11 | 0316225 | Seal, engine cover | |
| 12 | 0318604 | Sound blanket | |
| 12 | 0320151 | Sound blanket | |
| 13 | 0314494 | Bag emergency starter rope | |
| 14 | 0378347 | Rope ay, starter | |
| 15 | 0304019 | Crommet, control shaft | |
| 16 | 0204457 | Gommet, choke knob | |
| 17 | 0321318 | Handle, latch | |
| 18 | 0321719 | Knob, choke | |
| 19 | 0315521 | Insert | |
| 20 | 0393334 | Connector | This part replaces 0376154. |
| 21 | 0552062 | Screw, clamp | |
| 22 | 0306488 | Lock washer, solenoid ground | |
| 23 | 0321319 | Lever, latch, lower engine cover | |
| 24 | 0553766 | Bow washer | |
| 25 | 0553769 | Bushing | |
| 26 | 0306487 | Screw | |
| 27 | 0325868 | Bracket, cove to exh. hsg., front | This part replaces 0320410. |
| 28 | 0306487 | Screw | |
| 29 | 0329241 | Washer | This part replaces 0306482. |
| 30 | 0316354 | Engine cover support grommet | |
| 31 | 0302406 | Sleeve | |
| 32 | 0203622 | Washer | |
| 33 | 0329240 | Screw | This part replaces 0314451. |
| 34 | 0306507 | Lockwasher,cover latch | |
| 35 | 0320158 | Seal, housing to cover | |
| 36 | 0388158 | Motor cover, lower | |
| 37 | 0305652 | Screw, arm to housing | This part replaces 0310743. |
| 38 | 0325972 | Cable clamp | This part replaces 0313786. |
| 39 | 0313779 | Nut, shorting switch | |
| 40 | 0321885 | Nipple | |
| 41 | 3854292 | Lock washer, screw to hsg. | This part replaces 0304145. |
| 0388403 | 0388403 | Decal set,manual 25 hp | |
| 0388404 | 0388404 | Decal set,electric 25 hp | |
| 0388405 | 0388405 | Decal set,manual 35 hp | |
| 0388406 | 0388406 | Decal set,electric 35 hp | |
| 0387002 | 0387002 | Owner's manual |
