EVINRUDE-JOHNSON 307025 Screw,Friction Adjusting Screw

Write a Review
$14.99
SKU:
307025
Schematic Object Key:
40

EVINRUDE-JOHNSON 307025 Screw,Friction Adjusting Screw

$14.99

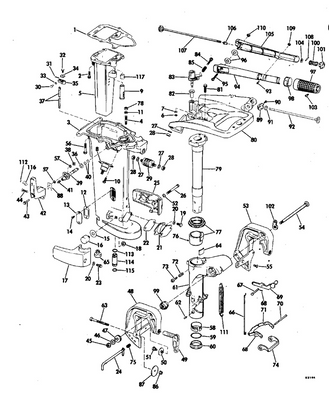

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 307025 Screw,Friction Adjusting Screw

Schematic Object Key : 40

Product Description: Screw,Friction Adjusting Screw

Category: EVINRUDE / 1970 / 60 / 60073B 1970 / PUSH BUTTON REMOTE CONTROL GROUP ELECTRIC SHIFT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0279309 0279309 Remote control assembly, less throttle cable
1 0120001 Clamp, hose
2 0510469 Tab
3 0205038 Screw, cover plate
4 0206426 Transfer, choke inst
5 0205042 Screw, switch to lever
6 0205046 Spring, roller
7 0205161 Bracket, selector switch
8 0206400 Housing
9 0206401 Side plate, rear
10 0206402 Adjustment link
11 0206403 Cover plate, pushbotton
12 0206404 Yoke, pushbotton
13 0206407 Throttle lever
14 0279308 Side plate assembly
15 0206406 Plate, front
16 0206709 Knob, throttle lever
17 0206414 Lockwasher, pivot screw
18 0206415 Friction adjusting screw
19 0206416 Knob, adj. screw
20 0206417 Nut friction adjunstment screw
21 0900185 Ecrou
22 0206420 Grommet, cable
23 0279176 Blocking diode assembly
24 0510780 8 ring termianl
25 0510628 . sleeve
26 0308688 Washer
27 0279171 Arm pad assy
28 0316245 Clamp
29 0279179 Lead assembly, hot light to ignition
30 0510780 8 ring termianl This part replaces 0204037.
31 0279177 Lead assembly ignition switch to choke switc
32 0510780 8 ring termianl This part replaces 0204037.
33 0204034 Terminal, ring
34 0279178 Lead assembly, hot light to instrument cable
35 0310115 Screw, mounting
36 0305230 Screw
37 0279173 Indicator light assembly hot
38 0303715 Washer, rivet
39 0316166 Washer
40 0307025 Screw,friction adjusting screw
41 0306376 Cotter pin
42 0308517 Roller, lever to box
43 0308532 Bague, levier de verrouillage
44 0310781 Cache, interrupteur
45 0310782 Ecrou, interrupteur
46 0308038 Screw, idle stop
47 0279172 Instrument cable assembly, long
47 0279174 Instrument cable assembly standard
48 0510780 8 ring termianl
49 0307801 Terminal, ring
50 0204034 Terminal, ring
51 0204040 Ring terminal
52 0305009 Screw
53 0308544 Screw, bracket to box
54 0308546 Link,adjustment
55 0386947 Ignition switch This part replaces 0383493.
56 0304644 . hex nut
57 0309893 .washer, switch
58 0204366 . face nut
59 KEY, Ignition
60 0279090 Selector switch assembly
61 0309556 Button, forward
62 0309559 Button, neutral
63 0309560 Button, reverse
64 0309590 Spring, pushbotton
65 0309437 Clip, drapeau
66 0510781 Tubing, sleeve
67 0306559 Screw, ignition switch
68 0279175 Choke switch assembly
69 0304494 Clamp
70 0206409 Pivot screw
71 0310685 Abchor blcok, trunnion
72 0385407 Battery terminal kit This part replaces 0277708.
73 0303889 .nut
74 0310688 Sapcer, anchor block
75 0205040 Screw, housing to boat
76 0206408 Case guide,control hsg.
77 0310686 Screw
78 0310687 Detent spring, anchor block
79 0308055 ,trunnion cap
80 0173506 Screw This part replaces 0303285.
81 0173506 Screw This part replaces 0303222.
82 0303317 Screw
83 0310729 Spring clip
84 0385956 Guide o ring assy. This part replaces 0377850.
85 0307063 O ring
86 0385407 Battery terminal kit This part replaces 0277709.
87 0912072 Nut, adjustment rod This part replaces 0302861.
88 THROTTLE CABLE, 5' thru 50'
88 0377372 12 feet long life cables
88 0377373 13 feet long life cables
88 0377374 14 feet long life cables
88 0377375 15 feet long life cables
88 0377376 16 feet long life cables
88 0377377 17 feet long life cables
88 0377378 18 feet long life cables
88 0377379 19 feet long life cables
88 0377380 20 feet long life cables
89 0315452 Nut, adjust
90 0385959 Clamp set sc r.assy. This part replaces 0206423.
