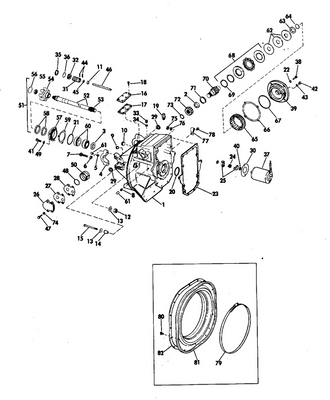

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 11
Product Description: "O" Ring, Cam Follower
Category: JOHNSON / 1984 / 8 / J8RLCRM 1984 / ENGINE COVER - 6 & 8 EVINRUDE MODELS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0282210 | Engine cov.assy., evinrude | |
| 1 | 0282212 | Engine cov.assy., evinrude | |
| 1 | 0282211 | Engine cov.assy., evinrude | |
| 1 | 0282209 | Engine cov.assy., evinrude | |
| 2 | 0325381 | Sound blanket top | |
| 3 | 0328926 | River, front rear handle | |
| 4 | 0391114 | Hook rear, includes rivets | |
| 5 | 0431940 | Hook front, includes rivets | This part replaces 0391113. |
| 6 | 0329057 | Seal | |
| 7 | 0326909 | Sound blanket, side | |
| 8 | 0326908 | Sound blanket, front | |
| 9 | 0312833 | Handle, latch | |
| 10 | 0329241 | Washer | This part replaces 0306482. |
| 11 | 0307529 | "o" ring, cam follower | |
| 12 | 0325380 | Knob, slow speed | |
| 13 | 0330473 | Choke, lever | This part replaces 0329565. |
| 14 | 0204457 | Gommet, choke knob | |
| 15 | 0325301 | Grommet, knob slow speed | |
| 16 | 0306409 | Screw, anchor block lower | |
| 17 | 0331249 | Washer, handle | This part replaces 0314957. |
| 18 | 0325087 | Seal, engine cover side | |
| 19 | 0394142 | Engine cover, lower | |
| 19 | 0390234 | Engine cover lower | |
| 19 | 0392179 | Engine cover lower | |
| 20 | 0312979 | Eyelet | |
| 21 | 0325088 | Seal, exhaust housing rear, starboard | |
| 22 | 0325823 | Seal, exhaust housing, rear port | |
| 23 | 0302592 | Screw | |
| 24 | 0204445 | Bow washer | |
| 25 | 0331634 | Grommet | This part replaces 0325958. |
| 26 | 0204444 | Bushing | |
| 27 | 0325085 | Sleeve, mount engine cover | |
| 28 | 0322340 | Hinge pin, knob | |
| 29 | 0321885 | Nipple | |
| 30 | 0393334 | Connector | |
| 31 | 0313117 | Scr,clamp,eng cable | |
| 32 | 0328724 | Screw | This part replaces 0312889. |
| 33 | 0328701 | Lockwasher, double ended bolt | This part replaces 0303480. |
| 34 | 0389528 | Cap grommet assembly | |
| 35 | 0308824 | Nut | |
| 36 | 0333345 | Screw | This part replaces 0511291. |
| 37 | 0319701 | Screw, ac lighting cap | |
| 38 | 0325086 | Grommet | |
| 39 | 0327442 | Bushing, cable to engine cover | |
| 40 | 0332146 | Rope guide | This part replaces 0327502. |
| 41 | 0328712 | Ãcrou, montage instrument | This part replaces 0204046. |
| 42 | 0306546 | Lock washer, leaf screw | |
| 43 | 0329566 | Knob, choke | |
| 44 | 0329567 | Screw, knob | |
| 0282238 | 0282238 | Decal set, evinrude | |
| 0282239 | 0282239 | Decal set, evinrude | |
| 0282240 | 0282240 | Decal set, evinrude | |
| 0282250 | 0282250 | Decal set, evinrude | |
| 0209874 | 0209874 | Owner's manual, evinrude | |
| 0209876 | 0209876 | Owner's manual, evinrude |
