EVINRUDE-JOHNSON 307546 Stud

Write a Review
$1.49
SKU:
307546
Schematic Object Key:
38

EVINRUDE-JOHNSON 307546 Stud

$1.49

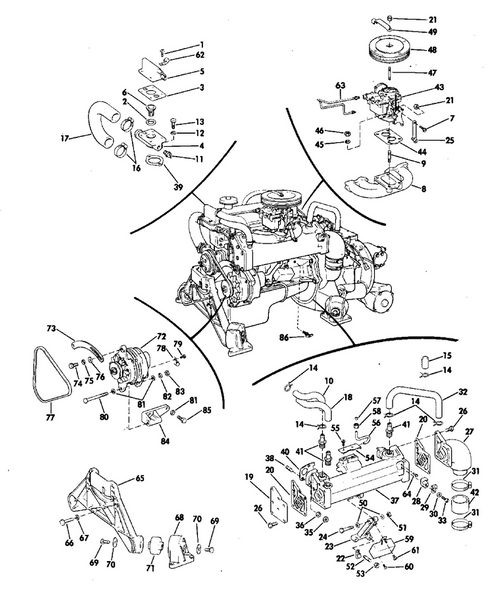

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 307546 Stud

Schematic Object Key : 38

Product Description: Stud

Category: STERN DRIVE / 1969 / 155 / HUFR-69M 1969 / MANIFOLD GROUP 80 HP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0328724 Screw This part replaces 0306010.
2 0310913 Gasket
3 0311567 Gasket
4 0313810 Housing,lower
5 0380639 Housing assembly,upper
6 0383307 Termostat assembly This part replaces 0379754.
7 0307057 Screw, lever to carburetor
8 0382671 Intake manifold stud assembly
9 0552913 Stud, gearcase to exh. hsg.
10 0314056 Hose, inlet
11 0379756 Switch, water temperature
12 0306453 Lockwasher, fuel pump
13 0306322 Bolt, water pump
14 0307899 Clamp
15 0310970 Cap
16 0311076 Clamp, oil pump to bracket
17 0313793 Hose
18 0314055 Hose, outlet
19 0313807 Cover,manifold
20 0313806 Gasket,cover
21 3852420 Locknut, throttle lever This part replaces 0900402.
22 0314254 Clamp
23 0314060 Support,manifold
24 0132871 Screw,support to manifold
25 0382747 Lever pin
26 0313812 Screw
27 0313809 Elbow,manifold
28 0310685 Abchor blcok, trunnion
29 0310687 Detent spring, anchor block
30 0310688 Sapcer, anchor block
31 0310894 Clamp
32 0314057 Hose, manifold to housing
33 0308238 Scerw,anchor block
34 0310971 Hose,elbow to cover
35 0312329 Nut
36 0552914 Washer, guide pan
37 0313808 Manifold,exhaust
38 0307546 Stud
39 0313794 Gasket, housing
40 0313850 Gasket,manifold
41 0310904 Nipple, elbow
42 0313795 Hose, elbow to housing
43 0382733 Carburetor assembly
44 0312240 Gasket, carb to manf 155
45 0306325 . . lockwasher, solenoid screw
46 0306422 Nut
47 0310890 Stud, flame arrestor
48 0382878 Flame arrestor
49 0314058 Connector
50 0308419 Washer
51 0313457 Nut, adapter stud
52 0314038 Stud,carburetor mounting
53 0312329 Nut
54 0314064 Cover, heat exchanger
55 0510193 . screw, clamp cover
56 0314065 Tube,heat exchanger
57 0306344 Ball sleeve
58 0306345 Nut, tube
59 0379779 Voltage regulator
60 0303791 Screw
61 0307057 Screw, lever to carburetor
62 0330151 Cable clamp, filter This part replaces 0309322.
63 0382748 Fuel line assembly
64 0551935 Pin, manifold to anchor block
65 0313845 Mount support, forward
66 0131794 Screw, crankcase to cylinder
67 0300343 Washer, crankcase to cylinder
68 0382618 Bracket, rubber mount
69 0305513 Screw This part replaces 0308739.
70 0312289 Washer
71 0378764 Rubber mount assy.,lower
71 0379931 Rubber mount, rear
72 0381519 Alternator assembly
73 0313798 Brace, alternator
74 0302479 Screw, starter mounting This part replaces 0306416.
75 0306325 . . lockwasher, solenoid screw
76 0306283 Washer, starter spindle
77 0313918 Belt
78 0310503 Clamp
79 0510490 Screw
80 0311391 Scr,altnr to brkt
81 0306405 Washer, c c stud nut
82 0309336 L'washer, alternator to bracket
83 0303889 .nut
84 0313796 Bracket, alternator
85 0310896 Screw
86 0379957 Petchock assy, water drain
