EVINRUDE-JOHNSON 307778 Gasekt, Carburetor Body

Write a Review
$7.79
SKU:
307778
Schematic Object Key:
78

EVINRUDE-JOHNSON 307778 Gasekt, Carburetor Body

$7.79

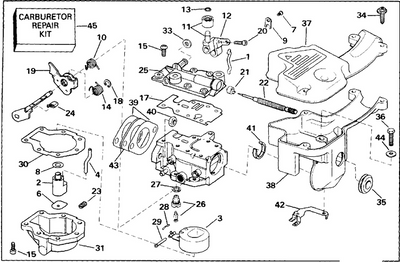

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 307778 Gasekt, Carburetor Body

Schematic Object Key : 78

Product Description: Gasekt, Carburetor Body

Category: EVINRUDE / 1969 / 40 / 40972R 1969 / CARBURETOR GROUP ELECTRIC SHIFT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0311365 Gasekt, leaf plate to c'case
0380243 0380243 Lead plate assembly
2 0311363 .plate, lead
3 0301858 Screw, leaf to plate
4 0304709 Stop , leaf
5 0308938 Leaf
6 0306546 Lock washer, leaf screw
7 0306556 Nut, leaf screw
8 0302104 .screw, choke housing
9 0311364 Gasket, lead plate to manifold
10 0380252 Initake manifold assy.
11 0302822 Stud
12 0307878 Screw, long
13 0304888 Screw
14 0310387 Gasket, carb to manifold
15 0309241 Link, cam follower
16 0204708 Retainer
17 0378985 Lever, throttle
18 0307408 Spring
19 0305650 Cotter pin This part replaces 0306463.
20 0301827 Washer
21 0376477 Cam follower
22 0307824 Rod, thottle control
23 0307565 Pin
24 0304221 Scew,collar to cable
25 0304222 Collar
26 0304226 Pin, pivot
27 0551953 Washer
28 0303049 Cotter pin
29 0378984 Arm screw
30 0308893 Screw
31 0310442 Clamp, tps lead
32 0306381 Nut, elbow sleeve
0382666 0382666 Carburetor assembly
33 0382668 Carb. boby assembly
34 0309242 .shaft, throttle
35 0302696 .spring, throttle shaft
36 0303261 Roll pin, return spring
37 0307596 . washer, throttle shaft
38 0306392 .plug, core
39 0301732 . plug
40 0304105 .plug, body
41 0306099 .plug, fuel passage, long
42 0303962 .plug, core
43 0554208 .valve, throttle
44 0305506 .valve, needle, slow speed
45 0312852 . screw, throt. choke valve
46 0310384 .gasket, choke housing
47 0382036 ,,choke housing assy.
48 0303405 . .plug, core
49 0302104 .screw, choke housing
50 0310496 .lever, choke override
51 0379491 .shaft, choke
52 0307508 .sleeve, choke arm
53 0305243 Plug, core
54 0302674 .valve, choke
55 0303939 ,,bushing, needle valve, slow speed
56 0307583 Packing, valve
57 0306027 Washer, packing
58 0305507 .nut, packing
59 0312941 Guide, solenioid spring
60 0310383 Gasket, choke cover
61 0379539 Cover bi metal, choke
62 0310476 Screw
63 0312940 Spring, arm to plunger
64 0312937 Washer solenoid plunger
65 0381861 Plunger pin assy
66 0310473 Gasket, solenoid
67 0310475 Retainer, solenoid
68 0309040 Clamp, exhaust cover
69 0329594 Screw, cam follower This part replaces 0303737.
70 0312939 Spring, plunger
71 0383598 Solenoid assembly
72 0310572 ,housing, connector
73 0310680 . terminal
74 0396521 Float valve seat assy This part replaces 0378895.
75 0301996 Gasket
76 0375792 Float float arm
77 0302661 Hinge pin, float
78 0307778 Gasekt, carburetor body
79 0303750 Gakset, float bowl
80 0379965 Float bowl assy
81 0306003 .plug, float chamber
82 0328544 Orifice plug, no. 63d This part replaces 0309415.
83 0303630 Washer
84 0307832 Plug, screw
85 0306357 . . . screw, short, 5 8" long
86 0311024 Nozzele,high speed
87 0306417 Scew, spring
88 0307384 Spring, choke
89 0378003 Arm pin,manual choke
90 0304572 . .screw
91 0328737 Washer This part replaces 0306015.
91 0328737 Washer This part replaces 0306015.
92 0378041 Lever, choke
93 0307433 Spring, choke
94 0307434 Bow washer, lever screw
95 0307382 . shoulder screw
96 0307435 Panel, choke control
97 0302812 Screw, ground terminal
98 0379221 Control panel assy
99 0309887 .screw, control panel
100 0305442 Adjusting knob
101 0551517 Screw
102 0312066 Spring, cam follower
103 0306320 Nut
104 0306380 Sleeve, ball, exhaust tube
105 0310958 Fitting, fuel line
106 0310448 Tubing, heat exchanger
107 0306799 L'washer,bracket to hsg.
