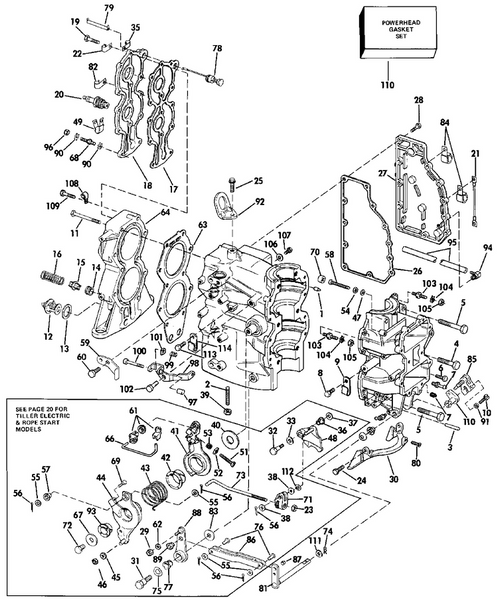

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 35
Product Description: Clamp, Exhaust Cover
Category: EVINRUDE / 1986 / 50 / E50BECDE 1986 / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
0396913 | 0396913 | Cylinder c'case assy. | |
1 | 0304178 | Pin, dowel | |
2 | 0314616 | Stud | |
3 | 0305070 | Axe, carter moteur vers bloc | |
4 | 0308747 | Screw, crankcase to cylinder | |
5 | 0308752 | Screw, main brg. upper lower | |
6 | 0308742 | Screw, crankcase to cylinder | |
7 | 0397017 | Flame arrester fitting | |
7 | 0321164 | Plug | |
8 | 0328731 | Screw, battery cable clamp | This part replaces 0329265. |
9 | 0310441 | Clamp, small | |
10 | 0328695 | Clamp, engine cable | This part replaces 0323480. |
11 | 0307267 | Screw | |
12 | 5005440 | Thermostat | This part replaces 0378065. |
13 | 0310058 | Gasket, thermostat | |
14 | 0316132 | Gormmet, valve | |
15 | 0335493 | Valve, pressure relief | This part replaces 0317653. |
16 | 0315626 | Spring, valve | |
17 | 0315538 | Gasket, cover to head | |
18 | 0322898 | Cover, cylinder head | |
19 | 0323359 | Screw, head cover | |
20 | 0386941 | Spark plub,champion l77j4 | |
20 | 0502180 | Spark plug, champion ql77jc4 | This part replaces 0387633. |
20 | 0390659 | Spark plug, champion ql 78v | |
21 | 0376349 | Lead, ground | |
22 | 0330151 | Cable clamp, filter | This part replaces 0309322. |
23 | 0328741 | Nut, input stud | |
24 | 0551793 | Screw | |
25 | 0314515 | Screw | |
26 | 0325211 | Gasket | |
27 | 0437506 | Cover plug assy, water passage | This part replaces 0325308. |
28 | 0302288 | Bolt | |
29 | 0328064 | Nut | |
30 | 0317714 | Frame, crank case | |
31 | 0318205 | Shoulder screw, shift lever | |
32 | 0316037 | Screw, cover to gearcase | |
33 | 0328708 | Washer, injector screw | |
34 | 0306012 | Bow washer | |
35 | 0309040 | Clamp, exhaust cover | |
36 | 0311015 | Bushing, pawl | |
37 | 0328703 | Washer, screw hook | |
38 | 0328702 | Washer | |
39 | 0316355 | But, carburetor mounting | This part replaces 0315204. |
40 | 0314098 | Washer, throttle lever | |
41 | 0320971 | Lever, spark advance | |
42 | 0314003 | Bshing, spark lever | |
43 | 0314094 | Link, throttle lever to cam | |
44 | 0389123 | Lever throttle control | |
45 | 0328737 | Washer | This part replaces 0306015. |
46 | 0328064 | Nut | |
47 | 0302290 | Washer | |
48 | 0398134 | Throttle cam | |
49 | 0330151 | Cable clamp, filter | This part replaces 0310440. |
50 | 0319253 | Fitting, c c lubrication | |
51 | 0306337 | Screw, adjustment | |
52 | 0203688 | Nut | |
53 | 0308993 | Ressort, friction d'accélération | |
54 | 0328741 | Nut, input stud | This part replaces 0304753. |
55 | 0328702 | Washer | |
56 | 0305650 | Cotter pin | |
57 | 0314125 | Bushing, shift handle linkage rod | |
58 | 0316101 | Screw, advance | |
59 | 0320536 | Stop, idle adjsutment | |
60 | 0312316 | Capscrew, mounting brkt | |
61 | 0395448 | Ball socket assy | |
62 | 0328737 | Washer | This part replaces 0306015. |
63 | 0335359 | Gasket, cylinder head | This part replaces 0327795. |
64 | 0325602 | Cylinder head | |
64 | 0325603 | Cylinder head | |
65 | 0312708 | Bushing | |
66 | 0329890 | Clip,throttle shaft | |
67 | 0314099 | Rondelle, vis, pignon de distribution | |
68 | 0330143 | Stud, ground | |
69 | 0308825 | Screw roller | |
70 | 0314416 | Bumber, advance screw | |
71 | 0397018 | Yoke thumbwheel | |
72 | 0305513 | Screw | |
73 | 0332142 | Link, lever to cam | |
74 | 0330941 | Pin, retainer | |
75 | 0553766 | Bow washer | |
76 | 0318197 | Pin, link | |
77 | 0315081 | Bushing, shoulder screw | |
78 | 0386686 | Switch temp | |
79 | 0303806 | Tubing | |
80 | 0130524 | Screw, frame to c case | |
81 | 0396832 | Shift lever | |
82 | 0310439 | Clamp, battery cable | |
83 | 0318384 | Washer, shoulder screw | |
84 | 0330151 | Cable clamp, filter | This part replaces 0310440. |
85 | 0396831 | Lever shift rod | |
86 | 0327832 | Link, shift lever | |
87 | 0320302 | Bushing, laink to lever | |
88 | 0393697 | Shift lever bushing pkg. | |
89 | 0321281 | Bushing, shift lever | |
90 | 0328701 | Lockwasher, double ended bolt | |
91 | 0303701 | Lock washer, adjustment screw | |
92 | 0326023 | Lift bracket | |
93 | 0314002 | Bushing | |
94 | 0321886 | Elbow | |
95 | 0327721 | Hose, elbow to tee | |
96 | 0311375 | Nut | This part replaces 0316659. |
97 | 0318660 | Bumper, screw, throttle stop | |
98 | 0331329 | Bracket, idle speed | |
99 | 0308993 | Ressort, friction d'accélération | |
100 | 0328699 | Lever, spark control | |
101 | 0328740 | Nut, throttle friction | |
102 | 0319590 | Screw, plate 3 8 16 x .75 | |
103 | 0330143 | Stud, ground | |
104 | 0328701 | Lockwasher, double ended bolt | |
105 | 0328740 | Nut, throttle friction | |
106 | 0303630 | Washer | |
107 | 0330057 | Screw plug | |
109 | 0306831 | Battery cable assy. | |
110 | 0331765 | Bushing rod keeper | |
111 | 0202026 | Washer, rod | |
112 | 0328734 | Bow washer | |
114 | 0310442 | Clamp, tps lead |
