EVINRUDE-JOHNSON 309204 Gasket

Write a Review
$3.62
SKU:
309204
Schematic Object Key:
69

EVINRUDE-JOHNSON 309204 Gasket

$3.62

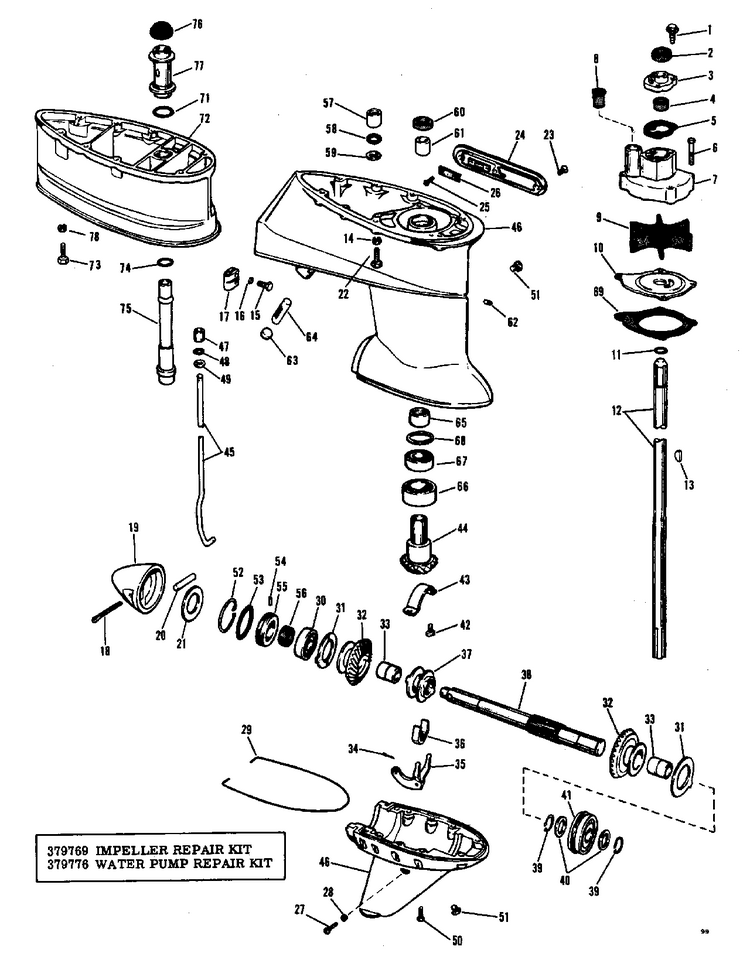

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 309204 Gasket

Schematic Object Key : 69

Product Description: Gasket

Category: EVINRUDE / 1968 / 65 / 65852B 1968 / GEARCASE GROUP - HEAVY DUTY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0305756 Screw, clamp to motor
2 0305762 Seal ring
3 0305754 Cover, impeller housing
4 0308073 Seal, impeller housing
5 0305755 Gasket, cover, imp.hsg.
6 0305514 Screw, rectifier mounting
7 0381436 Impeller housing and grommet assembly
8 0381437 .grommet, o ring and tag assy.
9 0377992 Impeller
10 0305434 Plate, impeller housing
11 0326649 O ring This part replaces 0553127.
12 0311088 Gasket
13 0308928 .key, impeller 5 inch longer parts
14 0306470 Lock washer
15 0304024 Screw
16 0301551 Washer, lock
17 0303794 Connector
18 0305511 Pin, cotter, propeller nut
19 0305400 Nut, propeller
20 0305500 Pin, drive, propeller
21 0305498 Washer, thrust, propeller
22 0306503 Screw, adjustment rod
0379990 0379990 Gearcase assembly, less drive shaft pump
23 0305143 Screw, by pass cover
24 0305453 Cover, water by pass
25 0305452 Screen
26 0305451 Screen
27 0305277 Pin, pivot, lever
28 0304083 Washer, pivot pin
29 SEAL, Gearcase halves
30 0377141 Bearing, rear
31 0305141 Washer, thrust, gears
32 0305317 Gear, forward reverse
33 0305180 Bushing, gear
34 0306406 Cotter pin, pivot pin
35 0305719 Lever, shifter
36 0305272 Cradle, clutch dog
37 0305315 Dog, clutch, shifter
38 0311062 Shaft, propeller
39 0305160 Retaining ring
40 0305159 Washer, thrust, front
41 0377134 Bearing, front
42 0303311 Scr,clamp,eng cable
43 0305147 Support, driveshaft
44 0305313 Gear, pinion
45 0305499 Rod, shift, lower
46 0379989 Gearcase bearing assy., upper lower
47 0307054 Bushing, shift rod
48 0305242 O ring
49 0305512 Gasket, shift rod
50 0330562 Screw, gearcase This part replaces 0304070.
51 0307551 Screw
0311598 0311598 Seal
52 0305558 Ring, retaining
53 0305276 "o" ring, gearcase
54 0300611 . dowel, bearing
55 0305071 Housing, oil retainer
56 0305158 Retainer, oil
57 0305468 Bushing, water tube
58 0305146 "o" ring, water tube
59 0305142 Washer, bushing
60 0305149 Retainer, oil
61 0305437 Bushing, driveshaft
62 0305074 Plug, gearcase
63 0305073 Plug, water intake
64 0305072 Screen, water intake
65 0386765 Bearing assy, rear This part replaces 0377132.
66 0377133 Bearing, pinion, lower
67 0377658 Bearing, thrust, pinion
68 0306287 Shim, .006"
68 0306288 Shim, .008"
68 0306289 Shim, .010"
68 0306290 Shim, .012"
68 0306291 Shim, .0135"
68 0306292 Shim, .015"
69 0309204 Gasket
0311738 0311738 Tube, water inlet, long 5 inch longer parts
0305535 0305535 Tube, water outlet, long 5 inch longer parts
0380549 0380549 Extension kit assy. 5 inch longer parts
12 0311089 Shaft, drive, long 5 inch longer parts
15 0304024 Screw
16 0301551 Washer, lock
17 0304081 Connector 5 " extension kit
71 0307239 "o" ring, extension tube 5 inch longer parts
72 0307179 Extension, gearcase 5 inch longer parts
73 0306503 Screw, adjustment rod
74 0326649 O ring This part replaces 0553127.
75 0306563 Extension, water tube 5 inch longer parts
76 0305760 Grommet
77 0307240 Tube, extension 5 inch longer parts
78 0306470 Lock washer
