EVINRUDE-JOHNSON 309433 TERMINAL C=5

Write a Review
$11.49
SKU:
309433
Schematic Object Key:
50

EVINRUDE-JOHNSON 309433 TERMINAL C=5

$11.49

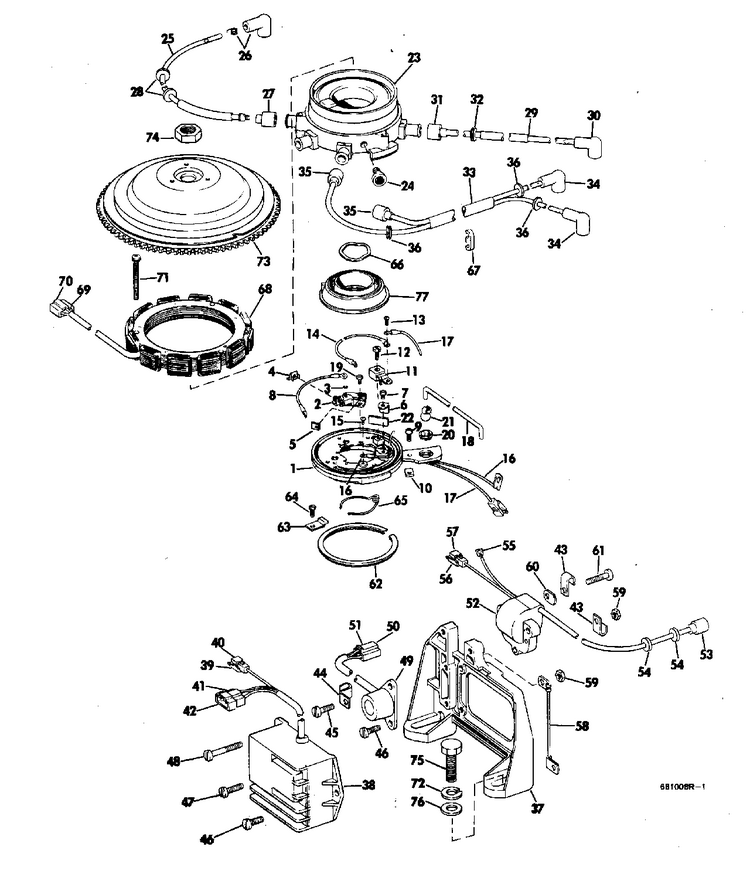

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 309433 Borne

Schematic Object Key : 50

Product Description: Borne

Category: EVINRUDE / 1968 / 85 / 85892A 1968 / DISTRIBUTOR GROUP ELECTRIC SHIFT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0382476 0382476 Distributor base assy., complete
1 0382750 Base plate assembly
2 0383655 Breaker assembly
3 0203363 Retainer
4 0315062 Clip, contact retainer
5 0315069 Nut, breaker
6 0313585 Clip
7 0329594 Screw, cam follower This part replaces 0303737.
8 0580692 Breaker lead assy
9 0306158 Screw, clamp
10 0313674 Clamp leads
11 0382495 Contact assembly
12 0307466 Scres, bowl to body
13 0314471 Screw
14 0580691 Lead assembly
15 0314474 Screw
16 0580694 Lead assembly, ground
17 0580693 Lead assembly, primary
18 0313738 Rod, spark advance
19 0312811 Screw breaker to base
20 0395448 Ball socket assy This part replaces 0313700.
21 0395448 Ball socket assy This part replaces 0313703.
22 0510377 Oiler wick
23 0382480 Dist. cap and screen assy
24 0382583 ,vent housing assy
25 0382591 Lead assembly 1
26 0580339 Cover terminal assy, coil
27 0313586 Conver, h. t. lead
28 0551426 Gormmet
29 0382592 Lead assembly 3
30 0580339 Cover terminal assy, coil
31 0313586 Conver, h. t. lead
32 0551426 Gormmet
33 0382593 Lead ass., 2, 4
34 0580339 Cover terminal assy, coil
35 0313586 Conver, h. t. lead
36 0551426 Gormmet
37 0313836 Bracket, amplifier
38 0389549 Fuel conn., hose primer bulb ay. This part replaces 0382579.
39 0310572 ,housing, connector
40 0310680 . terminal
41 0313113 Connecteur
42 0825886 Terminal This part replaces 0510541.
43 0310441 Clamp, small
44 0330151 Cable clamp, filter This part replaces 0309041.
45 0303699 Screw
46 0304607 Pulse pack screw assy
47 0304992 Screw
48 0313742 Connector
49 0580705 Housing rectifier and lead assy
50 0309433 Borne
51 0309474 . . . connector
52 0580688 Coil yoke assembly
53 0313586 Conver, h. t. lead
54 0551426 Gormmet
55 0510767 Ring terminal
56 0310572 ,housing, connector
57 0310680 . terminal
58 0580711 Lead assembly, ground
59 0328740 Nut, throttle friction This part replaces 0306375.
60 0313727 Clip
61 0309405 Screw
62 0313666 Ret., distributor base 1
63 0313668 Clamp, dist.base
64 0302812 Screw, ground terminal
65 0313743 Ring, reverse cut off
66 0313667 Spr, washer, flywheel to rotor
67 0310445 Retainer
68 0580725 Stator assy., 15 amp
69 0510471 Connector
70 0510469 Tab
71 0313740 Screw, starter and distributor
72 0307108 Lockwasher
73 0580685 Flywheel ring gear
74 0329267 Nut, flywheel This part replaces 0314209.
75 0310896 Screw
76 0121025 Clip,contact retainer
77 0382424 Rotor
