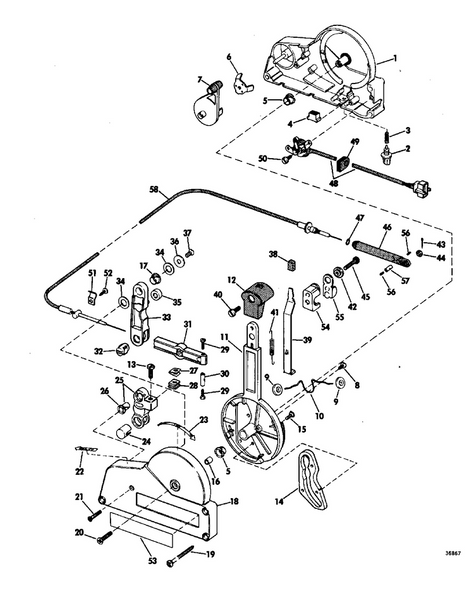

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 36
Product Description: Washer, Link
Category: STERN DRIVE / 1968 / 185 / KUE-16C 1968 / REMOTE CONTOL GROUP ELECTRIC SHIFT
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
0380505 | 0380505 | Remote control assembly,less throttle and | |
1 | 0380506 | Housing pin, lever half | |
2 | 0309060 | Screw, throttle friction | |
3 | 0308514 | Spring, throttle friction detent | |
4 | 0308515 | Detent, throttle friction | |
5 | 0308532 | Bague, levier de verrouillage | |
6 | 0310699 | Spring, idle lever | |
7 | 0310700 | Lever, idle adjustment | |
8 | 0309072 | Screw, detent spring, up. throt. cable anchr | |
9 | 0308517 | Roller, lever to box | |
10 | 0308513 | Spring, roller | |
11 | 0311622 | Lever, control housing | |
12 | 0311617 | Knob, lever | |
13 | 0313776 | Screw, knob to link | |
14 | 0310745 | Cam, lever | |
15 | 0310747 | Screw, cam to lever | |
16 | 0308530 | Spacer, control housing | |
17 | 0310691 | Bushing, lever | |
18 | 0311016 | Housing, cable hald | |
19 | 0308056 | Screw | |
20 | 0308527 | . screw, access cover to housing | |
21 | 0308518 | Screw, control housing | |
22 | 0309983 | Transfer, idle adjustment | |
23 | 0308526 | Tranfer,shift housing | |
24 | 0308511 | Pin, lock, cable to link | |
25 | 0379874 | Spacer brushing link assembly | |
26 | 0311015 | Bushing, pawl | |
27 | 0308045 | Spring, idle stop | |
28 | 0308051 | Retainer | |
29 | 0173506 | Screw | This part replaces 0308037. |
30 | 0173506 | Screw | This part replaces 0308036. |
31 | 0308034 | Guide, casing | |
32 | 0308035 | Insert, casing guide | |
33 | 0379650 | Link | |
34 | 0310689 | Washer, casing guide link | |
35 | 0310693 | ,roller,throttle lever | |
36 | 0310690 | Washer, link | |
37 | 0310692 | Screw, link to housing | |
38 | 0311618 | Cap | |
39 | 0311619 | Lever | |
40 | 0311621 | Screw, housing to housing | |
41 | 0311620 | ,spring, locking lever | |
42 | 0310688 | Sapcer, anchor block | |
43 | 0305650 | Cotter pin | |
44 | 0303887 | Washeer, pin to swivel bracket | |
45 | 0308238 | Scerw,anchor block | |
46 | 0385956 | Guide o ring assy. | This part replaces 0377850. |
47 | 0307063 | O ring | |
48 | 0384006 | Switch spacer assy | This part replaces 0379526. |
49 | 0307994 | .grommet | |
50 | 0308519 | Screw | |
51 | 0120001 | Clamp, hose | |
52 | 0310115 | Screw, mounting | |
53 | 0309985 | Transfer | |
53 | 0310617 | Transfer johnson | |
54 | 0310685 | Abchor blcok, trunnion | |
55 | 0310687 | Detent spring, anchor block | |
56 | 0303317 | Screw | |
57 | 0385958 | Clamp sc r.,casing guide | This part replaces 0303219. |
58 | THROTTLE CABLE ASSY.,5 ft thru 50 ft. | ||
58 | 0377372 | 12 feet long life cables | |
58 | 0377373 | 13 feet long life cables | |
58 | 0377374 | 14 feet long life cables | |
58 | 0377375 | 15 feet long life cables | |
58 | 0377376 | 16 feet long life cables | |
58 | 0377377 | 17 feet long life cables | |
58 | 0377378 | 18 feet long life cables | |
58 | 0377379 | 19 feet long life cables | |
58 | 0377380 | 20 feet long life cables |
