EVINRUDE-JOHNSON 310741 Seal, Housing To Cover

Write a Review
$1.25
SKU:
310741
Schematic Object Key:
78

EVINRUDE-JOHNSON 310741 Seal, Housing To Cover

$1.25

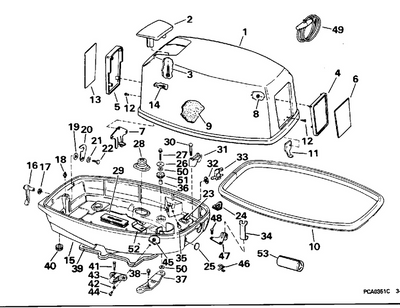

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 310741 Seal, Housing To Cover

Schematic Object Key : 78

Product Description: Seal, Housing To Cover

Category: EVINRUDE / 1968 / 85 / 85892A 1968 / EXHAUST COVER GROUP ELECTRIC SHIFT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0305513 Screw
2 0343600 Washer, screw, pulley This part replaces 0305273.
3 0305637 Thrust washer,top
4 0305638 Thrust washer,bottom
5 0377227 Pivot shaft bushing
6 0381427 Swivel bracket assy
7 0321467 . oil retainer This part replaces 0303804.
8 0377135 Bearing, gearcase
9 0313607 Lube fitting
10 0307763 Retainer, shock abs.
11 0307764 Washer, inner
12 0381440 Cable, release, lock
13 0382069 Cover, exh.hsg., front
14 0305405 Plate, cover, exh.hsg.
15 0305396 Gasket, cover plate
16 0303397 Screw, cover plate
17 0312455 Bolt,throttle lever retainer
18 0310742 Pin, steering friction
19 0305275 Plug button, eexhaust cover
20 0343600 Washer, screw, pulley This part replaces 0305273.
21 0382060 Cover, exhaust housing, rear
22 0313076 Screw
23 0328694 Screw, bracket This part replaces 0310861.
24 0307226 Bolt, tilting
25 0313669 Screw, lower mount
26 0305684 Washer, bushing
27 0305686 Bushing, tilting shaft
28 0305642 Spirng, reverse lock 5 inch longer parts
29 0313671 Lever, reverse locking
30 0381302 Mount, rubber, upper side
31 0308695 Pin, manual lever
32 0307408 Spring
33 0312463 Lever, manual, rev.lock
34 0305635 Link, reverse lock
35 0305157 Rod, reverse lock
36 0305401 Screw, cable to conn.
37 0300721 Washer, cable connector
38 0328741 Nut, input stud This part replaces 0304753.
39 0307511 Connector, cable to rod
40 0307224 Washer, inner, shock abs.
41 0127386 Rondelle This part replaces 0303913.
42 0305155 Spring, tilting shaft
43 0305590 Nut, tilting bolt
44 0307068 Spring thrust rod
45 0383568 Thrust rod retainer This part replaces 0377930.
46 0307245 Lock, trailer
47 0313670 Stern bracket, stbd.
48 0552906 Cotter pin, upper pivot
49 0307536 Washer, lock to bracket
50 0307275 Detent pin, trailer lock
51 0300327 Spring, detent
52 0309705 Screw This part replaces 0307155.
53 0307276 Handle, trailer lock
54 0306503 Screw, adjustment rod
55 0301250 Rondelle
56 0379148 Shock absorber assy
57 0377954 Mount, shock absorber
58 0307225 Washer, pin, shock abs.
59 0303347 "o" ring, lower bearing
60 0302804 Cotter in
61 0307229 Pin, pivot, brackets
62 0306376 Cotter pin
63 0306285 Pin, cotter, reverse lock rod
0278847 0278847 Transom mount kit
64 0387482 Clamp assembly, port This part replaces 0278848.
65 0307222 . pin, lockbolt
66 0307236 . lockbolt, bracket
67 0326329 . lockwasher This part replaces 0307237.
68 0387483 Clamp assy, starboard incl items 7,8, and 9 This part replaces 0278849.
69 0363254 Nut, stern bracket screw This part replaces 0307407.
70 0363012 Screw, bracket mounting This part replaces 0313327.
71 0307238 Rondelle
72 0320248 Rondelle, écrou This part replaces 0312910.
73 0305847 Washer, cable connector
74 0304222 Collar
75 0304221 Scew,collar to cable
76 0551113 Ressort de friction de direction
77 0312978 Screen, ground plt to intmd hsg
78 0310741 Seal, housing to cover
79 0302290 Washer
80 0328741 Nut, input stud This part replaces 0304753.
81 0324579 Screw This part replaces 0312709.
