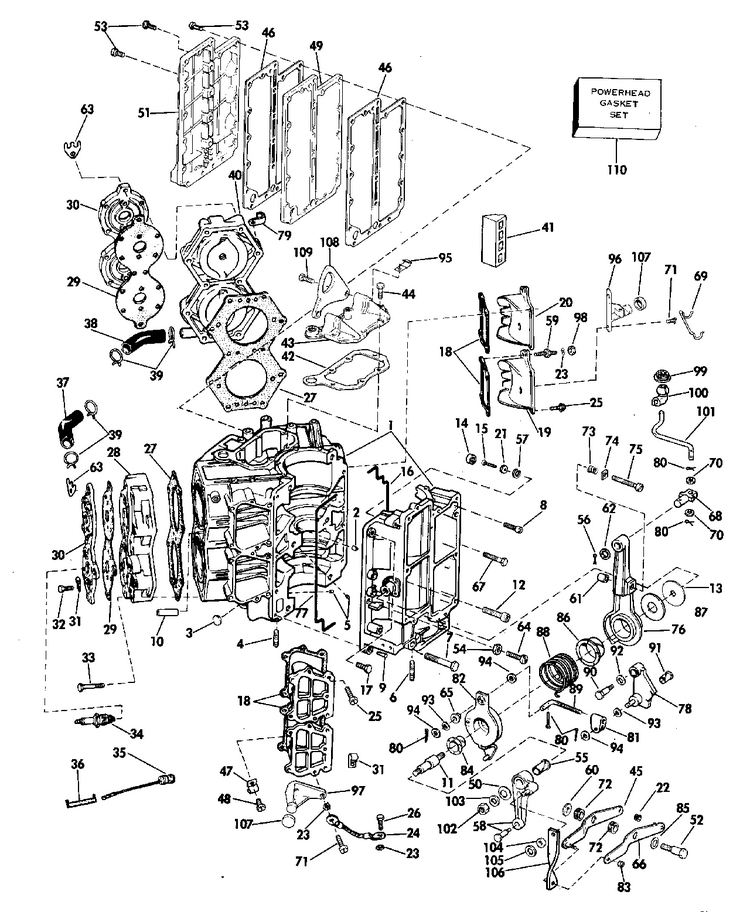

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 6
Product Description: Stud
Category: JOHNSON / 1977 / 115 / 115ETL77 1977 / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0386070 | Cylinder c'case assy. | |
1 | 0388526 | Cylinder c'case assy.,115hp | |
2 | 0304178 | Pin, dowel | |
3 | 0310221 | Core plug | |
4 | 0314969 | Stud | |
5 | 0310507 | Plug | |
6 | 0310872 | Stud | |
7 | 0308752 | Screw, main brg. upper lower | |
8 | 0318907 | Screw, c'case to cyl top | |
9 | 0305070 | Axe, carter moteur vers bloc | |
10 | 0322411 | Deflector, water pass | |
11 | 0318558 | Stud, throttle lever | |
12 | 0319592 | Scerw,cyl.to c'case,center | |
13 | 0318562 | Washer, stud | |
14 | 0314416 | Bumber, advance screw | |
15 | 0334218 | Screw, spark adjustment | This part replaces 0316286. |
16 | 0314964 | Seal, cyl, to c'case | |
17 | 0300646 | Screw, clamp, fuel filter | |
18 | 0307133 | Gasket | |
19 | 0310532 | Cover by pass | |
20 | 0323045 | Cover, by pass | This part replaces 0311240. |
21 | 0328741 | Nut, input stud | This part replaces 0304753. |
22 | 0318590 | Bushig,bellcrank rod | |
23 | 0328701 | Lockwasher, double ended bolt | This part replaces 0303480. |
24 | 0376349 | Lead, ground | |
25 | 0306049 | Screw | |
26 | 0908158 | Screw, anode | This part replaces 0305284. |
27 | 0318662 | Gasket, cyl. head 85 hp | |
27 | 0318358 | Gasket, cyl. head | |
28 | 0318332 | Cylinder head, stbd | |
28 | 0326503 | Cylinder head, stbd., 115 only | This part replaces 0322215. |
29 | 0318335 | Cover, cylinder head | |
30 | 0318333 | Cover, cylinder head | |
31 | 0309040 | Clamp, exhaust cover | |
32 | 0306409 | Screw, anchor block lower | |
33 | 0307267 | Screw | |
34 | 0386941 | Spark plub,champion l77j4 | |
34 | 0386939 | Park plug,ac m40ffx | |
35 | 0386686 | Switch temp | |
36 | 0303806 | Tubing | |
37 | 0318388 | Hose, cyl. head, stbd | |
38 | 0318387 | Hose, cyl. head port | |
39 | 0324825 | Clamp, cylinder head hose | This part replaces 0305646. |
40 | 0321898 | Cyl.head,port,85 hp | |
40 | 0321900 | Cyl.head,port,115 hp | |
41 | 0322684 | Filler block | |
42 | 0317951 | Gasket, water pass. cover | |
43 | 0318473 | Cover, water passage | |
44 | 0308742 | Screw, crankcase to cylinder | |
45 | 0385833 | Bellcrank shoulder stud assembly | |
46 | 0317914 | Gasket, exh. cover | |
47 | 0326365 | Clip, spring | This part replaces 0315197. |
48 | 0303311 | Scr,clamp,eng cable | |
49 | 0317729 | Cover, exh. inner | |
49 | 0322689 | Cover, exh. inner | |
50 | 0553766 | Bow washer | |
51 | 0317902 | Cover, exhause outer | |
52 | 0318205 | Shoulder screw, shift lever | |
53 | 0309905 | Scew,cylinder head | |
54 | 0306531 | Nut, screw throttle | |
55 | 0318208 | Bushing, shift lever | |
56 | 0120356 | Cotter pi, retainer | |
57 | 0306396 | Lock washer, control to boat | |
58 | 0385684 | Shift lever stud assy | |
59 | 0330143 | Stud, ground | This part replaces 0311328. |
60 | 0330266 | Washer, trail lock lever | This part replaces 0552993. |
61 | 0318660 | Bumper, screw, throttle stop | |
62 | 0330179 | Washer | This part replaces 0303304. |
63 | 0313774 | Retainer cyl. head cover | |
64 | 0316602 | Screw, letdown plate | |
65 | 0314125 | Bushing, shift handle linkage rod | |
66 | 0385683 | Bellcrank shldr pin assy | |
67 | 0306778 | Ecrew,exhaust cover,1 3 8"long | |
68 | 0315104 | Retainer, 3 ing. lead | |
69 | 0315182 | Clamp, cables | |
70 | 0306547 | 3.washer, mounting stud | |
71 | 0331025 | Screw | This part replaces 0308751. |
72 | 0318248 | Bushing bellcrank | |
73 | 0308993 | Ressort, friction d'accélération | |
74 | 0203688 | Nut | |
75 | 0322357 | Screw, idle adjust | |
76 | 0318561 | Lever, spark adjust | |
77 | 0319274 | Seal, cyl to c'case, stbd. | |
78 | 0395310 | Throttle cam assy. | This part replaces 0386588. |
79 | 0310928 | Clamp, steering bracket | |
80 | 0305650 | Cotter pin | |
81 | 0310524 | Yoke | |
82 | 0318207 | Bushing,shift lever | |
83 | 0328064 | Nut | This part replaces 0554427. |
84 | 0318559 | Bushing | |
85 | 0553766 | Bow washer | |
86 | 0318560 | Bushing, spark lever | |
87 | 0314098 | Washer, throttle lever | |
88 | 0314094 | Link, throttle lever to cam | |
89 | 0315107 | Link, throttle lever | |
90 | 0314136 | Screw, shift lever to bracket | |
91 | 0314137 | Nylon bushing | |
92 | 0204445 | Bow washer | |
93 | 0204757 | Bow washer | |
94 | 0302474 | Wahser,link | |
95 | 0310441 | Clamp, small | |
96 | 0319217 | Pin,clevis to shift lock | |
97 | 0319218 | Support bnrace,stbd. | |
98 | 0328740 | Nut, throttle friction | This part replaces 0301472. |
99 | 0395448 | Ball socket assy | This part replaces 0313700. |
101 | 0318402 | Rod, spare advance | |
103 | 0320397 | Washer in tiller kit .390 i.d. x .750 o.d. x 0.120 in | |
104 | 0306358 | Flat washer, helm mounting | |
105 | 0204757 | Bow washer | |
106 | 0322657 | Rod,shift lever to bellcrank | |
107 | 0313581 | Bumber, mount screw | |
108 | 0317973 | Lift bracket | |
109 | 0314515 | Screw | |
110 | 0388602 | Powerhead gasket set less cylinder head gask |
