EVINRUDE-JOHNSON 311504 Nut

Write a Review
$1.25
SKU:
311504
Schematic Object Key:
73

EVINRUDE-JOHNSON 311504 Nut

$1.25

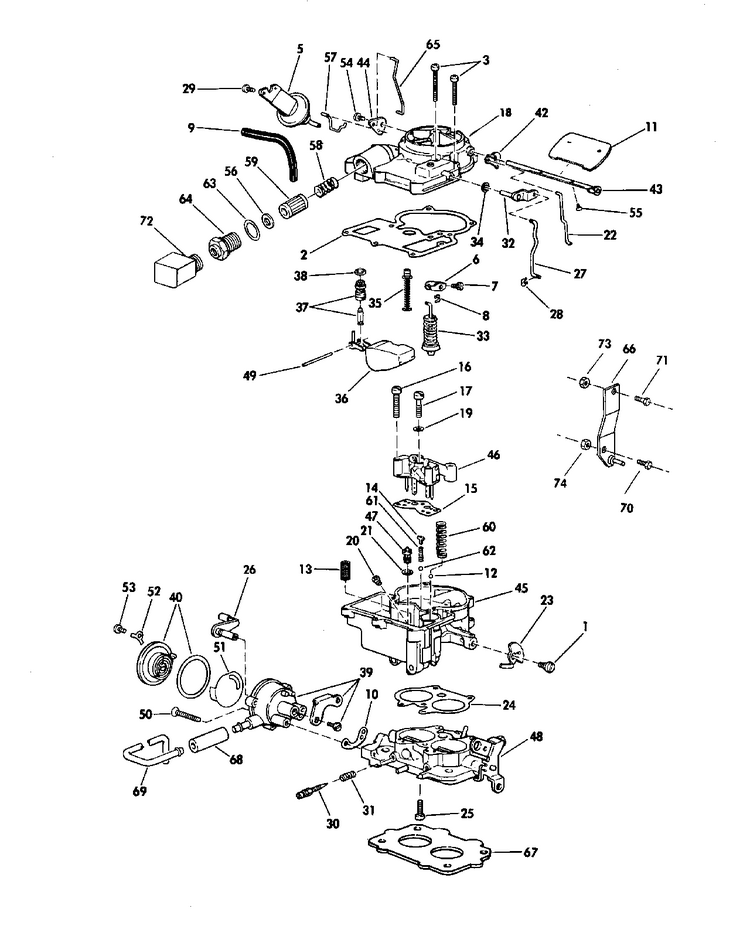

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 311504 Nut

Schematic Object Key : 73

Product Description: Nut

Category: STERN DRIVE / 1978 / 225 / 990255H 1978 / CARBURETOR GROUP 185 HP MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0981749 0981749 Carburetor assy 185 hp
1 0311751 Screw, block to bracket
2 GASKET, Air horn
3 0312416 Screw, air horn
4 0312417 Screw, air honr, short
5 0981814 Vacuum break assy
6 0312419 Lever, pump inside
7 0311661 Screw, pump lever
8 0312421 Clip, pump stem
9 0314531 Hose, vacuum
10 GASKET, Choke housing
11 0909735 Choke valve
12 BALL, Pump inlet check
13 SCREEN, Pump inlet
14 GUIDE, Pump discharge
15 GASKET, Venturi cluster
16 0909742 Screw, venturi cluster outer
17 0909743 Screw, venturi cluster center
18 AIR HORN ASSY
19 GASKET, Ctr cluster screw
20 0910035 Main metering jet
21 GASKET, Power valve 1
22 0909744 Choke rod
23 0312437 Stop, idel speed screw
24 GASKET, Throttle body
25 0312439 Screw, throttle body
26 0982181 Intermediate choke shaft
27 0909745 Pump rod
28 CLIP, Pump
29 0909733 Screw, control attaching
30 NEEDLE, Idle adjusting
31 0312445 Spring, idle needle
32 0981794 Pump shaft lever assy
33 PUMP ASSEMBLY
34 0909729 Washer, pump lever
35 0382013 Power piston assembly
36 0981813 Float assembly
37 NEEDLE & SEAT ASSY
38 GASKET, Needle seat
39 0910036 Choke housing assy
40 0981816 Therm cover gasket
41 GASKET, Thermostat cover
42 0909734 ,choke lever
43 0981815 Choke lever assy.
44 0909736 Lever intermediate choke
45 FLOAT BOWL ASSY
46 VENTURI CLUSTER ASSY
47 POWER VALVE ASSY
48 THROTTLE BODY ASSY
49 0909731 Pin, float hinge
50 0909737 Screw, choke housing
51 0909739 Baffle plate
52 0311663 Plug, expansion
53 0311661 Screw, pump lever
54 0311669 Screw, choke lever
55 0311666 Screw, choke valve
56 GASKET, Fuel filter
57 0909732 Link, vacuum break
58 0909730 Spring, fuel filter
59 0984491 Filter, fuel inlet This part replaces 0311684.
60 SPIRNG, Pump return
61 SPRING, Pump discharge
62 BALL, Pump discharge
63 GASKET, Fuel inlet nut
64 0311687 Filter nut, fuel inlet
65 0909740 Intermediate choke rod
66 0981627 Throttle lever pin
67 0909758 Gasket, caarburetor 185 hp
68 0372509 Connector, carb to head exchanger
69 0355918 Tube, heat exchanger
70 0306487 Screw
71 0310859 Bolt, throttle lever to carb
72 0310924 Clamp, main cable to adapter
73 0311504 Nut
74 3852420 Locknut, throttle lever This part replaces 0900402.
