EVINRUDE-JOHNSON 311555 Gasket, Carb To Mainifold

Write a Review
$5.49
SKU:
311555-OMC
Schematic Object Key:
50

EVINRUDE-JOHNSON 311555 Gasket, Carb To Mainifold

$5.49

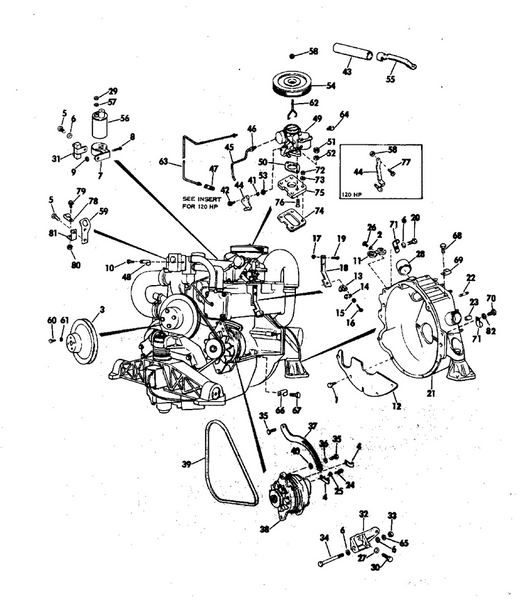

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 311555 Gasket, Carb To Mainifold

Schematic Object Key : 50

Product Description: Gasket, Carb To Mainifold

Category: STERN DRIVE / 1973 / 165 / 990210S 1973 / MISCELLANEOUS GROUP 100 & 120 HP STERN DRIVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 3852421 Screw, baffle This part replaces 0907768.
2 0306407 Locckwasher,cover latch
3 0384104 Pulley assembly This part replaces 0383932.
4 0901463 Clamp
5 0306834 Bolt, throttle lever retainer
6 0306405 Washer, c c stud nut
7 3852218 Bracket, oil cooler This part replaces 0383448.
8 0306519 Scr,coil clamp
9 0308335 Clamp, coil
10 0311415 Screw, cable clamp
11 0314823 Retainer, cable con
12 0907767 Ring guard
13 0310685 Abchor blcok, trunnion
14 0310687 Detent spring, anchor block
15 0310688 Sapcer, anchor block
16 0311084 Screw, anchor block
17 0307999 Nut
18 0907912 Manifold bracket, anchor
19 0310379 Screw
20 0908380 Screw
21 0979701 Adapter housing stud assembly
22 0314616 Stud
23 0309614 Dowel
24 0303551 Screw
25 0206421 D washer
26 0303699 Screw
27 0306405 Washer, c c stud nut
28 0908049 Cap, exh. inlet adapter, 245 hp
29 0306556 Nut, leaf screw
30 0310896 Screw
31 0981654 Ballast resistor This part replaces 0383433.
32 0907798 Alternator bracket
33 0303889 .nut
34 0311391 Scr,altnr to brkt
35 0302479 Screw, starter mounting This part replaces 0306416.
36 0306325 . . lockwasher, solenoid screw
37 0907796 Brace, alternator
38 0383443 Alternaor assy., complete
39 0311606 Belt
40 0306283 Washer, starter spindle
41 0120052 . . lockwasher, solenoid screw
42 0510338 Screw
43 0912531 Hose, cover This part replaces 0907792.
44 0979881 Throttle lever assy
44 0382747 Lever pin
45 0907797 Tube, heat exchange
45 0907922 Tube, heat exchanger
46 0306345 Nut, tube
47 0306344 Ball sleeve
48 0310928 Clamp, steering bracket
49 0979670 Carburetor assembly
49 0381668 Carburetor assembly
50 0311555 Gasket, carb to mainifold
50 0315055 Gasket, carb to adapter
51 0306353 Lkwash,brace to pump
51 0311388 Oring
52 0552938 Locking nut, 3 8 x 24
52 3852420 Locknut, throttle lever This part replaces 0900402.
53 0306531 Nut, screw throttle
54 0380358 Flame arrestor
54 0382878 Flame arrestor
55 0314058 Connector
55 0310890 Stud, flame arrestor
56 3852217 Coil assy. ignition This part replaces 0383444.
57 0550757 L'washer,coil term
58 3852420 Locknut, throttle lever This part replaces 0900402.
59 0311111 Lift bracket
60 0306861 Screw
61 0306325 . . lockwasher, solenoid screw
62 0311549 Bail, flame arrestor
63 0979885 Fuel line, pump
63 0979773 Fuel line, pump to carb
64 0310924 Clamp, main cable to adapter
65 0309336 L'washer, alternator to bracket
66 0310928 Clamp, steering bracket
67 0311415 Screw, cable clamp
68 0303311 Scr,clamp,eng cable
69 0310439 Clamp, battery cable
70 0312178 Screw
71 0310928 Clamp, steering bracket
72 0306422 Nut
73 0311388 Oring
74 0907914 Gasket, carburetor adapter to manifold
75 0907913 Adapter, carb to manifold
76 0907915 Screw, adapter plate to carb
77 0306461 Screw, steering arm
78 0908605 Bracket, clamp
79 0328724 Screw This part replaces 0312889.
80 0311375 Nut This part replaces 0316659.
81 3852427 Clamp, fuel line to bracket This part replaces 0907852.
82 0306025 Lock washer
