EVINRUDE-JOHNSON 312139 Screw, Bracket

Write a Review
$1.25
SKU:
312139
Schematic Object Key:
6

EVINRUDE-JOHNSON 312139 Screw, Bracket

$1.25

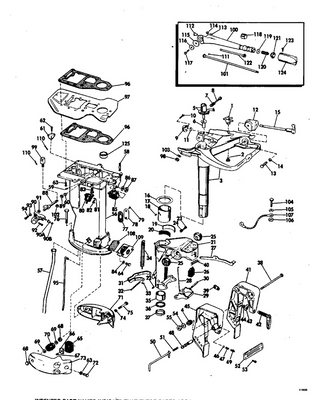

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 312139 Screw, Bracket

Schematic Object Key : 6

Product Description: Screw, Bracket

Category: EVINRUDE / 1972 / 9.5 / 9223M 1972 / EXHAUST HOUSING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0383512 Lower cover assembly, port
2 0307256 Fitting, lubrication
3 0312977 Bow washer, link to lever
4 0312894 Lock pin
5 0309405 Screw
6 0312139 Screw, bracket
7 0312943 Screw, adjust., interlock arm
8 0329894 Screw This part replaces 0302510.
9 0309670 Spring, handle stop
10 0312074 Stop, steering handle
11 0381615 Steering handle assy
12 0325074 Bushing This part replaces 0305100.
13 0312687 Wahser,bushing
14 0381613 Gear and shaft, handle
15 0203260 Plate throttle control
16 0386266 Grip plate This part replaces 0204188.
17 0310303 1
18 0312069 Bushing, handle to bracket
19 0380892 Knob, idle adjustent
20 0302288 Bolt
21 0310054 Bow washer, knob to bracket
22 0309671 Bushing, handle to cover
23 0380880 Rack and link, throttle
24 0307235 Bow washer, arm to link
25 0312942 Link, pivot to interlock arm
26 0203949 E ring link
27 0310055 Washer, control mounting
28 0312078 Retaining ring, knob
29 0310053 Screw, interlock arm
30 0310073 Hook, lower motor cover
31 0328724 Screw This part replaces 0312889.
32 0328703 Washer, screw hook This part replaces 0304051.
33 0312241 Screw, electrical bracket
34 0312184 Handle, latch
35 0330252 Hook, front and rear cover This part replaces 0312185.
36 0553766 Bow washer
37 0310091 Cap, upper pivot shaft
38 0309618 Screw, cap to cover
39 0309771 Gasket, exh. hsg. to cyl.
40 0312140 Screw, bracket
41 0330151 Cable clamp, filter This part replaces 0309846.
42 0309088 Screw, clamp to cover
43 0309830 Hose, exhasut
44 0324825 Clamp, cylinder head hose This part replaces 0305646.
45 0553769 Bushing
46 0301656 Spring
47 0303252 Wahser, grip spring
48 0309707 Rubber mount, lower rear
49 0309817 Screw, lower motor cover
50 0309819 Lockwasher
51 0310075 Screw, lower pivot shaft
52 0310094 Nut, pivot shaft screw
53 0311440 Screw, impeller plate to ext.
54 0311440 Screw, impeller plate to ext.
55 0315087 Screw, motor cover
56 0309643 Washer, nut, side mount
57 0303890 Acorn nut, lower side mount
58 0383506 Lower cover assy., stbd
59 0307256 Fitting, lubrication
60 0312977 Bow washer, link to lever
61 0312894 Lock pin
62 0312068 Screw, idle adjsutment
63 0310220 Retainer, short. switch leads
64 0379334 Shift lever shaft
65 0309770 Bearing, shift lever
66 0309747 Clevis, shift rod adjustment
67 0385040 Link, bushing clevis to rod
68 0317162 Bushing, link
69 0309768 Pin, clevis to link
70 0309871 Bracket, shift shaft
71 0310062 Lever, reverse lock
72 0310052 Screw, detent
73 0329241 Washer This part replaces 0306482.
74 0300646 Screw, clamp, fuel filter
75 0303886 Lockwasher
76 0305650 Cotter pin
77 0381280 Exh. hsg., boot plt. assy
78 0309631 Boot, shift rod
79 0309636 Plate
80 0309637 Screw, plate
81 0309661 Shift rod, upper
82 0309818 Guide, shift rod
83 0309386 Seal, shift rod
84 0380964 Rubber mount, upper side
85 0312241 Screw, electrical bracket
86 0309980 Ring, pilot
87 0312211 Seal, exhaust housing
88 0310037 Clamp, seal
89 0310766 Retainer, seal
90 0311084 Screw, anchor block
91 0308824 Nut
92 0309698 Rubber mount
93 0380965 Rubber mount, lower front
94 0312164 Sprig,cable to cover
95 0380966 Bracket and fuel connector assembly
96 0313607 Lube fitting
97 0303597 Nipple, fuel connector
98 0303603 Guide pin, connector
99 0309750 Washer, spring
100 0381862 Inter lock arm and pin
101 0303282 Block
