EVINRUDE-JOHNSON 312486 Retainer, Felt Washer

Write a Review
$1.25
SKU:
312486
Schematic Object Key:
29

EVINRUDE-JOHNSON 312486 Retainer, Felt Washer

$1.25

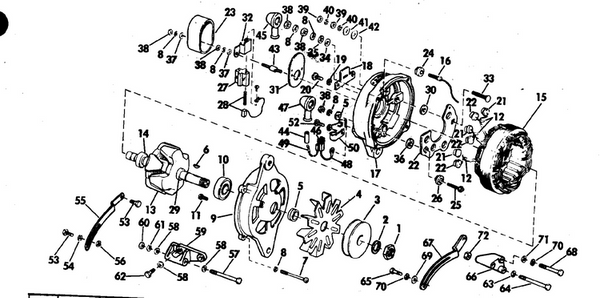

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 312486 Retainer, Felt Washer

Schematic Object Key : 29

Product Description: Retainer, Felt Washer

Category: STERN DRIVE / 1977 / 140 / 990237E1 1977 / ALTERNATOR & BRACKET GROUP 120,140,175,190,235

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0981187 0981187 Alternator assembly
1 0982275 Nut l'washer assy This part replaces 0311311.
2 0982275 Nut l'washer assy This part replaces 0311316.
3 0311312 Pulley, drive
4 0312485 Fan, ventilating
5 0312487 Retainer, felt washer
6 0311315 Key, rotor shaft
7 0980184 Thru bolt package
8 0120052 . . lockwasher, solenoid screw
9 0381468 Hd assy, drive end
10 0380207 . bearing assy, drive end
111 0304608 . screw, retainer
12 0382009 Evelet package
13 0981182 Rotor bearing assy
14 0383900 . slip ring bearing package
15 0382003 Rectifier,positive
16 STUD, Field terminal
17 0981183 Hd assy, slip ring end
18 INSULATION, Slip ring end
19 LOCKWASHER, Insulation #10
20 SCREW, Insulation, #10-32
21 0980294 . rect set, neg
22 0383897 Pl rect assy, pos
23 0909127 Cover, slip ring
24 BUSHING, Insulator, field terminal
25 STUD, Auxiliary termianl
26 BUSHING, Insulator, auxiliary terminal
27 0382005 Br hldrs assy
28 0980084 . brush set
29 0312486 Retainer, felt washer
30 BUSHING, Insu., btry term.
31 0310347 Plate, back up, bursh holder
32 COVER, Brush holder
33 STUD, Battery terminal
34 WASHER, Insulated, field term.
35 WASHER, Plain, field & aux. term.
36 WASHER, Insul, aux term
37 0030657 Washer, mounting stud
38 0309485 Écrou, vis, rotule
39 NUT, Batter terminal, 1/4-28
40 LOCKWASHER, Battery terminal, 1/4"
41 WASHER, Plain, btry term
42 WASHER, Ins, btry term
43 0909174 Stud, cover slip ring
44 0314936 Heat shrink
45 0314902 . cover, terminal
46 0383432 Fuse lead assembly
47 0314902 . cover, terminal
48 0312037 Terminal
49 0314844 Knife disconnect
50 0901463 Clamp
51 0206421 D washer
52 0303551 Screw
53 0302479 Screw, starter mounting This part replaces 0306416.
54 0306325 . . lockwasher, solenoid screw
55 0907796 Brace, alternator
56 0306283 Washer, starter spindle
57 0311391 Scr,altnr to brkt
58 0306405 Washer, c c stud nut
59 0907798 Alternator bracket
60 0303889 .nut
61 0309336 L'washer, alternator to bracket
62 0310896 Screw
63 0309336 L'washer, alternator to bracket
64 0311391 Scr,altnr to brkt
65 0302479 Screw, starter mounting This part replaces 0306416.
66 0908744 Bracket, alternator
67 0908745 Brace, alternator
68 0114323 Screw, alternator bracket
69 0306283 Washer, starter spindle
70 0306325 . . lockwasher, solenoid screw
71 0306453 Lockwasher, fuel pump
72 0303889 .nut
