EVINRUDE-JOHNSON 313242 Retainer

Write a Review
$95.99
SKU:
313242
Schematic Object Key:
19

EVINRUDE-JOHNSON 313242 Retainer

$95.99

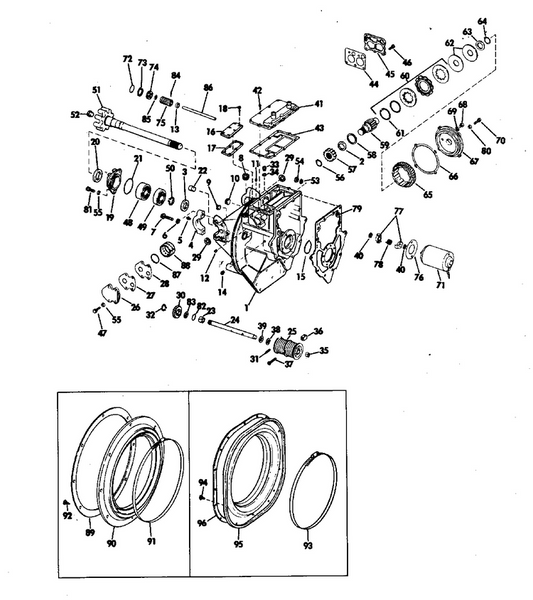

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 313242 Retainer

Schematic Object Key : 19

Product Description: Retainer

Category: STERN DRIVE / 1969 / 155 / HUFR-69M 1969 / INTERMEDIATE HOUSING GROUP 80,120,155,210 HP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0383154 Intermediate housing seal retainer
2 0321467 . oil retainer This part replaces 0303804.
3 0330137 Seal This part replaces 0310600.
4 0383148 Pivot cap assembly
5 0313607 Lube fitting
6 0307708 Lock washer, mounting This part replaces 0302865.
7 0314614 Screw, pivot cap
7 0308745 Scerw,pivot cap
8 0305124 Plug
9 0314273 Plug
10 0908276 Cap plug This part replaces 0309961.
11 0308897 Plug
12 0308898 ,plug
13 0308634 Bushing, tilt worm shaft
14 0313607 Lube fitting
15 0302337 O ring, bearing housing
16 0313247 Cover, oil reservoir
17 0313246 Gasket, cover
18 0307195 Screw rectifier mounting
0382773 0382773 Retainer seal assembly
19 0313242 Retainer
20 0309989 Oil retainer
21 0308876 O ring crankcase head lower
22 0310964 Plug
23 0308532 Bague, levier de verrouillage
24 0313237 Shaft, steering
25 0313322 Pulley, steering
26 0313264 Cover
27 0313243 Gasket
28 0313245 Plate
29 0313244 Seal
30 0908461 Gear, shaft This part replaces 0313239.
31 0313281 Spirol pin
32 0911316 Retaining ring This part replaces 0313238.
33 0313224 Plug,oil fill
34 0315189 Gasket, oil indicator
35 0308693 Bushing, front
36 0308572 Clamp
37 0308695 Pin, manual lever
38 0308879 Shim
39 0309603 Washer
40 0310612 Washer
41 0310804 Water cover
42 0307195 Screw rectifier mounting
43 0308452 Gasket, water cover
44 0305586 Gasket
45 0310684 Cover
46 0306644 Screw, rectifier mounting
47 0331025 Screw This part replaces 0308744.
48 0379593 Bearing assembly, outer
49 0377139 Bearing assy This part replaces 0379258.
50 0308629 Retaining ring
51 0383177 Driveshaft ball gear
52 0308679 Plug, expansion
53 0306453 Lockwasher, fuel pump
54 0313457 Nut, adapter stud
54 0306320 Nut
55 0302290 Washer
56 0911318 Retaining ring This part replaces 0308633.
57 0308453 Gear
58 0308800 Thrust washer
59 0982593 Shaft, tilt clutch This part replaces 0314651.
59 0308807 Shaft
60 0380561 Clutch disc shim pkg
61 0308804 . retaining ring
62 0308809 Belleville spring
63 0309845 Spacer
64 0309844 Retaining ring
65 0308806 Worm wheel
66 0308799 Gasket
67 0908564 Cover This part replaces 0308798.
68 0307551 Screw
69 0311598 Seal
70 0308743 Screw, injector to manifold
71 0382138 Power piston assy
72 0302540 "o" ring, carbon
73 0308632 Retaining ring
74 0308631 Retainer bearing
75 0908168 Worm This part replaces 0308725.
76 0311508 Gasket
77 0980274 Coupling key This part replaces 0379594.
78 0309267 Spring
79 0314199 Gasket
80 0306396 Lock washer, control to boat
81 0308707 Screw
82 0326649 O ring This part replaces 0553127.
83 0308697 Washer
84 0309525 Pin, tilt worm shaft
85 0309272 Washer
86 0980183 Shaft, tilt worm This part replaces 0310613.
87 0308626 O ring
88 0308602 Liner
0381104 0381104 Transom seal assembly, round opening
89 0308455 Ring, transom seal
90 0308456 Seal
91 0308735 Clamp, seal
92 0325539 Screw, sceen to gearcase This part replaces 0312270.
0382068 0382068 Transom seal assembly, oval opening
93 0308735 Clamp, seal
94 0325539 Screw, sceen to gearcase This part replaces 0312270.
95 0313080 Seal
96 0313081 Plate, transom seal
