Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 26
Product Description: Cover

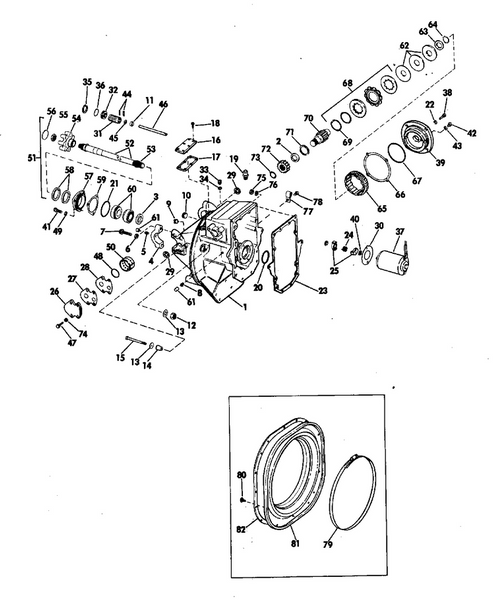

Category: STERN DRIVE / 1974 / 120 / 990215R 1974 / INTERMEDIATE HOUSING GROUP - 120,140,165,170,190,225,245 HP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0980731 | Intermediate housing | This part replaces 0980676. |
1 | 0980731 | Intermediate housing | This part replaces 0980590. |
2 | 0321467 | . oil retainer | This part replaces 0303804. |
3 | 0313992 | Oil retainer, shaft | |
4 | 0383148 | Pivot cap assembly | |
5 | 0313607 | Lube fitting | |
6 | 0307708 | Lock washer, mounting | This part replaces 0302865. |
7 | 0314614 | Screw, pivot cap | |
8 | 0313607 | Lube fitting | |
9 | 0314273 | Plug | |
10 | 0908276 | Cap plug | This part replaces 0309961. |
11 | 0308634 | Bushing, tilt worm shaft | |
12 | 3852420 | Locknut, throttle lever | This part replaces 0900402. |
13 | 0310055 | Washer, control mounting | |
14 | 0908387 | Plug | |
15 | 0318803 | Screw | |
16 | 0313247 | Cover, oil reservoir | |
17 | 0313246 | Gasket, cover | |
18 | 0307195 | Screw rectifier mounting | |
19 | 0316521 | Nipple, housing | |
19 | 0908196 | Nipple | |
20 | 0302337 | O ring, bearing housing | |
21 | 0908383 | O ring, retainer | |
22 | 0306396 | Lock washer, control to boat | |
23 | 0909515 | Gasket | This part replaces 0316493. |
24 | 0309267 | Spring | |
25 | 0980274 | Coupling key | |
26 | 0313264 | Cover | |
27 | 0316499 | Gasket | |
28 | 0316498 | Plate, cover | |
29 | 0313244 | Seal | |
30 | 0311508 | Gasket | |
31 | 0908168 | Worm | |
32 | 0980182 | Retainer bushing | |
33 | 0313224 | Plug,oil fill | |
34 | 0315189 | Gasket, oil indicator | |
35 | 0308632 | Retaining ring | |
36 | 0302540 | "o" ring, carbon | |
37 | 0382138 | Power piston assy | |
38 | 0308743 | Screw, injector to manifold | |
39 | 0908564 | Cover | |
40 | 0310612 | Washer | |
41 | 0316534 | . screw, hsg. to gearcase | This part replaces 0908001. |
42 | 0307551 | Screw | |
43 | 0311598 | Seal | |
44 | 0309525 | Pin, tilt worm shaft | |
45 | 0309272 | Washer | |
46 | 0980183 | Shaft, tilt worm | |
47 | 0331025 | Screw | This part replaces 0308744. |
48 | 0308626 | O ring | |
49 | 0306470 | Lock washer | |
50 | 0308602 | Liner | |
51 | 0980039 | Drivershaft ball gear assy | |
51 | 0980751 | D'shaft ball gear assy | This part replaces 0980089. |
52 | 0980090 | Driveshaft seal pkg | |
52 | 0980091 | Driveshaft seal pkg | |
53 | 0908061 | Seal | |
54 | 0908063 | Ball gear | |
55 | 0908064 | Nut | |
56 | 0908062 | Plug, bail gear | |
57 | 0980478 | Retainer seal assy | |
58 | 0981195 | . seal | This part replaces 0908065. |
59 | 0908422 | Shim, seal retainer, .002 | |
59 | 0908423 | Shim, seal retainer, .003 | |
59 | 0908424 | Shim, seal retainer, .004 | |
59 | 0908425 | Shim, seal retainer, .005 | |
59 | 0908426 | Shim, seal retainer, .006 | |
59 | 0908427 | Shim, seal retainer, .007 | |
59 | 0908428 | Shim, seal retainer, .008 | |
59 | 0908429 | Shim, seal retainer, .009 | |
59 | 0908430 | Shim, seal retainer, .010 | |
60 | 3854250 | Bearing, driveshaft, upper | This part replaces 0979986. |
61 | 0908247 | Cap | |
62 | 0308809 | Belleville spring | |
63 | 0309845 | Spacer | |
64 | 0309844 | Retaining ring | |
65 | 0308806 | Worm wheel | |
66 | 0308799 | Gasket | |
67 | 0908194 | 0 ring, tilt unit cover | |
68 | 0380561 | Clutch disc shim pkg | |
69 | 0308804 | . retaining ring | |
0980292 | 0980292 | . tilt clutch shim package | |
70 | 0982593 | Shaft, tilt clutch | This part replaces 0980031. |
71 | 0308800 | Thrust washer | |
72 | 0308453 | Gear | |
73 | 0911318 | Retaining ring | This part replaces 0308633. |
74 | 0302290 | Washer | |
75 | 0313457 | Nut, adapter stud | |
76 | 0306453 | Lockwasher, fuel pump | |
77 | 0310928 | Clamp, steering bracket | |
78 | 0311415 | Screw, cable clamp | |
0382068 | 0382068 | Transom seal assembly, oval opening | |
79 | 0308735 | Clamp, seal | |
80 | 0325539 | Screw, sceen to gearcase | This part replaces 0312270. |
81 | 0313080 | Seal | |
82 | 0313081 | Plate, transom seal |
