EVINRUDE-JOHNSON 313340 "O" Ring, Drive Shaft Brg | PalmerPower
close
close
click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Boat Repair Service

    Diagnostics, Repairs, and Maintenance

  • Fast Delivery

EVINRUDE-JOHNSON 313340 O RING C=6

Write a Review
$6.99
SKU:
313340-OMC
Schematic Object Key:
41

EVINRUDE-JOHNSON 313340 O RING C=6

$6.99

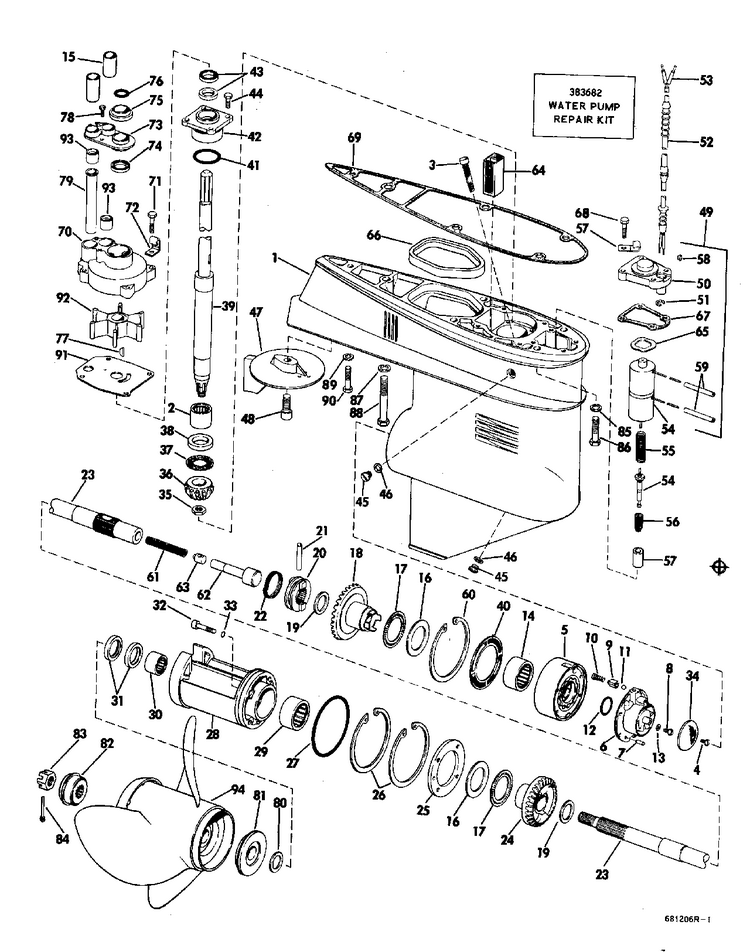

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 313340 "O" Ring, Drive Shaft Brg

Schematic Object Key : 41

Product Description: "O" Ring, Drive Shaft Brg

Category: EVINRUDE / 1968 / 55 / 55873S 1968 / GEARCASE GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0383131 0383131 Gearcase assembly, complete standard
0383132 0383132 Gearcase assembly, complete long
1 0382998 Gearcase bearing assembly
2 0382343 Bearing, pinion
3 0383104 Screen retainer
4 0314492 . screw, screen to valve hsg.
5 0383060 Oil pump assembly
6 0382956 Valve housing assy
7 0202136 . . pin, cover to gearcase
8 0307175 ,,screw ,housing
9 0314033 Guide, pump housing
11 0314035 . ball, valve shift
12 0314491 O ring
13 0120052 . . lockwasher, solenoid screw
14 0382407 Bearing assy, forward gear
15 0314081 Guide water tube
16 0313447 Thrust washer
17 0382408 Thrust bearing
18 0382310 Gear bushing assembly
19 0307079 Thrust washer, shifter dog
20 0313522 Shifter, clutch dog
21 0313448 Pin, clutch dog
22 0324369 Spring, clutch dog pin This part replaces 0313454.
23 0382584 Propeller shaft assy
24 0316522 Gear, reverse This part replaces 0382309.
25 0313453 Retainer plate, bearing housing
26 0313445 Retaining ring
27 0313446 "o" riing, brg. hsg
28 0383120 Bearing housing seal assembly
29 0382407 Bearing assy, forward gear
30 0377135 Bearing, gearcase
31 0310599 .seal, propeller shaft
32 0313291 Screw
33 0307853 O ring
34 0314195 Screen, housing
35 0313339 Nut, pinion to driveshaft
36 0313343 Pinioin available in complete gear sets only 55 60 hp 1968 71 use 397494 for 65 hp1972 use 397492, 65 70 hp 1973 75 use 397490 70 hp 1975 later use 397338
37 0382342 Thrust bearing, pinion
38 0313344 Thrust washer, pinion
39 0384425 Driveshaft assembly, standard This part replaces 0382361.
39 0384426 Driveshaft assembly, long This part replaces 0382362.
40 0383105 Ring terminal
41 0313340 "o" ring, drive shaft brg
42 0383119 Bearing housing seal assembly
43 0321466 . oil retainer, driveshaft This part replaces 0313337.
44 0304027 Screw
45 0307551 Screw
46 0311598 Seal
47 0338742 Compensateur de dérive This part replaces 0314022.
48 0313715 Screw, cap, hex hd, 7 16 14 x 1
49 0383616 Solenoid, cable and cover assembly
50 0314083 Cover, solenoid
51 0314090 . retainer
52 0383542 Cable assembly This part replaces 0382753.
53 0379645 . . connector kit
54 0580723 Solenoid assembly
55 0313959 Spring, upper
56 0510800 Spring, lower
57 0510801 Sleeve
58 0315072 Splice connector
59 0510817 Sleeve, shrink This part replaces 0315073.
60 0313511 Retaining ring, pump housing
61 0314020 Sping, propeller shaft
62 0313510 Piston
63 0313449 Retainer, clutch dog
64 0314175 Screen, water intake
65 0314126 Wave wahser, solenoid
66 0324937 Seal, gearcase to inner exh. hsg. This part replaces 0313656.
67 0314082 Gasket, cover to gearcase
68 0307151 Screw
69 0313765 Gasket, gearcase to hsg
70 0313815 Impeller housing, gearcase
71 0308820 Screw, impeller housing
72 0310441 Clamp, small
73 0383592 Cover, impeller housing
74 0321466 . oil retainer, driveshaft This part replaces 0313337.
75 0305760 Grommet
76 0326649 O ring This part replaces 0553127.
77 0308928 .key, impeller 5 inch longer parts
78 0328714 Screw, clip This part replaces 0204027.
79 0315152 Ext. water tube, imp. hsg This part replaces 0314489.
80 0313925 Thrust washer
81 0382355 Thrust bush sleeve assy
82 0314504 Spacer, prop nut
83 0314503 Nut, impeller
84 0314502 Cotter pin
85 0307708 Lock washer, mounting
86 0552968 Screw, plate 3 8 16 x 1.5
87 0306314 L'washer,scr,long
88 0313697 Scr,grc to hsg.long
89 0306470 Lock washer
90 0306503 Screw, adjustment rod
91 0313766 Plate, impeller housing
92 0382547 Impeller assembly
93 0314008 Bague, tube à eau vers capot
94 0383160 Propeller 14 x 19
94 0382761 Propeller ,14 x 11
94 0765181 Propeller This part replaces 0382762.
94 0765182 Propeller w models This part replaces 0382763.
94 0765183 Propeller, wdel models This part replaces 0382764.
94 0382765 Propeller 13 x 19
94 0382766 Prop. 12 3 4 x 21 std
