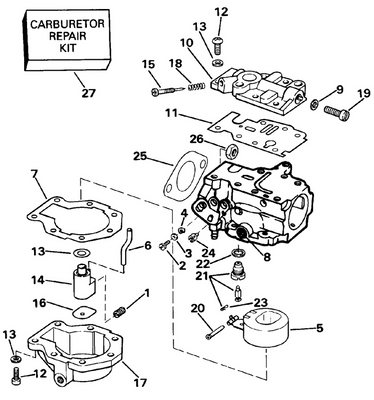

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 14
Product Description: Gasket, Cover
Category: JOHNSON / 1971 / 60 / 60ESL71E 1971 / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0304178 | Pin, dowel | |
1 | 0304178 | Pin, dowel | |
2 | 0314616 | Stud | |
3 | 0305070 | Axe, carter moteur vers bloc | |
4 | 0321164 | Plug | This part replaces 0307544. |
5 | 0300646 | Screw, clamp, fuel filter | |
6 | 0131794 | Screw, crankcase to cylinder | |
7 | 0313538 | Stud, crankcase to cylinder | |
8 | 0552938 | Locking nut, 3 8 x 24 | This part replaces 0306319. |
9 | 0300343 | Washer, crankcase to cylinder | |
10 | 0307776 | Screw, lower main bearing | |
11 | 0302288 | Bolt | |
12 | 0314100 | Bracket, safety switch | |
13 | 0315804 | Cylinder head | |
14 | 0313414 | Gasket, cover | |
15 | 0313415 | Cover, cylinder head | |
16 | 0330151 | Cable clamp, filter | This part replaces 0309322. |
17 | 0331025 | Screw | This part replaces 0308751. |
18 | 0306778 | Ecrew,exhaust cover,1 3 8"long | |
19 | 0306396 | Lock washer, control to boat | |
20 | 0305027 | Screw | |
20 | 0307267 | Screw | |
21 | 0384751 | Spark plug, campion l 77v | |
21 | 0385133 | Spark plug, v40ffm | |
22 | 0314907 | Screw, cover | |
23 | 0302471 | W.asher, plain | |
24 | 0313418 | Cover, thermostat head | |
25 | 0396987 | Thermostat seal assy. | This part replaces 0382385. |
26 | 0313416 | Gasket, thermostat | |
27 | 0313417 | Gasket, thermostat cover | |
28 | 0313404 | Gasket, exhaust cover | |
29 | 0313406 | Cover, exhaust, inner | |
30 | 0313405 | Gasket, exh. cover, inner | |
31 | 0313407 | Cover, exhaust, outer | |
32 | 0302471 | W.asher, plain | |
33 | 0330151 | Cable clamp, filter | This part replaces 0309322. |
34 | 0315071 | Screw | |
35 | 0306493 | Screw, regulator mounting | |
36 | SEAL, Cylinder to crankcase | ||
37 | 0302288 | Bolt | |
38 | 0316664 | Bracket, adjustment | |
39 | 0308993 | Ressort, friction d'accélération | |
40 | 0203688 | Nut | |
41 | 0312812 | Screw, idle adjust | |
42 | 0310441 | Clamp, small | This part replaces 0310493. |
43 | 0316285 | Lever, spark advance | |
43 | 0316665 | Lever, spark advance | |
44 | 0395448 | Ball socket assy | This part replaces 0313700. |
45 | 0395448 | Ball socket assy | This part replaces 0313703. |
46 | 0314165 | Link, spark advance | |
47 | 0394466 | Cam pin assy., throttle | This part replaces 0382776. |
48 | 0315937 | Bracket, fuel pump | |
49 | 0316355 | But, carburetor mounting | This part replaces 0315204. |
50 | 0310524 | Yoke | |
51 | 0316666 | Lever, throttle | |
52 | 0305513 | Screw | |
53 | 0314002 | Bushing | |
54 | 0309040 | Clamp, exhaust cover | |
55 | 0314003 | Bshing, spark lever | |
56 | 0314098 | Washer, throttle lever | |
57 | 0314094 | Link, throttle lever to cam | |
58 | 0329889 | Link throttle lever to cam | This part replaces 0314133. |
59 | 0314136 | Screw, shift lever to bracket | |
60 | 0314137 | Nylon bushing | |
61 | 0204445 | Bow washer | |
62 | 0204757 | Bow washer | |
63 | 0302474 | Wahser,link | |
64 | 0306488 | Lock washer, solenoid ground | |
65 | 0330143 | Stud, ground | This part replaces 0311328. |
66 | 0328740 | Nut, throttle friction | This part replaces 0306375. |
67 | 0305650 | Cotter pin | |
68 | 0302474 | Wahser,link | |
69 | 0310442 | Clamp, tps lead | |
70 | 0314125 | Bushing, shift handle linkage rod | |
71 | 0313413 | Gasket, cylinder head | |
72 | 0313773 | Retainer 1 coil cylinder head, starboard | |
73 | 0313771 | Ret.,leads | |
74 | 0378176 | Switch tem p | |
75 | 0333962 | Lift bracket | This part replaces 0315930. |
76 | 0303806 | Tubing | |
77 | 0376349 | Lead, ground | |
78 | 0306322 | Bolt, water pump | |
79 | 0307029 | Screw, hook mounting | |
80 | 0314000 | Bracket, safety switch | |
81 | 0307608 | Screw | |
82 | 0330151 | Cable clamp, filter | This part replaces 0309041. |
83 | 0307922 | Screw | |
84 | 0386056 | Safety switch assy | This part replaces 0379542. |
85 | 0310498 | Washer | |
86 | 0328741 | Nut, input stud | This part replaces 0304753. |
87 | 0314099 | Rondelle, vis, pignon de distribution | |
88 | 0314499 | Deflector, exh. cover, inner | |
89 | 0314416 | Bumber, advance screw | |
90 | 0334218 | Screw, spark adjustment | This part replaces 0316286. |
91 | 0384088 | Thermo switch assembly | |
92 | 0510780 | 8 ring termianl | |
93 | 0330151 | Cable clamp, filter | This part replaces 0309846. |
94 | 0306418 | Screw, anchor block lower | |
0383306 | 0383306 | Powerhead gasket set |
