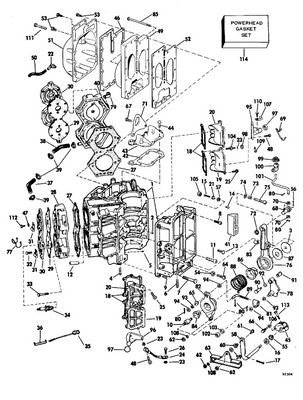

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 42
Product Description: Gasket, Water Pass Cover
Category: JOHNSON / 1972 / 100 / 100ESL72R 1972 / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0384513 | Cylinder c' case assy | |
2 | 0304178 | Pin, dowel | |
3 | 0310221 | Core plug | |
4 | 0314969 | Stud | |
5 | 0310507 | Plug | |
6 | 0310872 | Stud | |
7 | 0308752 | Screw, main brg. upper lower | |
8 | 0315405 | Screw, c' case to cyl. 1 5 8" long | |
8 | 0317926 | Screw, c' case to cyl. 2 1 4" long | |
9 | 0305070 | Axe, carter moteur vers bloc | |
10 | 0315105 | Bracket, safety switch | |
11 | 0330179 | Washer | This part replaces 0303304. |
12 | 0330151 | Cable clamp, filter | This part replaces 0309846. |
13 | 0310441 | Clamp, small | |
14 | 0314416 | Bumber, advance screw | |
15 | 0316101 | Screw, advance | |
16 | 0314964 | Seal, cyl, to c'case | |
17 | 0300646 | Screw, clamp, fuel filter | |
18 | 0307133 | Gasket | |
19 | 0310532 | Cover by pass | |
20 | 0323045 | Cover, by pass | This part replaces 0311240. |
21 | 0328741 | Nut, input stud | This part replaces 0304753. |
22 | 0311321 | Clamp, cable | |
23 | 0328701 | Lockwasher, double ended bolt | This part replaces 0303480. |
24 | 0376349 | Lead, ground | |
25 | 0306409 | Screw, anchor block lower | |
26 | 0908158 | Screw, anode | This part replaces 0305284. |
27 | 0306048 | Gasket | |
28 | 0316467 | Cylinder head, stbd | |
29 | 0318335 | Cover, cylinder head | This part replaces 0307709. |
30 | 0318333 | Cover, cylinder head | This part replaces 0315279. |
31 | 0309040 | Clamp, exhaust cover | |
32 | 0306409 | Screw, anchor block lower | |
33 | 0307267 | Screw | |
34 | 0384751 | Spark plug, campion l 77v | |
34 | 0385133 | Spark plug, v40ffm | |
35 | 0378176 | Switch tem p | |
36 | 0303806 | Tubing | |
37 | 0315645 | Hose, cyl. head stbd | |
38 | 0315644 | Hose, cyl. head port | |
39 | 0324825 | Clamp, cylinder head hose | This part replaces 0305646. |
40 | 0316466 | Cyl. head, port | |
41 | 0318334 | Gasket, cover port | This part replaces 0307257. |
42 | 0313988 | Gasket, water pass cover | |
43 | 0313964 | Cover, water passage | |
44 | 0308742 | Screw, crankcase to cylinder | |
45 | 0309330 | Screw, vacuum switch | |
46 | 0305176 | Gasket | |
47 | 0383519 | Thermo switch | |
48 | 0204038 | . . . ring terminal | |
49 | 0314849 | Cover, exh inner | |
50 | 0306831 | Battery cable assy. | |
51 | 0314864 | Cover, exh outer | |
52 | 0330151 | Cable clamp, filter | This part replaces 0309322. |
53 | 0309905 | Scew,cylinder head | |
54 | 0328712 | Ãcrou, montage instrument | This part replaces 0204046. |
55 | 0316487 | Retainer | |
56 | 0120356 | Cotter pi, retainer | |
57 | 0306396 | Lock washer, control to boat | |
58 | 0330151 | Cable clamp, filter | This part replaces 0309041. |
59 | 0330143 | Stud, ground | This part replaces 0311328. |
60 | 0315108 | Screw, adapter to c' case | |
61 | 0307922 | Screw | |
62 | 0310441 | Clamp, small | |
63 | 0313774 | Retainer cyl. head cover | |
64 | 0316602 | Screw, letdown plate | |
65 | 0314125 | Bushing, shift handle linkage rod | |
66 | 0330151 | Cable clamp, filter | This part replaces 0309322. |
67 | 0306778 | Ecrew,exhaust cover,1 3 8"long | |
68 | 0315104 | Retainer, 3 ing. lead | |
69 | 0315103 | Lift bracket, cylinder | |
70 | 0306547 | 3.washer, mounting stud | |
71 | 0314515 | Screw | |
72 | 0315127 | Retainer 3 ign. lead | |
73 | 0308993 | Ressort, friction d'accélération | |
74 | 0203688 | Nut | |
75 | 0312812 | Screw, idle adjust | |
76 | 0315109 | Lever, spark advance | |
77 | 0315106 | Rod, spark advance | |
78 | 0395310 | Throttle cam assy. | This part replaces 0383649. |
79 | 0310928 | Clamp, steering bracket | |
80 | 0305650 | Cotter pin | |
81 | 0310524 | Yoke | |
82 | 0316601 | Lever, throttle | |
83 | 0305513 | Screw | |
84 | 0314002 | Bushing | |
85 | 0314099 | Rondelle, vis, pignon de distribution | |
86 | 0314003 | Bshing, spark lever | |
87 | 0314098 | Washer, throttle lever | |
88 | 0314094 | Link, throttle lever to cam | |
89 | 0315107 | Link, throttle lever | |
90 | 0314136 | Screw, shift lever to bracket | |
91 | 0314137 | Nylon bushing | |
92 | 0204445 | Bow washer | |
93 | 0204757 | Bow washer | |
94 | 0302474 | Wahser,link | |
95 | 0386056 | Safety switch assy | This part replaces 0385295. |
96 | 0310498 | Washer | |
0384950 | 0384950 | Powerhead gasket set |
